$200.00 (NZD) excl. GST

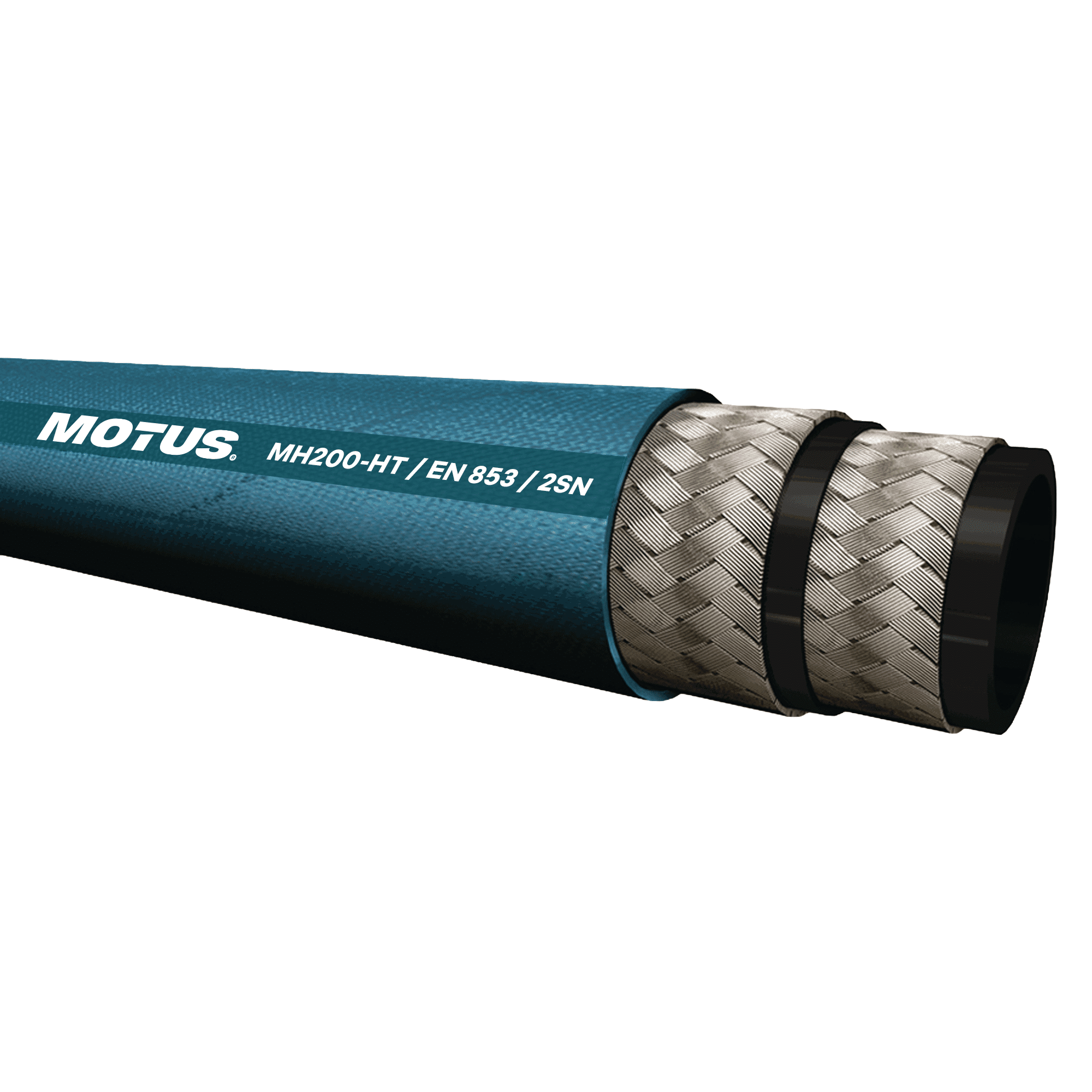

MH200-HT (2SN) Hydraulic Hose is engineered for low and medium pressure circuits exposed to extreme temperatures. It is suited to demanding environments such as foundries, compressors and mechanical engineering applications where thermal resistance is critical.
| Application | Low and medium pressure circuits with extreme temperatures (e.g. foundries, compressors), hydraulics in mechanical engineering |
| Special features | Outstanding ozone, weather, UV and temperature resistance |
| Standard | EN 853 2 SN |
| Inner layer | Oil resistant synthetic rubber |
| Insert | Two high tensile steel wire braided inserts |
| Outer layer | Synthetic rubber with high temperature, ozone and weather resistance |
| Colour | Blue |
| Temp. min. | -55 °C |
| Temp. max. | 135 °C |
| Elongation | +2% to -4% |
| Media | Mineral oil, gear oil, glycol and polyglycol, air-oil vapour, water-oil emulsion (0 °C to +100 °C) |
| Identification | DN | Size | Inches | Internal Ø min. (mm) | Internal Ø max. (mm) | Ø insert min. (mm) | Ø insert max. (mm) | External Ø max. (mm) | Working pressure (bar) | Test pressure (bar) | Burst pressure (bar) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MH204-HT | 6 | 4 | 1/4″ | 6.2 | 7.0 | 12.1 | 13.3 | 15.7 | 400 | 800 | 1600 | 100 |
| MH205-HT | 8 | 5 | 5/16″ | 7.7 | 8.5 | 13.7 | 14.9 | 17.3 | 350 | 700 | 1400 | 115 |
| MH206-HT | 10 | 6 | 3/8″ | 9.3 | 10.1 | 16.1 | 17.3 | 19.7 | 330 | 660 | 1320 | 130 |
| MH208-HT | 12 | 8 | 1/2″ | 12.3 | 13.5 | 19.0 | 20.6 | 23.0 | 275 | 550 | 1100 | 180 |
| MH210-HT | 16 | 10 | 5/8″ | 15.5 | 16.7 | 22.2 | 23.8 | 26.2 | 250 | 500 | 1000 | 200 |
| MH212-HT | 19 | 12 | 3/4″ | 18.6 | 19.8 | 26.2 | 27.8 | 30.1 | 215 | 430 | 850 | 240 |
| MH216-HT | 25 | 16 | 1″ | 25.0 | 26.4 | 34.1 | 35.7 | 38.9 | 165 | 325 | 650 | 300 |
| MH220-HT | 31 | 20 | 1 1/4″ | 31.4 | 33.0 | 43.3 | 45.7 | 49.5 | 125 | 250 | 500 | 420 |
Note: The change in length of the hose is determined at maximum working pressure during testing to EN ISO 1402.
Operation with compressed air requires a perforated outer cover.
DN = nominal diameter, nominal width.
