Suction and return hose for restricted installation spaces with embedded spring steel spiral reinforcement.
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION

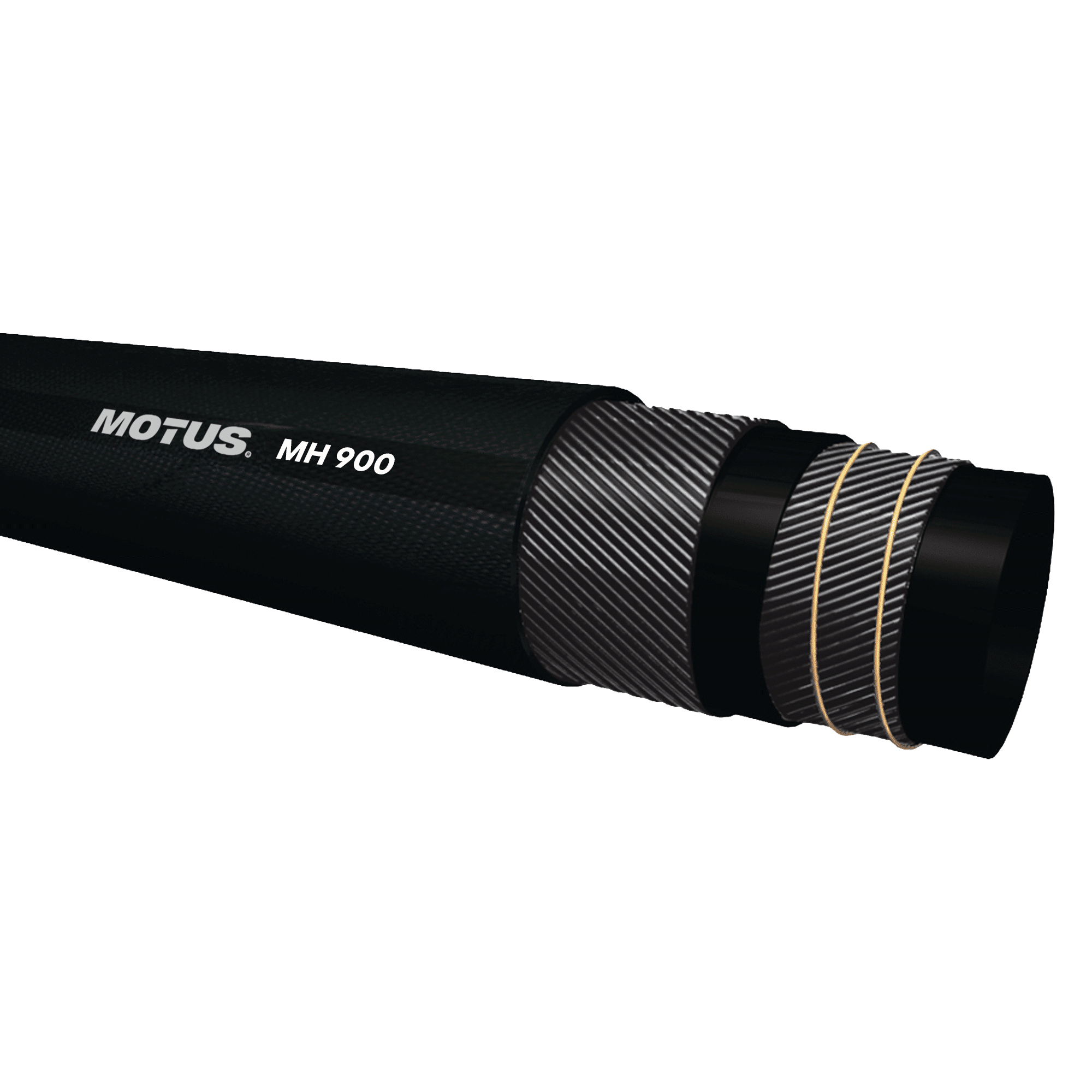

MH900 Suction Hose is designed for suction and return lines where installation space is limited. Its textile reinforcement and embedded spring steel spiral support reliable performance in demanding hydraulic systems.
| Application | Hose for suction and return lines with restricted installation space |
| Standard | Similar to SAE 100 R4 |
| Inner layer | Oil resistant synthetic rubber |
| Insert | Two high tensile textile inserts and one embedded spring steel spiral |
| Outer layer | Synthetic rubber with high ozone, abrasion and weather resistance |
| Colour | Black |
| Temp. min. | -40 °C |
| Temp. max. | 100 °C |
| Media | Mineral oil, water-glycol emulsions, water-oil emulsions |
| Identification | DN | Size | Inches | Internal Ø (mm) | External Ø (mm) | Burst pressure (bar) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|
| MH912 | 19 | 12 | 3/4″ | 19.0 | 29 | 63 | 40 |
| MH916 | 25 | 16 | 1″ | 25.4 | 35 | 51 | 55 |
| MH920 | 31 | 20 | 1.1/4″ | 32.0 | 42 | 42 | 70 |
| MH924 | 38 | 24 | 1.1/2″ | 38.0 | 50 | 30 | 80 |
| MH932 | 51 | 32 | 2″ | 50.8 | 62 | 30 | 100 |
| MH940 | 63 | 40 | 2.1/2″ | 63.5 | 75 | 30 | 170 |
| MH948 | 76 | 48 | 3″ | 76.2 | 88 | 30 | 225 |
Note: The recommended flow velocity for media in suction hoses is a maximum 1 m/s.
Burst pressure: safety factor = 3 : 1.
DN = nominal diameter, nominal width.
Catalogue page: 18
