Two-wire braided EN 857 2SC hydraulic hose with smooth cover and small bend radius.
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION

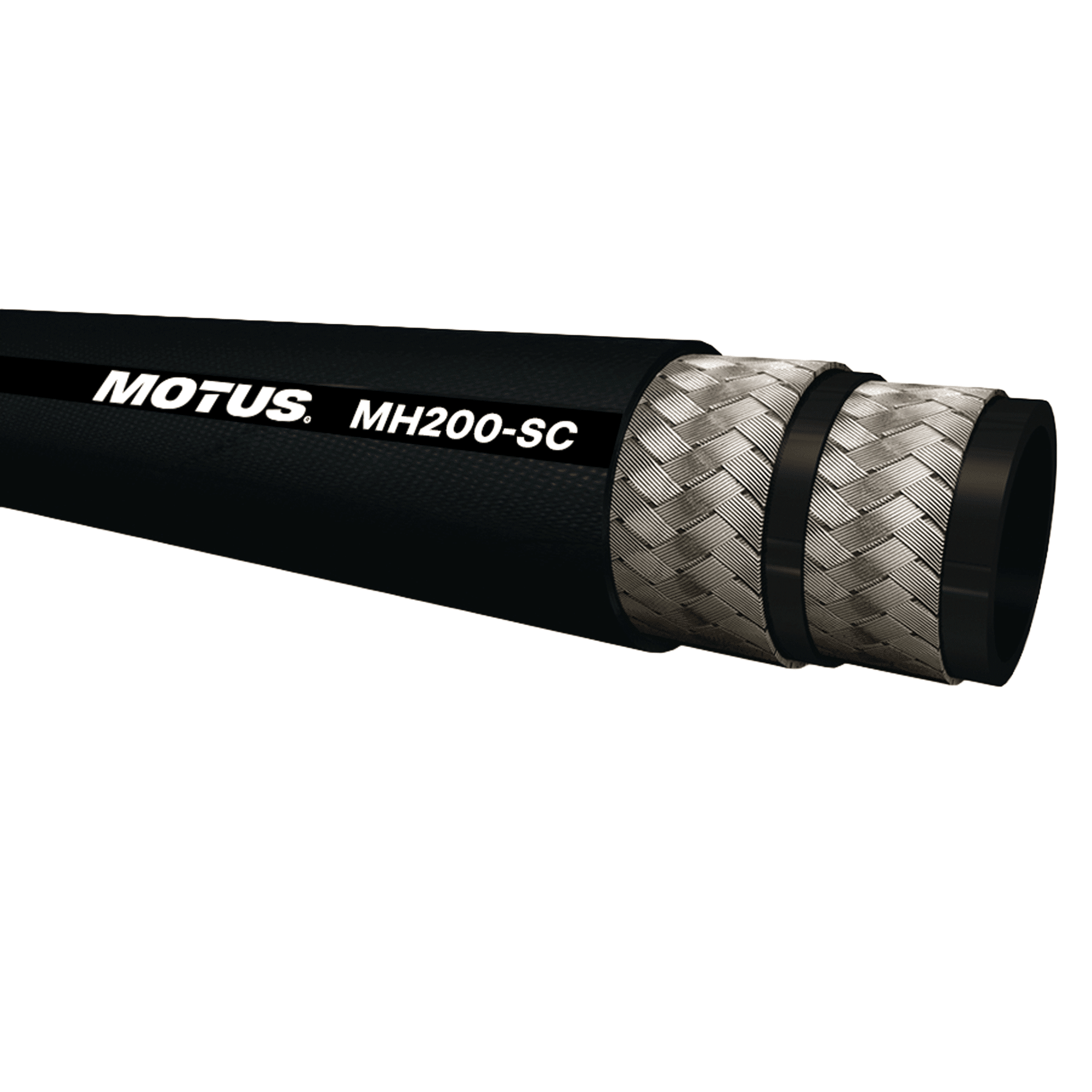

MH200-SC Hydraulic Hose is a two-wire braided EN 857 2SC hose with a smooth cover and small bend radius. It is designed for medium pressure circuits with restricted installation spaces.
| Inner tube | Oil resistant, synthetic rubber |
| Reinforcement | Two high-tensile steel wire braids |
| Cover | Oil resistant and weatherproof synthetic rubber smooth cover
Flame-retardant according to MSHA |
| Application | Medium pressure circuits with restricted installation spaces |
| Colour | Black |
| Elongation | +2% to -4% |
| Media | Mineral oil, poly-glycol based oil, water (0 °C to +70 °C), water-oil-emulsions |
| Special features | Small bend radius |
| Standard | EN 857 2SC |
| Temp. max. | 100 °C |
| Temp. min. | -40 °C |
| Identification | DN | Inch | Size | Inside Ø min. (mm) | Inside Ø max. (mm) | Working pressure (bar) | Ø reinforcement min. (mm) | Ø reinforcement max. (mm) | Outside Ø max. (mm) | Test pressure (bar) | Bend radius min. (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MH204-SC | 6 | 1/4″ | 4 | 6.4 | 6.9 | 400 | 10.6 | 11.7 | 14.2 | 800 | 75 |
| MH205-SC | 8 | 5/16″ | 5 | 7.9 | 8.5 | 350 | 12.1 | 13.3 | 16.0 | 700 | 85 |
| MH206-SC | 10 | 3/8″ | 6 | 9.5 | 10.1 | 330 | 14.4 | 15.6 | 18.3 | 660 | 90 |
| MH208-SC | 12 | 1/2″ | 8 | 12.7 | 13.5 | 275 | 17.5 | 19.1 | 21.5 | 550 | 130 |
| MH210-SC | 16 | 5/8″ | 10 | 15.8 | 16.7 | 250 | 20.5 | 22.3 | 24.7 | 500 | 170 |
| MH212-SC | 19 | 3/4″ | 12 | 18.8 | 19.8 | 215 | 24.6 | 26.4 | 28.6 | 430 | 200 |
| MH216-SC | 25 | 1″ | 16 | 25.4 | 26.4 | 165 | 32.5 | 34.3 | 36.6 | 330 | 250 |
Note: The change in length of the hose is determined at maximum working pressure during testing according to EN ISO 1402.
DN = nominal diameter, nominal width.
Catalogue page: 24
Two-wire braided EN 857 2SC hydraulic hose with smooth cover and small bend radius.
Check the hose size, working pressure, temperature range, media compatibility and minimum bend radius against your application.
