Four-spiral hydraulic hose built to ISO 18752-CC for high-flexibility, high-pressure applications.
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION

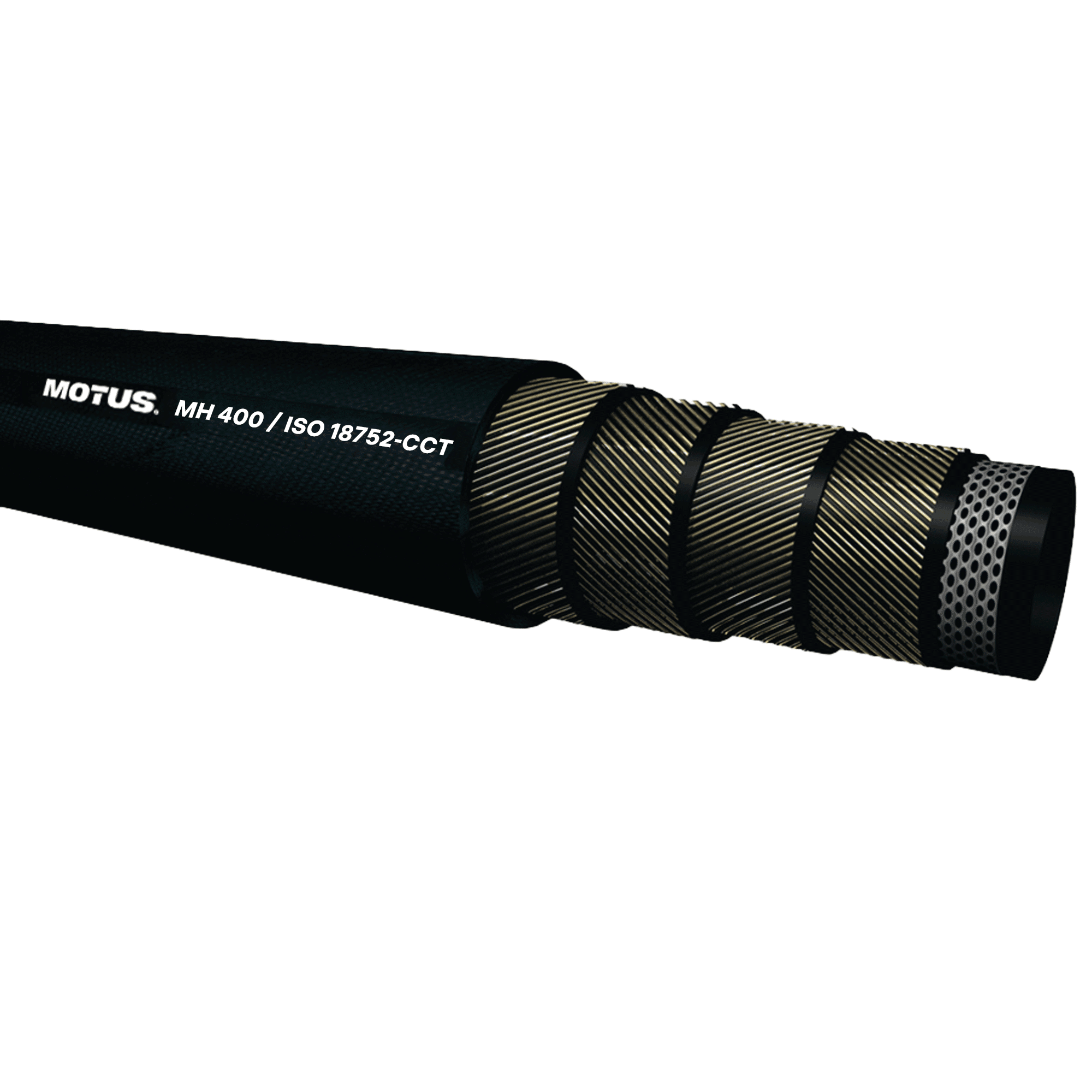

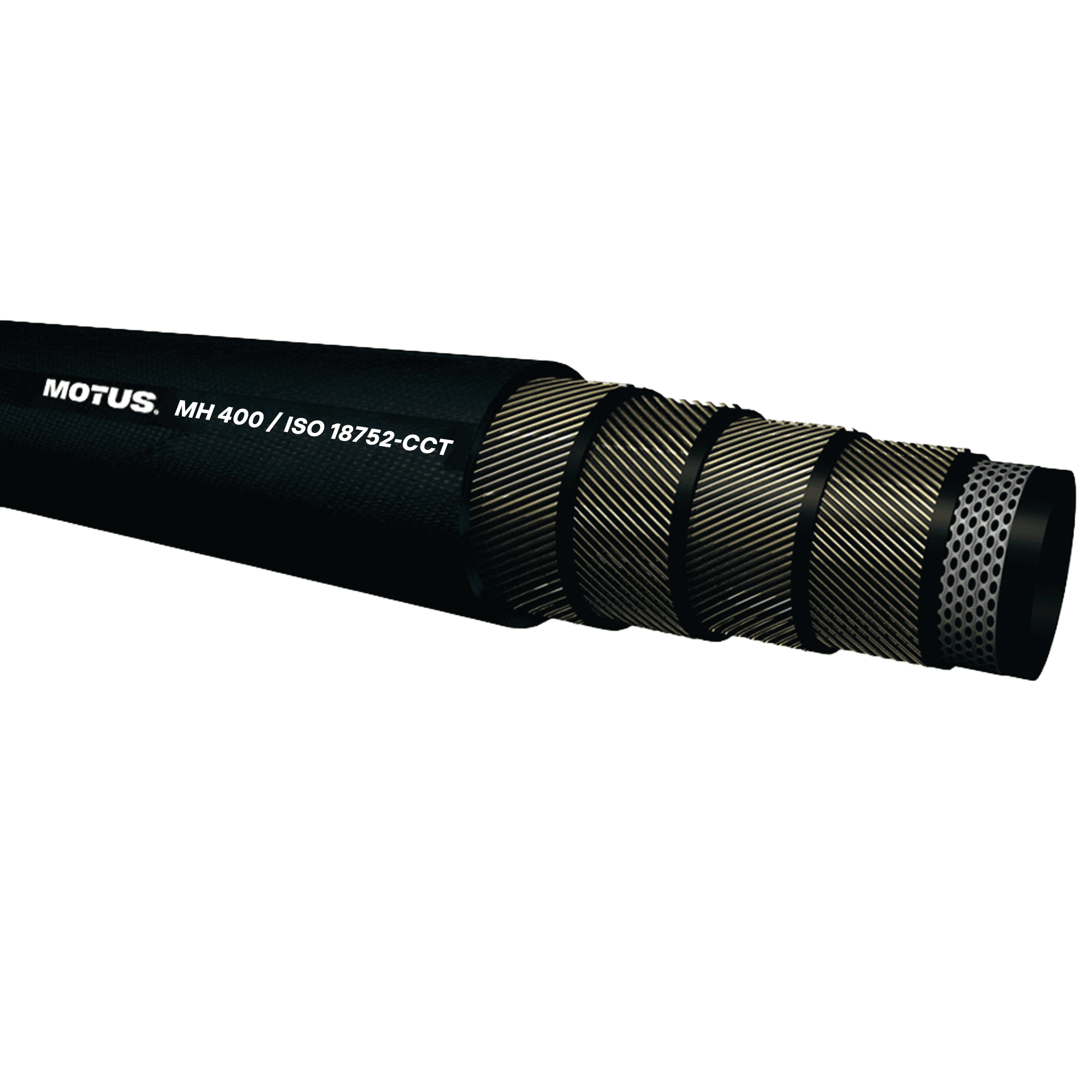

MH400 Spiral Hydraulic Hose is a four-spiral hose built to ISO 18752-CC. It is exceptionally flexible, abrasion resistant and suitable for demanding high-pressure hydraulic applications where a small bend radius is important.
| Inner tube | Oil resistant, synthetic rubber |
| Reinforcement | Four spirals of high-tensile steel wire |
| Cover | Flame-retardant according to MSHA; synthetic rubber with high ozone, abrasion and weather resistance |
| Colour | Black |
| Media | Mineral oil; glycol; water-glycol emulsions; water (0 °C to +70 °C) |
| Special features | Exceptionally flexible; small bend radius; abrasion and ozone resistant; weatherproof; 500,000 cycles impulse tested |
| Standard | ISO 18752 – CC |
| Temp. max. | 121 °C |
| Temp. min. | -40 °C |
| Identification | DN | Inch | Size | Inside Ø (mm) | Test pressure (bar) | Weight per m (kg) | Working pressure (bar) | Outside Ø (mm) | Burst pressure (bar) | Bend radius min. (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MH406 | 10 | 3/8″ | 6 | 9.9 | 890 | 0.7 | 445 | 20.2 | 1780 | 65 |
| MH408 | 12 | 1/2″ | 8 | 13 | 840 | 0.85 | 420 | 22.9 | 1680 | 90 |
| MH410 | 16 | 5/8″ | 10 | 16.4 | 840 | 1.04 | 420 | 26.5 | 1680 | 100 |
| MH412 | 19 | 3/4″ | 12 | 19.5 | 760 | 1.43 | 380 | 30.5 | 1520 | 120 |
| MH416 | 25 | 1″ | 16 | 26 | 700 | 2.2 | 350 | 37.9 | 1400 | 150 |
| MH420 | 31 | 1.1/4″ | 20 | 32.5 | 700 | 2.58 | 350 | 45.9 | 1400 | 280 |
DN = nominal diameter, nominal width.
Catalogue page: 14
Four-spiral hydraulic hose built to ISO 18752-CC for high-flexibility, high-pressure applications.
Check the hose size, working pressure, temperature range, media compatibility and minimum bend radius against your application.
