Single-wire braided hydraulic hose exceeding EN 857 1SC with higher working pressure and a smaller bend radius.
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION

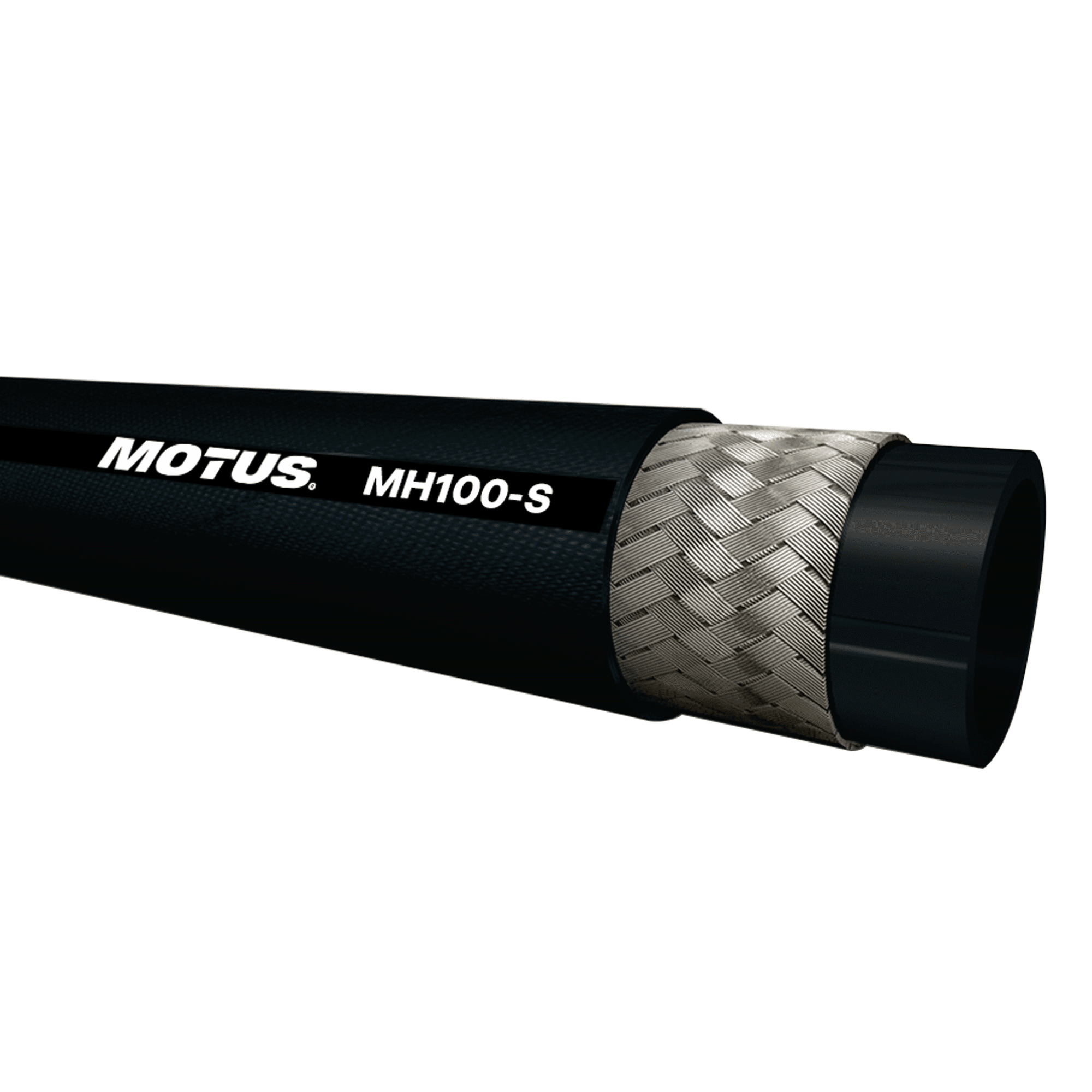

MH100-S Hydraulic Hose is a single-wire braided hose built for higher working pressures and a smaller bend radius. It exceeds EN 857 1SC and is impulse tested with up to 1 million cycles.
| Inner tube | Oil resistant, synthetic rubber |
| Reinforcement | One high-tensile steel wire braid |
| Cover | Oil resistant and weatherproof synthetic rubber
Flame-retardant according to MSHA |
| Application | Medium pressure circuits with restricted installation spaces |
| Colour | Black |
| Media | Glycol, water-oil-emulsions, water (0 °C to +70 °C), mineral oil |
| Special features | Impulse tested with up to 1 million cycles |
| Standard | Exceeds EN 857 1SC |
| Temp. max. | 100 °C |
| Temp. min. | -40 °C |
| Identification | DN | Inch | Size | Inside Ø (mm) | Outside Ø (mm) | Working pressure (bar) | Ø reinforcement (mm) | Test pressure (bar) | Burst pressure (bar) | Bend radius min. (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MH104-S | 6 | 1/4″ | 4 | 6.6 | 12 | 290 | 10.1 | 580 | 1160 | 40 |
| MH105-S | 8 | 5/16″ | 5 | 8.3 | 13.6 | 250 | 11.4 | 500 | 1000 | 55 |
| MH106-S | 10 | 3/8″ | 6 | 9.9 | 15.9 | 230 | 13.6 | 460 | 920 | 65 |
| MH108-S | 12 | 1/2″ | 8 | 13 | 19.2 | 210 | 16.9 | 420 | 840 | 80 |
| MH110-S | 16 | 5/8″ | 10 | 16.4 | 22.3 | 150 | 20.3 | 300 | 600 | 105 |
| MH112-S | 19 | 3/4″ | 12 | 19.5 | 26.1 | 125 | 23.9 | 250 | 500 | 120 |
| MH116-S | 25 | 1″ | 16 | 26 | 33.1 | 110 | 31 | 220 | 440 | 160 |
| MH120-S | 31 | 1.1/4″ | 20 | 32.5 | 43.7 | 100 | 40.2 | 200 | 400 | 300 |
DN = nominal diameter, nominal width.
Catalogue page: 21
Single-wire braided hydraulic hose exceeding EN 857 1SC with higher working pressure and a smaller bend radius.
Check the hose size, working pressure, temperature range, media compatibility and minimum bend radius against your application.
