Ultra Cylinders
Our Ultra series of 4000 psi hydraulic cylinders is a combination of quality componentry coupled with clever design. The Ultra range comes as an off-the-shelf cylinder for overnight shipping and a quick turnaround to keep you working. If you're unsure what cylinder will suit you best, contact our team for help.
A key factor in the development of our Ultra range was reliability for customers operating in harsh working environments. Our externally threaded cap design paired with a robust heavy-duty seal combination gives the Ultra exceptional strength.
Rated to a continuous operating pressure of 4000 psi and a safety rating of 3:1, the Motus Ultra represents outstanding performance and value for money. Try it for yourself and experience the Motus difference.
and Waste Management
Features
Added Rigidity for Ultimate Performance
- Ports
Ports are fully machined from solid bar for heavy duty durability.
- Barrel
Hydraulic cylinder tubing. Very high quality internal bore finish for maximum seal life and minimum leakage.
- Head/Gland
3D/U400 high grade close grain cast iron, designed tough to endure operating shock and loading.
- Gland Cap
1045 grade threaded cap for added rigidity and strength.
- Shaft
Available in 1045 grade hard chrome and 4140 calibre high tensile bar for increased strength and durability for more demanding applications.
- Piston
11/2” – 31/2” bore
1040 steel 1 piece piston, internally threaded for high strength.
4” – 6” bore
Steel two-piece piston with positive locking nut creating optimum strength.
- Seals
Ultra-tough heavy duty category seals.
Piston seals
5 piece heavy duty unit seal rated to 4000psi, including anti extrusion and wear rings. No metal to metal contact.
Shaft seal
Premium quality polyurethane pressure seal for long life usage.
Wiper seal
Heavy duty polyurethane wiper scraper.
Outer head/gland seal
Static sealing O-ring with contoured face back up ring.
ULTRA (Threaded Cap) Range – 4000 psi hydraulic cylinders
We developed ultra-threaded cap design cylinders to meet customer demand.
Our customers wanted:
- Added rigidity
- 4000 psi capable cylinders
- Extra durability in harsh conditions
The Ultra range provides continuous, reliable performance in environments like waste management and construction. They’re affordable and available with short lead times.
Standard mounting options
Sizes
| Model | Cap (OD) | Cylinder Bore | Bore Options | Shaft Options |
|---|---|---|---|---|
|
2.5" Ultra |
88.9mm |
|

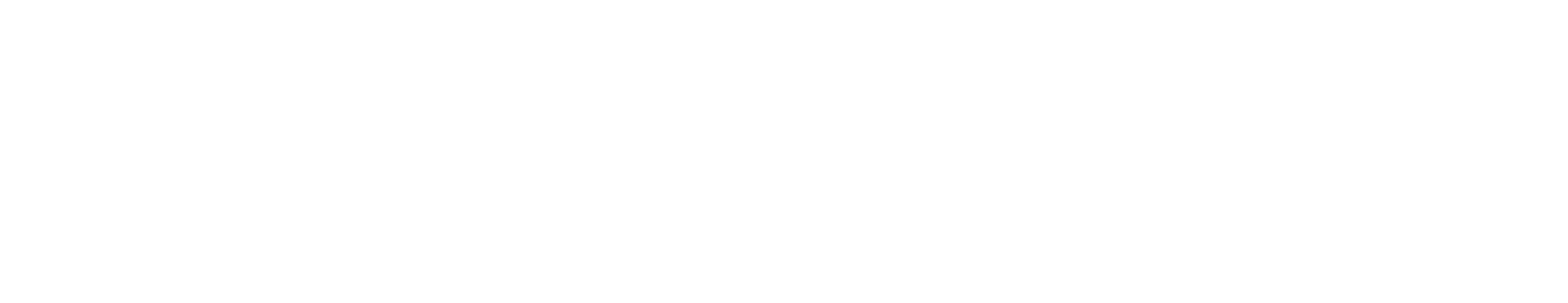

2.5" Bore, 1/4" Wall • 1.25" Shaft
(Tube O.D 76.2mm) |
• 1.25" Shaft
• 1.50" Shaft |
|
3" Ultra |
101.4mm |
|
3” Bore, 5/16” Wall
(Tube O.D 92.06mm) |
• X1.5" Shaft
• X1.75" Shaft
• X2" Shaft |
|
3.5" Ultra |
118mm |
|

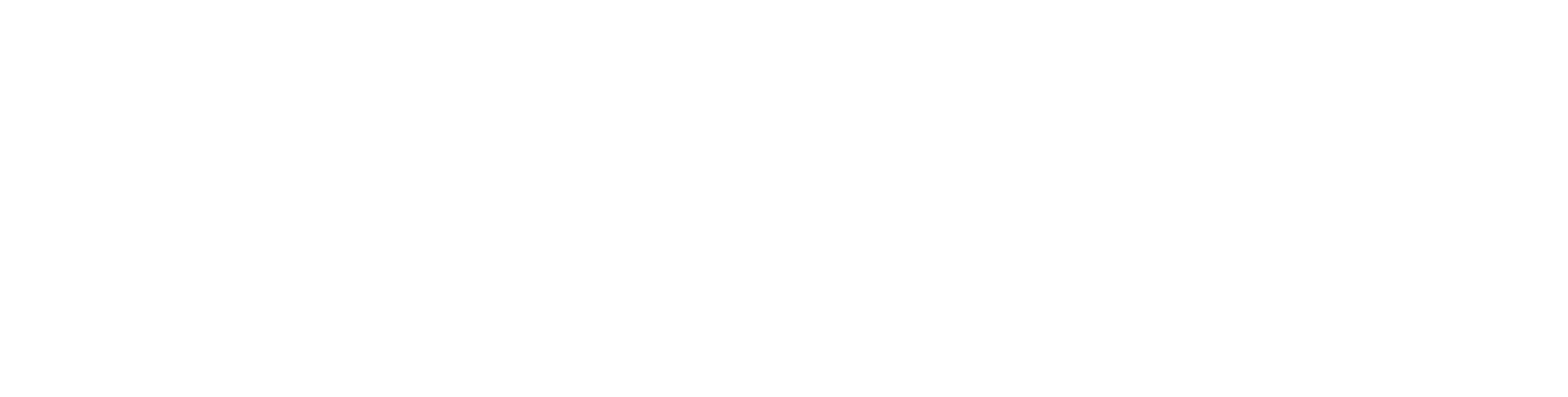

3.5” Bore, 5/16” Wall
(Tube O.D 104.76mm) |
• X1.75" Shaft
• X2" Shaft |
|
4" Ultra |
132mm |
|
4” Bore, 5/16” Wall
(Tube O.D 118mm) |
• X2" Shaft
• X2.5" Shaft |
|
5" Ultra |
165mm |
|
5” Bore, 3/8” Wall
(Tube O.D 146mm) |
• X2.5" Shaft
• X3" Shaft |
|
6" Ultra |
202mm |
|

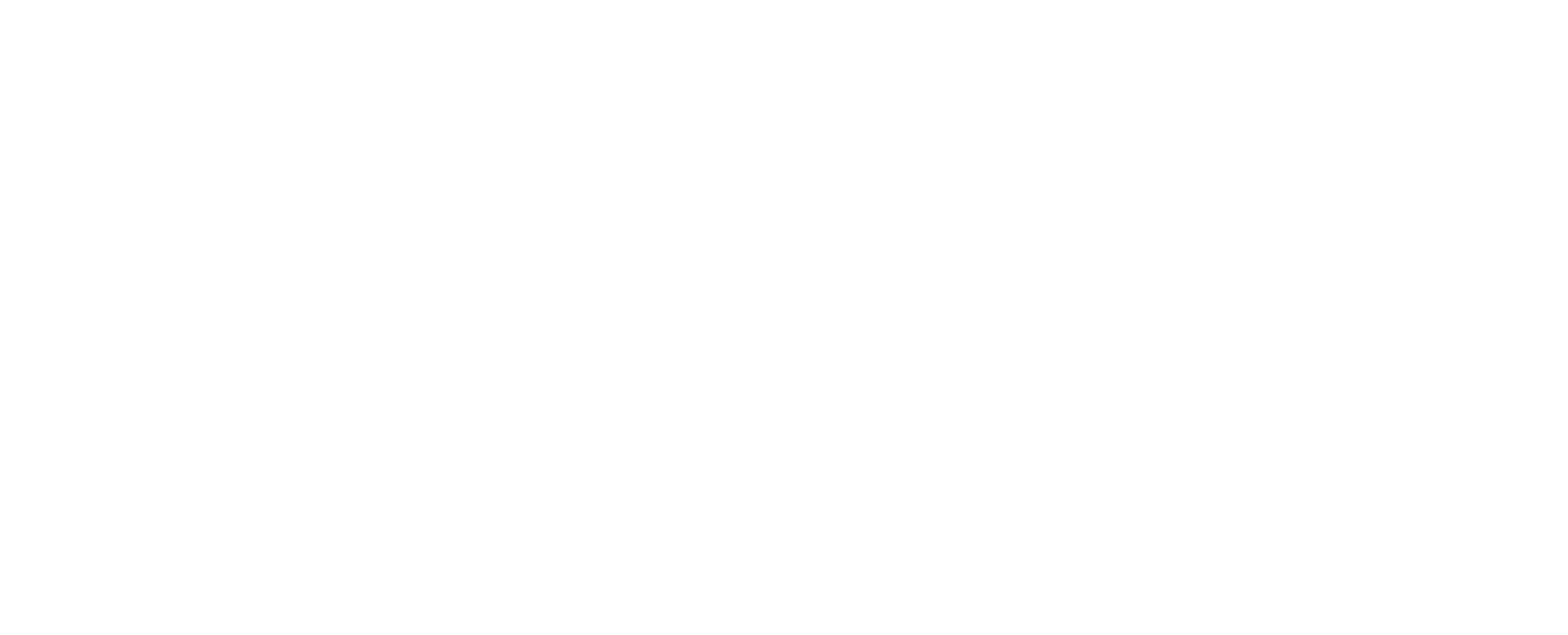

6” Bore, 3/8” Wall
(Tube O.D 178mm) |
• X3" Shaft
• X3.5" Shaft
• X4" Shaft |
