We build toplink cylinders for 15 to 500hp rated tractors
Motus Toplink Cylinders provide hydraulic adjustment of a tractor's three-point linkage, making implement positioning faster and easier. Pick the model for your tractor's horsepower and mounting below. Need a custom built ram? Call us. We invented and have been designing and building hydraulic toplinks in New Zealand since 1963. MOTUS rams are built to last - in fact, our rams we built in the 70s are still going strong!
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Buy a size straight away, or tick the sizes you need and request a price for the lot.
| Code | Price | Tractor range | Tractor size | Bore x shaft x stroke | Closed centres mm | Open centres mm | Tractor mount | Spear mount | Push tonnes @ 2250 psi | Pull tonnes @ 2250 psi | Drawing |
|---|---|---|---|---|---|---|---|---|---|---|---|
| $582.80 Buy | Most tractors | 15-35hp | 2" x 1" x 250mm | 538 | 788 | CAT 1 | CAT 2 | 3.14 | 2.35 | ||
| $570.40 Buy | Most tractors | 15-35hp | 2" x 1" x 250mm | 533 | 783 | CAT 1 | CAT 1 | 3.14 | 2.35 | ||
| $657.20 Buy | Most tractors | 30-70hp | 2.5" x 1.25" x 250mm | 535 | 785 | CAT 1 | CAT 2 | 4.90 | 3.68 | ||
| $657.20 Buy | Most tractors | 30-70hp | 2.5" x 1.25" x 200mm | 459 | 659 | CAT 1 | CAT 2 | 4.90 | 3.68 | ||
| $558.00 Buy | Most tractors | 70-130hp | 2.5" x 1.25" x 250mm | 566 | 816 | CAT 2 | CAT 2 | 4.90 | 3.68 | ||
| $750.20 Buy | Most tractors | 70-130hp | 2.5" x 1.25" x 250mm | 561 | 811 | CAT 2 | CAT 2 QH | 4.90 | 3.68 | ||
| $682.00 Buy | Most tractors | 110-150hp | 3" x 1.5" x 250mm | 566 | 816 | CAT 2 | CAT 2 | 7.06 | 5.30 | ||
| $917.60 Buy | Most tractors | 110-150hp | 3" x 1.5" x 250mm | 566 | 816 | CAT 2 | CAT 2 QH | 7.06 | 5.30 | ||
| $1,196.60 Buy | Most tractors | 140-200hp | 3.5" x 1.75" x 300mm | 680 | 980 | CAT 3 | CAT 3 | 9.62 | 7.21 | ||
| $682.00 Buy | John Deere | 60-120hp | 2.5" x 1.25" x 250mm | 543 | 793 | 3/4 CAT 1 | CAT 2 | 4.90 | 3.68 | ||
| $706.80 Buy | Most brands (knuckle type end) | 100-130hp | 2.5" x 1.25" x 250mm | 570 | 820 | Knuckle | CAT 2 | 4.90 | 3.68 | ||
| $869.24 Buy | Most brands (knuckle type end) | 100-130hp | 2.5" x 1.25" x 250mm | 589 | 839 | Knuckle | CAT 2 QH | 4.90 | 3.68 | ||
| $1,035.40 Buy | Most brands (knuckle type end) | 100-130hp | 2.5" x 1.25" x 250mm | 631 | 881 | Knuckle | CAT 3 QH | 4.90 | 3.68 | ||
| $830.80 Buy | Most brands (knuckle type end) | 130-170hp | 3" x 1.5" x 250mm | 574 | 824 | Knuckle | CAT 2 | 7.06 | 5.30 | ||
| $1,066.40 Buy | Most brands (knuckle type end) | 130-170hp | 3" x 1.5" x 250mm | 596 | 846 | Knuckle | CAT 2 QH | 7.06 | 5.30 | ||
| $1,078.80 Buy | Most brands (knuckle type end) | 130-170hp | 3" x 1.5" x 250mm | 626 | 876 | Knuckle | CAT 3 QH | 7.06 | 5.30 | ||
| $892.80 Buy | Most brands (knuckle type end) | 130-170hp | 3" x 1.5" x 250mm | 654 | 904 | Knuckle | CAT 2 | 7.06 | 5.30 | ||
| $1,221.40 Buy | Most brands (knuckle type end) | 130-170hp | 3" x 1.5" x 250mm | 651 | 901 | Knuckle | CAT 3 QH | 7.06 | 5.30 | ||
| $1,227.60 Buy | Most brands (knuckle type end) | 180-240hp | 3.5" x 1.75" x 250mm | 594 | 844 | Knuckle | CAT 3 | 9.62 | 7.21 | ||
| $1,128.40 Buy | Most brands (knuckle type end) | 180-240hp | 3.5" x 1.75" x 250mm | 625 | 875 | Knuckle | CAT 2 QH | 9.62 | 7.21 | ||
| $1,556.20 Buy | Most brands (knuckle type end) | 180-240hp | 3.5" x 1.75" x 250mm | 667 | 917 | Knuckle | CAT 3 QH | 9.62 | 7.21 | ||
| $2,300.00 Buy | Most brands (knuckle type end) | 200-300hp | 4" x 2" x 250mm | 645 | 895 | Knuckle | CAT 3 | 12.56 | 9.42 | ||
| $2,550.00 Buy | Most brands (knuckle type end) | 200-300hp | 4" x 2" x 250mm | 707 | 957 | Knuckle | CAT 3 QH | 12.56 | 9.42 | ||
| $595.20 Buy | Valtra, MF & Kubota | 90-120hp | 2.5" x 1.25" x 300mm | 595 | 895 | CAT 2 | CAT 2 | 4.90 | 3.68 | ||
| $923.80 Buy | Valtra, MF & Kubota | 90-120hp | 2.5" x 1.25" x 300mm | 601 | 901 | CAT 2 | CAT 2 QH | 4.90 | 3.68 | ||
| $793.60 Buy | Valtra, MF & Kubota | 110-150hp | 3" x 1.5" x 300mm | 595 | 895 | CAT 2 | CAT 2 | 7.06 | 5.30 | ||

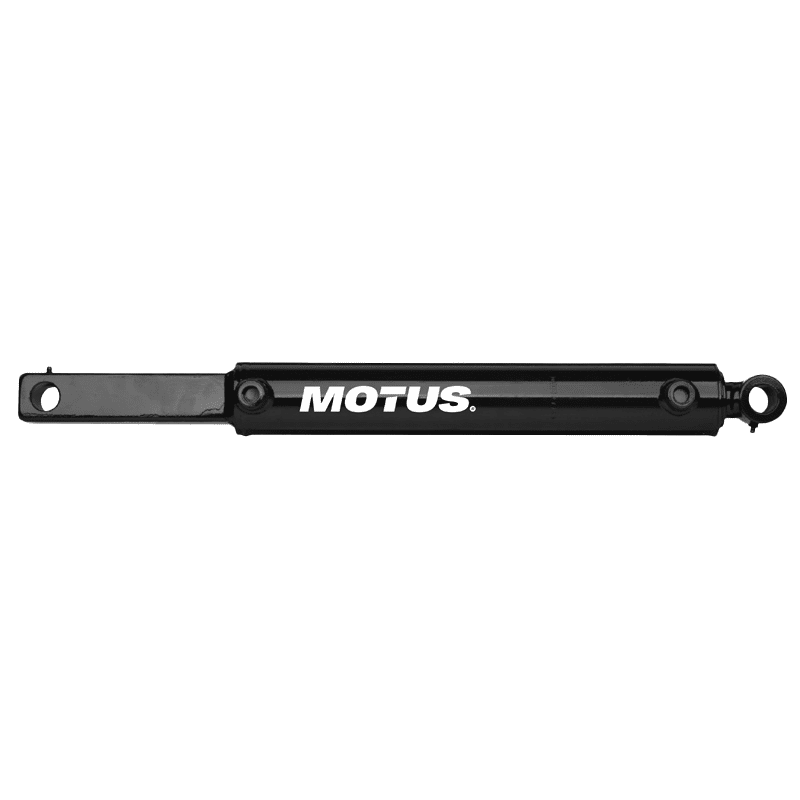

| $706.80 Buy | Case CX | 90-120hp | 2.5" x 1.25" x 250mm | 537 | 787 | Tongue | CAT 2 | 4.90 | 3.68 | ||
| $849.40 Buy | Case CX | 110-150hp | 3" x 1.5" x 250mm | 537 | 787 | Tongue | CAT 2 | 7.06 | 5.30 | ||
| $669.60 Buy | JD5500 10 Series, New Holland | 70-130hp | 2.5" x 1.25" x 200mm | 500 | 700 | CAT 2 (50w) | CAT 2 | 4.90 | 3.68 | ||
| $706.80 Buy | JD5500 20 Series | 70-130hp | 2.5" x 1.25" x 200mm | 500 | 700 | CAT 2 (44w) | CAT 2 | 4.90 | 3.68 | ||
| $657.20 Buy | Ferrari | 70-130hp | 2.5" x 1.25" x 155mm | 425 | 580 | CAT 1 | CAT 2 | 4.90 | 3.68 | ||
| $617.52 Buy | Ferrari | 70-130hp | 2.5" x 1.25" x 125mm | 425 | 550 | CAT 1 | CAT 2 | 4.90 | 3.68 | ||
| $4,695.00 Buy | 250hp+ | 250hp + | 5" x 2.5" x 166mm | 690 | 856 | CAT 4 | CAT 4 | 19.59 | 14.69 | CAT 4 |
Knuckle type end: suits most brands Knuckles available in 4 sizes: 20mm, 1", 28mm, 32mm (CAT 1, 2, 28mm, 3)
This chart is a guide only - consideration should be made for the type of implement that will be fitted.
The cylinder mount fits to the tractor 'link' which is permanently fixed to the tractor.
No size matches that. Clear the filter to see them all.
Ordering a new MOTUS toplink is simple: Measure the dimensions A, B and C on your tractor ram mounting plates and tell us your tractor model and HP rating.
Finally, check whether you will need a custom spacer and we will recommend the appropriate size toplink.
To ensure long toplink life, check clearances for free movement before use. We recommend that you install your MOTUS toplink using the top hole in the mounting plates.
Motus have a vast range of sizes available to suit virtually any tractor. If you need something special, call our helpful team and they'll guide you through our custom build service.
A unique identification number is stamped into each ram for full traceability and parts backup.
Backed by more than 60 years experience, we confidently offer a 4 year warranty on all of our toplinks.
