Levelling box cylinders to meet your OEM style requirements.

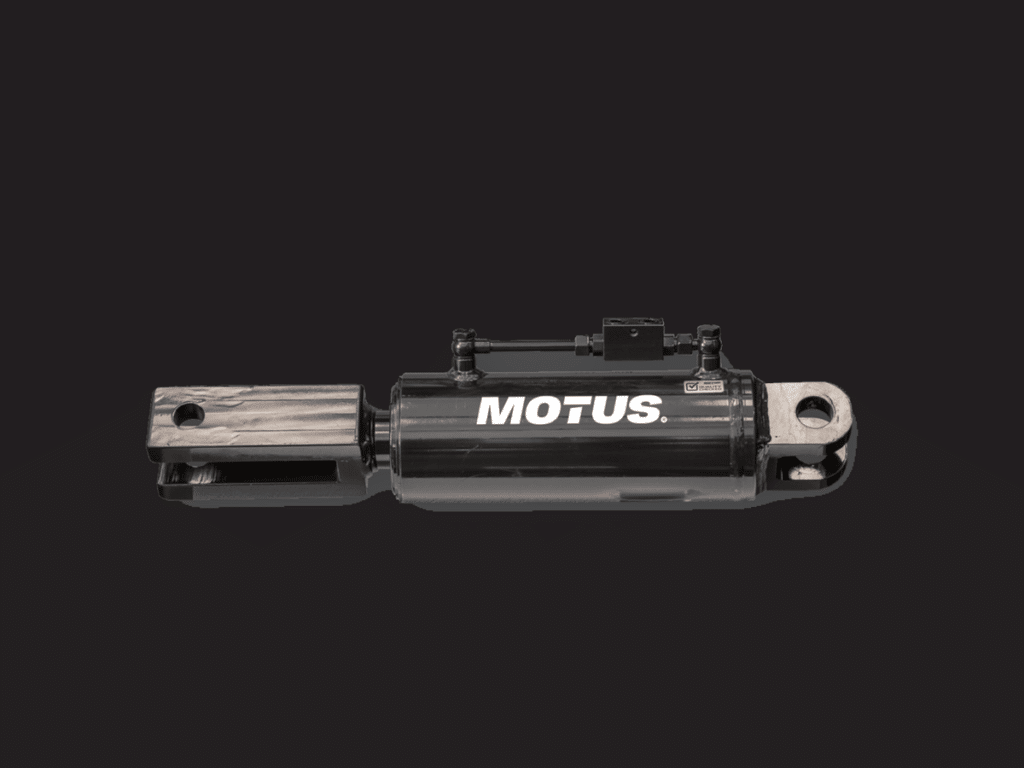

Levelling box cylinders (LB) for the tractor's three-point linkage, sized by tractor horsepower. 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. | Approx. tractor HP | Cylinder Size | Linkage Capacity |
|---|---|---|---|
| 18 - 40 hp | 2 x 1 x 150mm | 1500kg | |
| 40 - 80 hp | 2.5 x 1.25 x 150mm | 3000kg | |
| 80 - 120 hp | 3 x 1.5 x 150mm | 5000kg | |
| 120 - 180 hp | 3.5 x 1.75 x 150mm | 7000kg | |
| 180 - 220 hp | 4 x 2 x 150mm | 8000kg | |
| 220 - 280 hp | 5 x 2.5 x 150mm | 10,000kg | |
| 280 - 350 hp | 6 x 3 x 150mm | 14,000kg |
