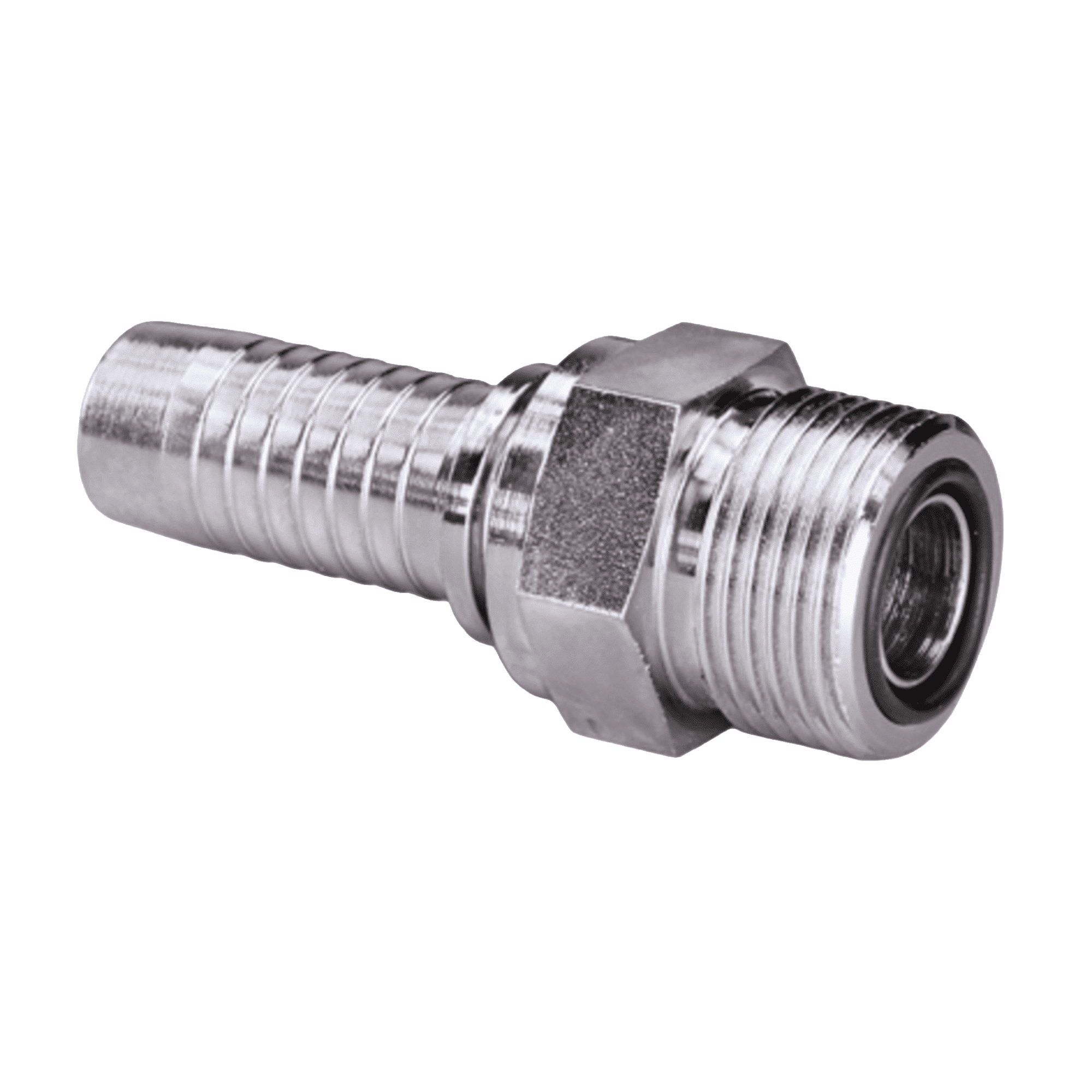

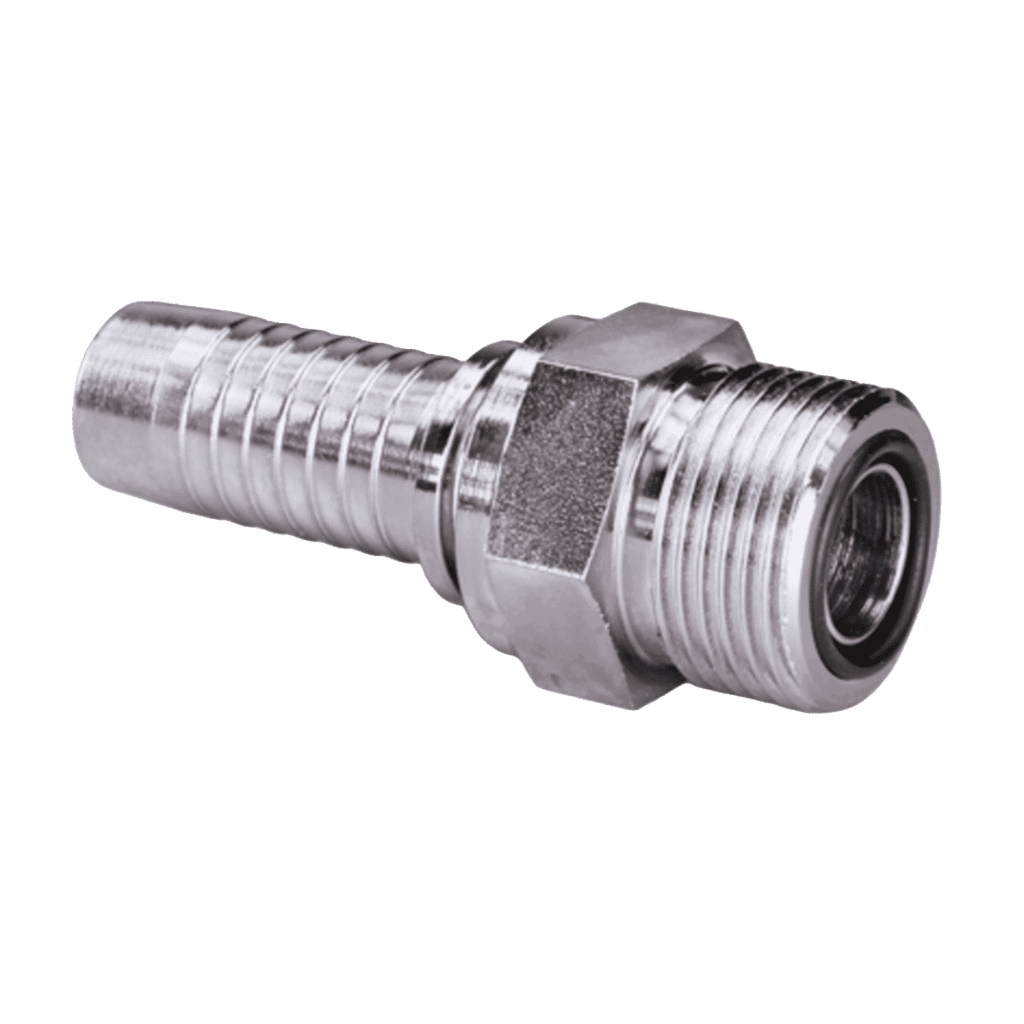

Swage nipple, ORFS. For swage Nipples for MH100, MH200, MH400, MH700. UN / UNF external threads. Flat seal with O-ring. To ISO 8434-3. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 16 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | S1 | OR |
|---|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 9/16”-18 UNF | 52.5 | 17 | 7.65 x 1.78 | |
| 6 | 4 | 1/4” | 11/16”–16 UN | 54.0 | 19 | 9.25 x 1.78 | |
| 8 | 5 | 5/16” | 11/16”–16 UN | 54.0 | 19 | 9.25 x 1.78 | |
| 10 | 6 | 3/8” | 11/16”–16 UN | 56.0 | 19 | 9.25 x 1.78 | |
| 10 | 6 | 3/8” | 13/16”–16 UN | 58.5 | 22 | 12.42 x 1.78 | |
| 10 | 6 | 3/8” | 1”–14 UNS | 62.0 | 27 | 15.60 x 1.78 | |
| 12 | 8 | 1/2” | 13/16”–16 UN | 60.0 | 22 | 12.42 x 1.78 | |
| 12 | 8 | 1/2” | 1”–14 UNS | 63.5 | 27 | 15.60 x 1.78 | |
| 12 | 8 | 1/2” | 1.3/16”–12 UN | 66.5 | 32 | 18.77 x 1.78 | |
| 16 | 10 | 5/8” | 1”–14 UNS | 68.0 | 27 | 15.60 x 1.78 | |
| 16 | 10 | 5/8” | 1.3/16”–12 UN | 71.0 | 32 | 18.77 x 1.78 | |
| 19 | 12 | 3/4” | 1.3/16”–12 UN | 78.0 | 32 | 18.77 x 1.78 | |
| 19 | 12 | 3/4” | 1.7/16”–12 UN | 82.5 | 41 | 23.52 x 1.78 | |
| 25 | 16 | 1” | 1.7/16”–12 UN | 90.5 | 41 | 23.52 x 1.78 | |
| 31 | 20 | 1.1/4” | 1.11/16”–12 UN | 101.5 | 46 | 29.87 x 1.78 | |
| 38 | 24 | 1.1/2” | 2”–12 UN | 109.0 | 55 | 37.82 x 1.78 |

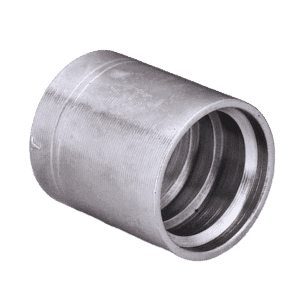

Note: Choose the appropriate ferrule based on the hose type.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
