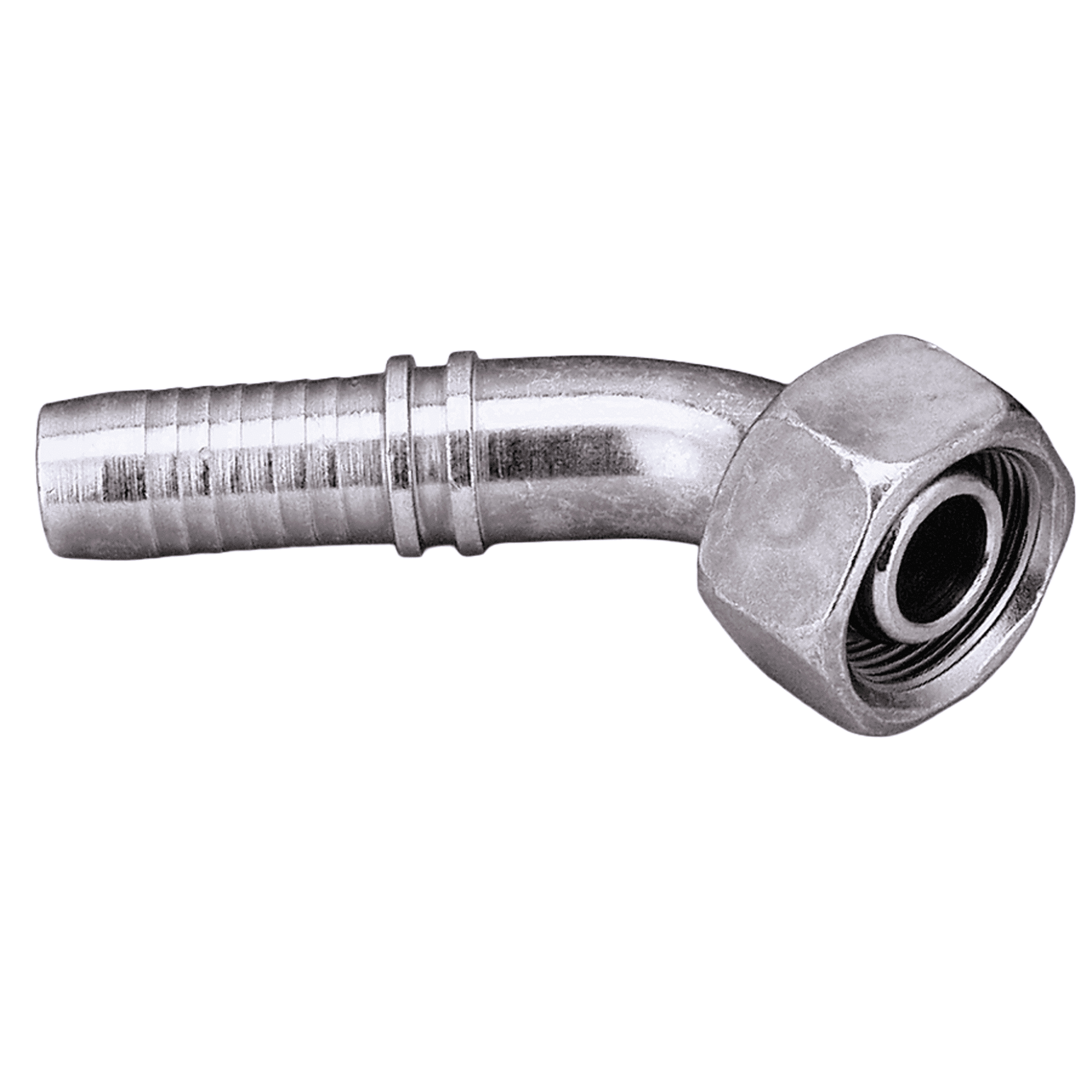

Swage nipple, DKOS angle 45°. Heavy series. For swage Nipples for MH100, MH200, MH400, MH700. Metric nut thread. 24° outer cone with O-ring. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 23 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø mm | L1 mm | L2 mm | S1 | OR |
|---|---|---|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | M 16 x 1.5 | 8 | 56.5 | 15.5 | 19 | 6.0 x 1.5 | |
| 5 | 3 | 3/16” | M 18 x 1.5 | 10 | 58.0 | 17.0 | 22 | 7.0 x 2.0 | |
| 6 | 4 | 1/4” | M 14 x 1.5 | 6 | 64.5 | 16.5 | 17 | 4.0 x 1.5 | |
| 6 | 4 | 1/4” | M 16 x 1.5 | 8 | 64.5 | 16.5 | 19 | 6.0 x 1.5 | |
| 6 | 4 | 1/4” | M 18 x 1.5 | 10 | 65.0 | 17.0 | 22 | 7.5 x 1.5 | |
| 6 | 4 | 1/4” | M 20 x 1.5 | 12 | 67.5 | 18.0 | 24 | 9.0 x 1.5 | |
| 8 | 5 | 5/16” | M 18 x 1.5 | 10 | 64.0 | 17.0 | 22 | 7.5 x 1.5 | |
| 8 | 5 | 5/16” | M 20 x 1.5 | 12 | 67.5 | 18.0 | 24 | 9.0 x 1.5 | |
| 10 | 6 | 3/8” | M 18 x 1.5 | 10 | 72.0 | 21.0 | 22 | 7.5 x 1.5 | |
| 10 | 6 | 3/8” | M 20 x 1.5 | 12 | 73.0 | 20.0 | 24 | 9.0 x 1.5 | |
| 10 | 6 | 3/8” | M 22 x 1.5 | 14 | 73.5 | 20.5 | 27 | 10.0 x 2.0 | |
| 10 | 6 | 3/8” | M 24 x 1.5 | 16 | 81.0 | 21.0 | 30 | 12.0 x 2.0 | |
| 12 | 8 | 1/2” | M 22 x 1.5 | 14 | 81.0 | 27.5 | 27 | 10.0 x 2.0 | |
| 12 | 8 | 1/2” | M 24 x 1.5 | 16 | 82.0 | 21.0 | 30 | 12.0 x 2.0 | |
| 16 | 10 | 5/8” | M 24 x 1.5 | 16 | 85.5 | 27.5 | 30 | 12.0 x 2.0 | |
| 16 | 10 | 5/8” | M 30 x 2 | 20 | 98.5 | 27.5 | 36 | 16.0 x 2.5 | |
| 16 | 10 | 5/8” | M 36 x 2 | 25 | 103.0 | 30.5 | 46 | 20.0 x 2.5 | |
| 19 | 12 | 3/4” | M 30 x 2 | 20 | 109.0 | 30.0 | 36 | 16.0 x 2.5 | |
| 19 | 12 | 3/4” | M 36 x 2 | 25 | 109.5 | 30.5 | 46 | 20.0 x 2.5 | |
| 25 | 16 | 1” | M 36 x 2 | 25 | 141.5 | 39.5 | 46 | 20.0 x 2.5 | |
| 25 | 16 | 1” | M 42 x 2 | 30 | 135.5 | 33.0 | 50 | 25.0 x 2.5 | |
| 31 | 20 | 1.1/4” | M 52 x 2 | 38 | 161.5 | 40.5 | 60 | 33.0 x 2.5 | |
| 38 | 24 | 1.1/2” | M 52 x 2 | 38 | 165.0 | 40.5 | 60 | 33.0 x 2.5 |
Note: Choose the appropriate ferrule based on the hose type.
