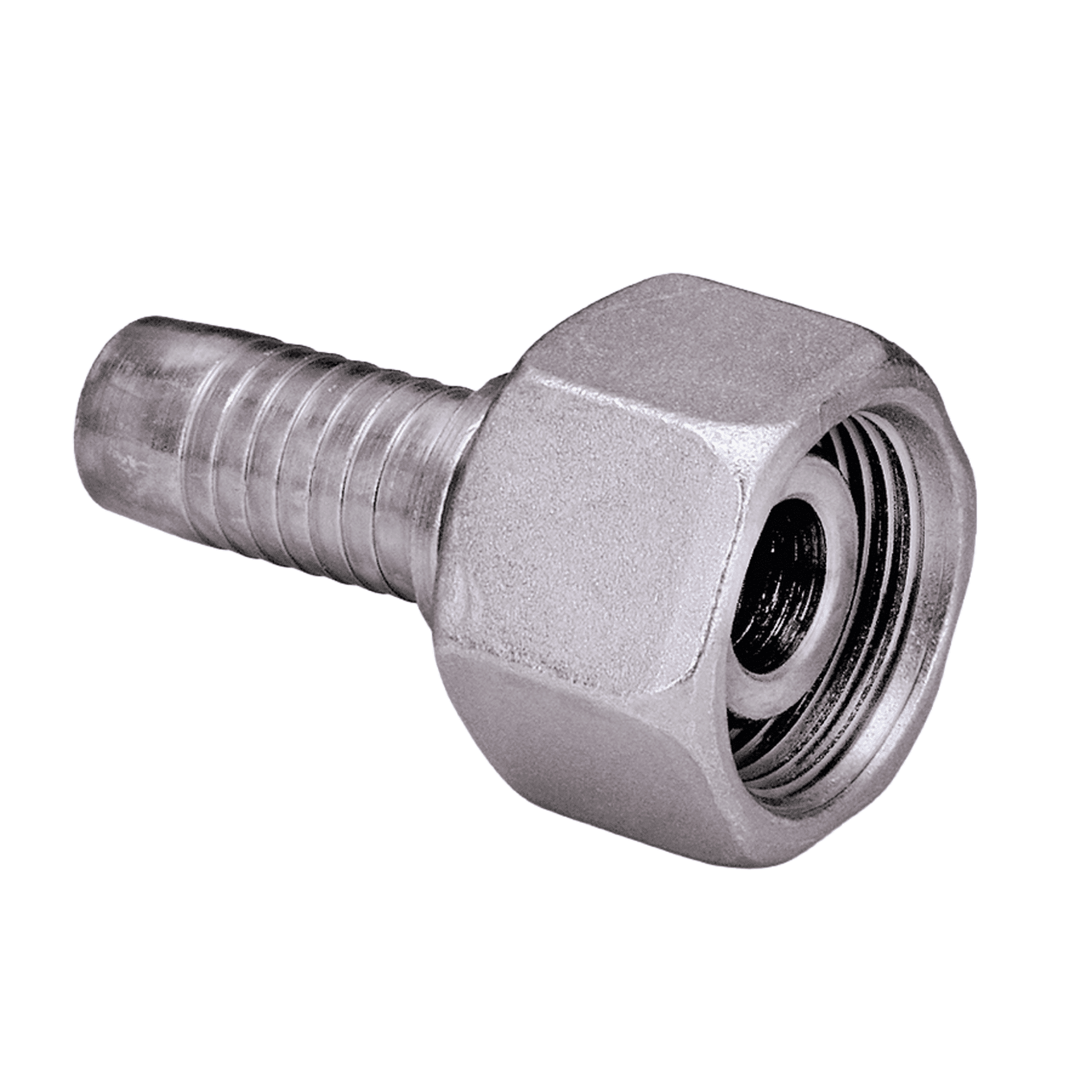

Swage nipple, DKS. Heavy series. For swage Nipples for MH100, MH200, MH400, MH700. Metric nut thread. 24/60° Universal sealing head. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 13 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø mm | L1 mm | S1 |
|---|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | M 14 x 1.5 | 6 | 44.5 | 17 | |
| 5 | 3 | 3/16” | M 16 x 1.5 | 8 | 44.5 | 19 | |
| 6 | 4 | 1/4” | M 16 x 1.5 | 8 | 51.5 | 19 | |
| 6 | 4 | 1/4” | M 18 x 1.5 | 10 | 52.5 | 22 | |
| 8 | 5 | 5/16” | M 18 x 1.5 | 10 | 52.5 | 22 | |
| 8 | 5 | 5/16” | M 20 x 1.5 | 12 | 52.5 | 24 | |
| 10 | 6 | 3/8” | M 20 x 1.5 | 12 | 54.0 | 24 | |
| 10 | 6 | 3/8” | M 22 x 1.5 | 14 | 57.0 | 27 | |
| 12 | 8 | 1/2” | M 24 x 1.5 | 16 | 58.0 | 30 | |
| 16 | 10 | 5/8” | M 30 x 2 | 20 | 66.0 | 36 | |
| 20 | 12 | 3/4” | M 36 x 2 | 25 | 75.5 | 46 | |
| 25 | 16 | 1” | M 42 x 2 | 30 | 85.5 | 50 | |
| 31 | 20 | 1.1/4” | M 52 x 2 | 38 | 98.0 | 60 |
Note: Choose the appropriate ferrule based on the hose type.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
