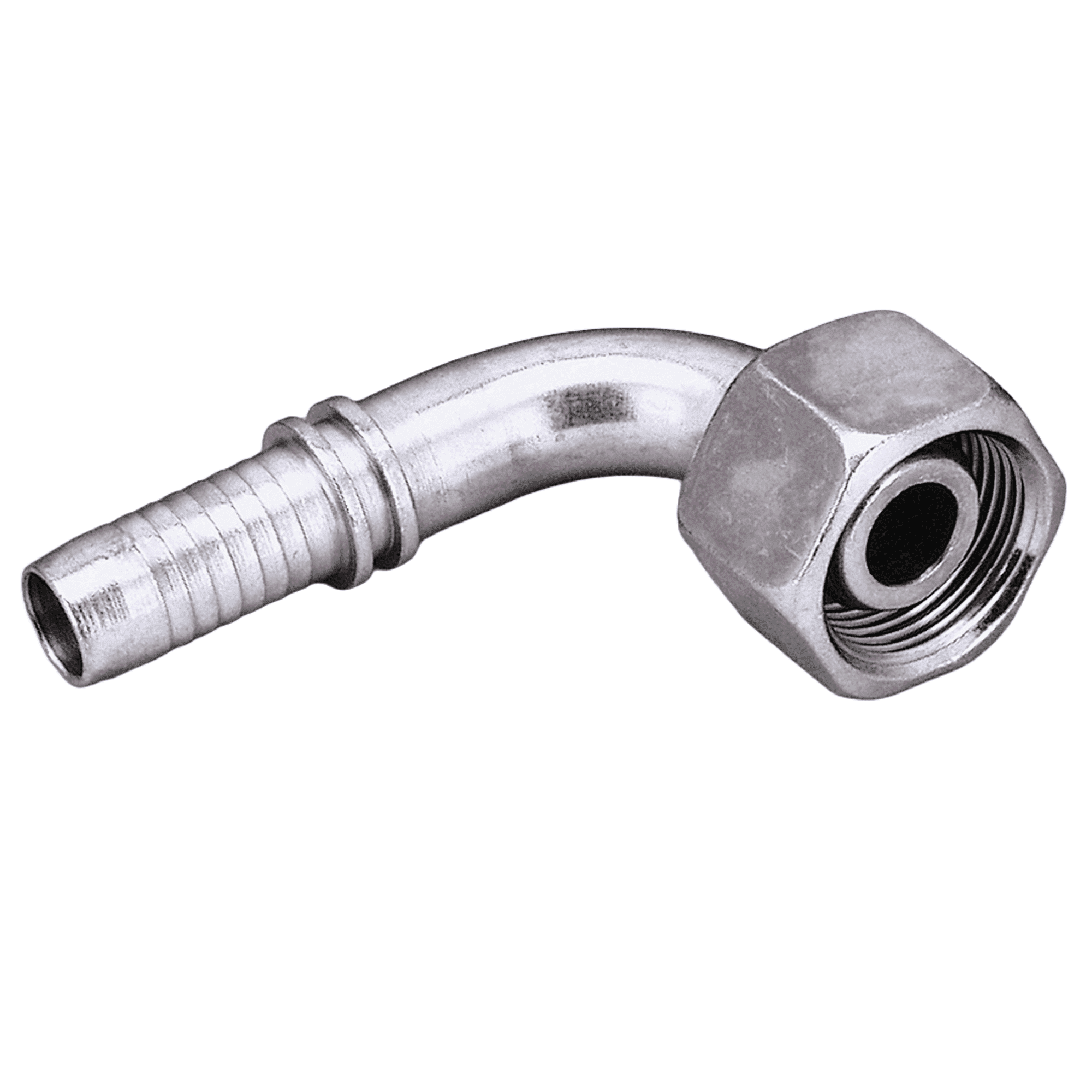

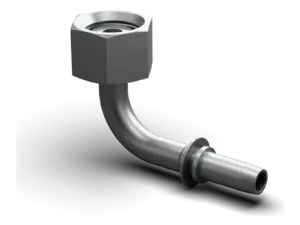

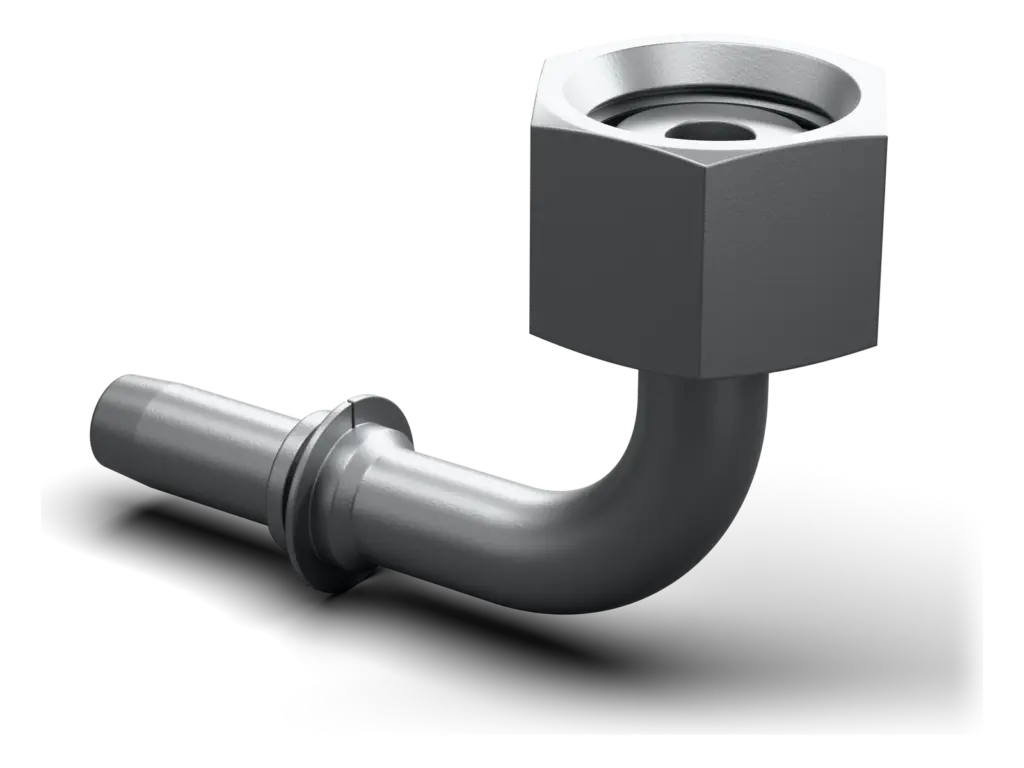

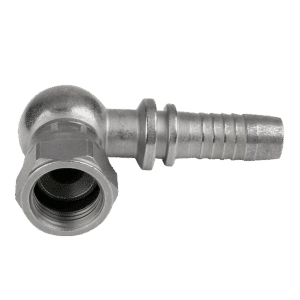

Swage nipple, DKOS angle 90°. Heavy series. For swage Nipples for MH100, MH200, MH400, MH700. Metric nut thread. 24° outer cone with O-ring. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 31 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø mm | L1 mm | L2 mm | S1 | OR |
|---|---|---|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | M 16 x 1.5 | 8 | 48.5 | 29.5 | 19 | 6.0 x 1.5 | |
| 5 | 3 | 3/16” | M 16 x 1.5 | 8 | 48.5 | 37.0 | 19 | 6.0 x 1.5 | |
| 6 | 4 | 1/4” | M 14 x 1.5 | 6 | 58.0 | 34.0 | 17 | 4.0 x 1.5 | |
| 6 | 4 | 1/4” | M 16 x 1.5 | 8 | 55.0 | 32.5 | 19 | 6.0 x 1.5 | |
| 6 | 4 | 1/4” | M 18 x 1.5 | 10 | 55.0 | 33.5 | 22 | 7.5 x 1.5 | |
| 6 | 4 | 1/4” | M 20 x 1.5 | 12 | 58.0 | 34.0 | 24 | 9.0 x 1.5 | |
| 8 | 5 | 5/16” | M 18 x 1.5 | 10 | 61.5 | 38.5 | 22 | 7.5 x 1.5 | |
| 8 | 5 | 5/16” | M 20 x 1.5 | 12 | 58.0 | 34.0 | 24 | 9.0 x 1.5 | |
| 8 | 5 | 5/16” | M 20 x 1.5 | 12 | 58.0 | 45.0 | 24 | 9.0 x 1.5 | |
| 10 | 6 | 3/8” | M 18 x 1.5 | 10 | 63.0 | 38.5 | 22 | 7.5 x 1.5 | |
| 10 | 6 | 3/8” | M 20 x 1.5 | 12 | 64.0 | 37.5 | 24 | 9.0 x 1.5 | |
| 10 | 6 | 3/8” | M 22 x 1.5 | 14 | 64.0 | 38.5 | 27 | 10.0 x 2.0 | |
| 10 | 6 | 3/8” | M 24 x 1.5 | 16 | 71.5 | 43.0 | 30 | 12.0 x 2.0 | |
| 12 | 8 | 1/2” | M 22 x 1.5 | 14 | 71.5 | 55.0 | 27 | 10.0 x 2.0 | |
| 12 | 8 | 1/2” | M 24 x 1.5 | 16 | 72.5 | 43.0 | 30 | 12.0 x 2.0 | |
| 12 | 8 | 1/2” | M 30 x 2 | 20 | 83.5 | 55.0 | 36 | 16.0 x 2.5 | |
| 16 | 10 | 5/8” | M 24 x 1.5 | 16 | 76.0 | 55.0 | 30 | 12.0 x 2.0 | |
| 16 | 10 | 5/8” | M 30 x 2 | 20 | 88.0 | 55.0 | 36 | 16.0 x 2.5 | |
| 16 | 10 | 5/8” | M 30 x 2 | 20 | 88.0 | 100.0 | 36 | 16.0 x 2.5 | |
| 16 | 10 | 5/8” | M 36 x 2 | 25 | 93.0 | 59.5 | 46 | 20.0 x 2.5 |
| Identification | DN | Size | Inches | G1 | for external pipe Ø mm | L1 mm | L2 mm | S1 | OR |
|---|---|---|---|---|---|---|---|---|---|
| 19 | 12 | 3/4” | M 30 x 2 | 20 | 99.5 | 58.5 | 36 | 16.0 x 2.5 | |
| 19 | 12 | 3/4” | M 36 x 2 | 25 | 99.5 | 59.5 | 46 | 20.0 x 2.5 | |
| 19 | 12 | 3/4” | M 36 x 2 | 25 | 99.5 | 110.0 | 46 | 20.0 x 2.5 | |
| 19 | 12 | 3/4” | M 36 x 2 | 25 | 99.5 | 130.0 | 46 | 20.0 x 2.5 | |
| 19 | 12 | 3/4” | M 36 x 2 | 25 | 99.5 | 150.0 | 46 | 20.0 x 2.5 | |
| 19 | 12 | 3/4” | M 42 x 2 | 30 | 119.0 | 71.0 | 50 | 25.0 x 2.5 | |
| 25 | 16 | 1” | M 36 x 2 | 25 | 126.0 | 80.5 | 46 | 20.0 x 2.5 | |
| 25 | 16 | 1” | M 42 x 2 | 30 | 127.0 | 71.0 | 50 | 25.0 x 2.5 | |
| 31 | 20 | 1.1/4” | M 42 x 2 | 30 | 135.0 | 85.0 | 50 | 25.0 x 2.5 | |
| 31 | 20 | 1.1/4” | M 52 x 2 | 38 | 151.5 | 85.0 | 60 | 33.0 x 2.5 | |
| 38 | 24 | 1.1/2” | M 52 x 2 | 38 | 155.0 | 95.0 | 60 | 33.0 x 2.5 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
