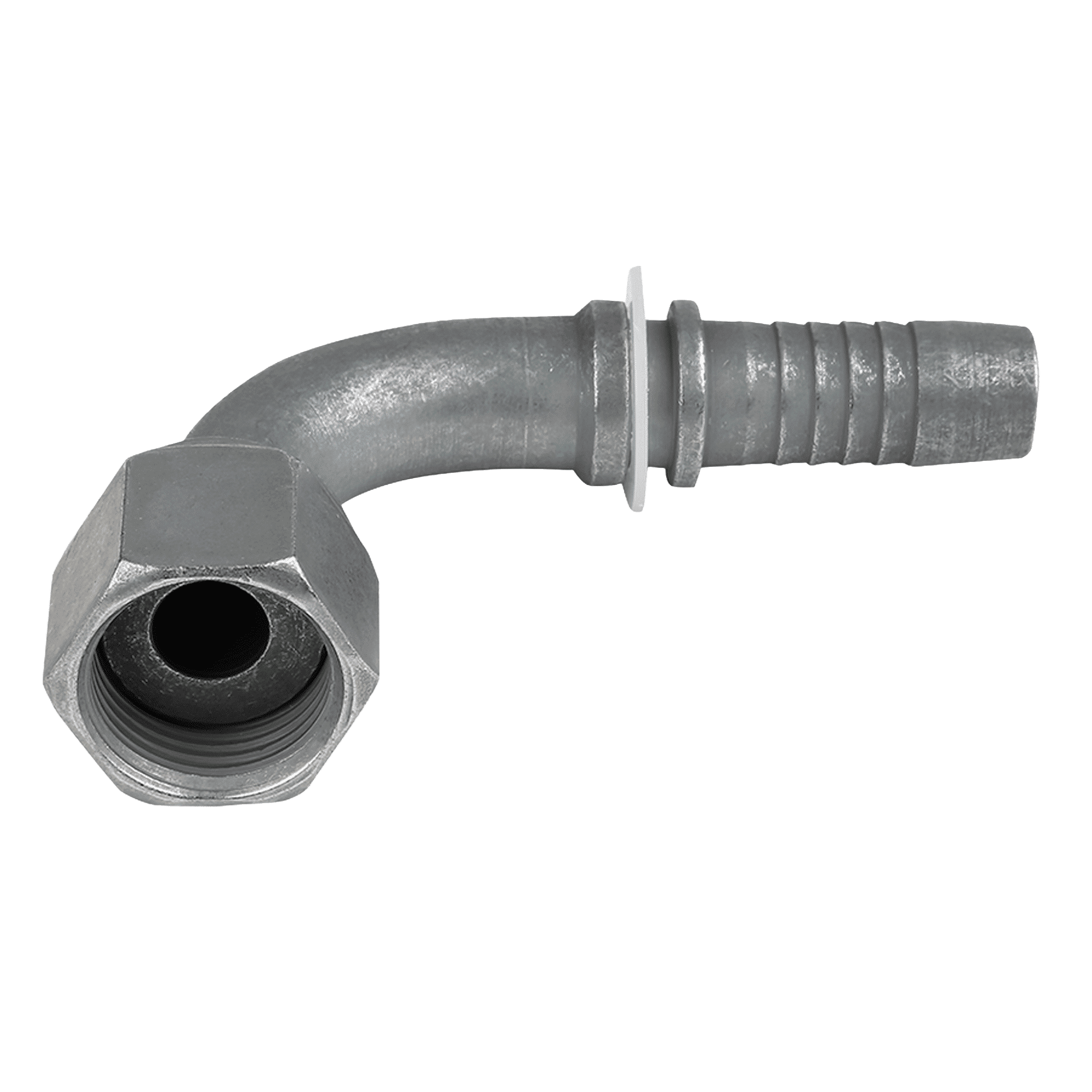

Swage nipple, ORFS angle 90°. For swage Nipples for MH100, MH200, MH400, MH700. UN / UNF nut threads. Flat sealing. To ISO 8434-3. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 23 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 9/16”-18 UNF | 55.0 | 26.5 | 17 | |
| 6 | 4 | 1/4” | 9/16”-18 UNF | 55.0 | 58.0 | 17 | |
| 6 | 4 | 1/4” | 11/16”–16 UN | 55.0 | 28.0 | 22 | |
| 8 | 5 | 5/16” | 11/16”–16 UN | 58.0 | 28.0 | 22 | |
| 10 | 6 | 3/8” | 11/16”–16 UN | 64.0 | 32.0 | 22 | |
| 10 | 6 | 3/8” | 11/16”–16 UN | 64.0 | 69.0 | 22 | |
| 10 | 6 | 3/8” | 13/16”–16 UN | 64.0 | 33.0 | 24 | |
| 12 | 8 | 1/2” | 13/16”–16 UN | 72.5 | 37.0 | 24 | |
| 12 | 8 | 1/2” | 13/16”–16 UN | 72.5 | 82.0 | 24 | |
| 12 | 8 | 1/2” | 1”–14 UNS | 72.5 | 41.0 | 30 | |
| 12 | 8 | 1/2” | 1.3/16”–12 UN | 71.5 | 43.5 | 36 | |
| 16 | 10 | 5/8” | 1”–14 UNS | 88.0 | 47.5 | 30 | |
| 16 | 10 | 5/8” | 1”–14 UNS | 88.0 | 94.0 | 30 | |
| 16 | 10 | 5/8” | 1.3/16”–12 UN | 89.5 | 49.0 | 36 | |
| 19 | 12 | 3/4” | 1.3/16”–12 UN | 99.5 | 52.0 | 36 | |
| 19 | 12 | 3/4” | 1.3/16”–12 UN | 99.5 | 96.0 | 36 | |
| 19 | 12 | 3/4” | 1.7/16”–12 UN | 98.5 | 56.0 | 41 | |
| 25 | 16 | 1” | 1.7/16”–12 UN | 127.0 | 63.5 | 41 | |
| 25 | 16 | 1” | 1.7/16”–12 UN | 127.0 | 114.0 | 41 | |
| 31 | 20 | 1.1/4” | 1.11/16”–12 UN | 151.5 | 76.0 | 50 | |
| 31 | 20 | 1.1/4” | 1.11/16”–12 UN | 151.5 | 129.0 | 50 | |
| 38 | 24 | 1.1/2” | 2”–12 UN | 176.5 | 89.0 | 60 | |
| 38 | 24 | 1.1/2” | 2”–12 UN | 176.5 | 146.0 | 60 |
Note: Choose the appropriate ferrule based on the hose type.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
