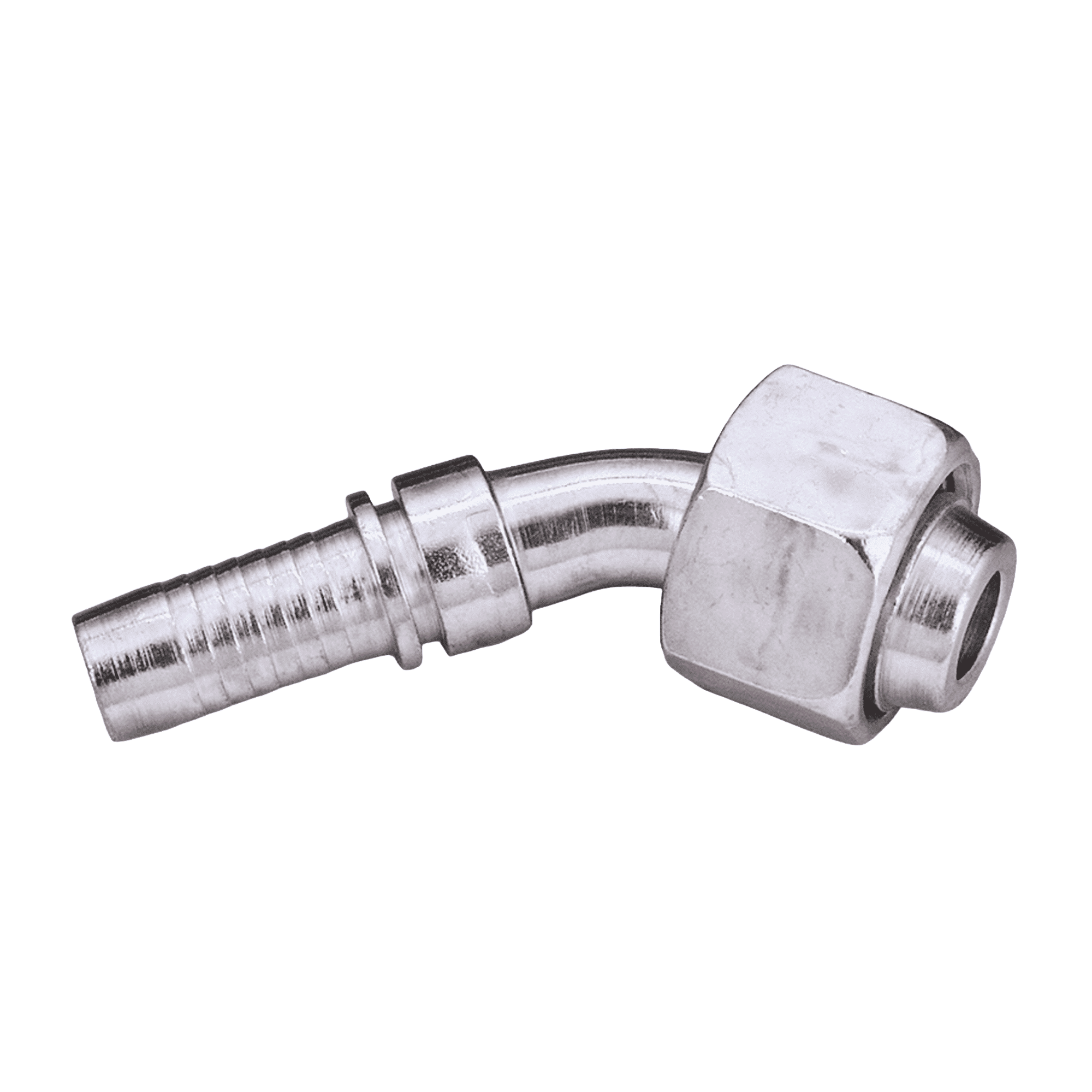

Swage nipple, DKL angle 45°. Light series. For swage Nipples for MH100, MH200, MH400, MH700. Metric nut thread. 24° / 60° Universal sealing head. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 18 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | M 12 x 1.5 | 6 mm | 56.0 | 15.0 | 14 | |
| 6 | 4 | 1/4” | M 12 x 1.5 | 6 mm | 62.0 | 17.0 | 14 | |
| 6 | 4 | 1/4” | M 14 x 1.5 | 8 mm | 62.5 | 14.5 | 17 | |
| 6 | 4 | 1/4” | M 16 x 1.5 | 10 mm | 63.0 | 15.5 | 19 | |
| 6 | 4 | 1/4” | M 18 x 1.5 | 12 mm | 65.0 | 15.5 | 22 | |
| 8 | 5 | 5/16” | M 16 x 1.5 | 10 mm | 64.5 | 15.0 | 19 | |
| 8 | 5 | 5/16” | M 18 x 1.5 | 12 mm | 65.0 | 15.5 | 22 | |
| 10 | 6 | 3/8” | M 16 x 1.5 | 10 mm | 72.5 | 19.5 | 19 | |
| 10 | 6 | 3/8” | M 18 x 1.5 | 12 mm | 71.0 | 18.0 | 22 | |
| 10 | 6 | 3/8” | M 22 x 1.5 | 15 mm | 71.5 | 18.5 | 27 | |
| 12 | 8 | 1/2” | M 22 x 1.5 | 15 mm | 79.5 | 18.5 | 27 | |
| 12 | 8 | 1/2” | M 26 x 1.5 | 18 mm | 90.5 | 24.0 | 32 | |
| 16 | 10 | 5/8” | M 26 x 1.5 | 18 mm | 95.0 | 24.0 | 32 | |
| 19 | 12 | 3/4” | M 30 x 2 | 22 mm | 106.0 | 27.0 | 36 | |
| 19 | 12 | 3/4” | M 36 x 2 | 28 mm | 124.0 | 29.5 | 41 | |
| 25 | 16 | 1” | M 36 x 2 | 28 mm | 132.0 | 29.5 | 41 | |
| 31 | 20 | 1.1/4” | M 45 x 2 | 35 mm | 159.0 | 38.5 | 50 | |
| 38 | 24 | 1.1/2” | M 52 x 2 | 42 mm | 181.5 | 42.5 | 60 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
