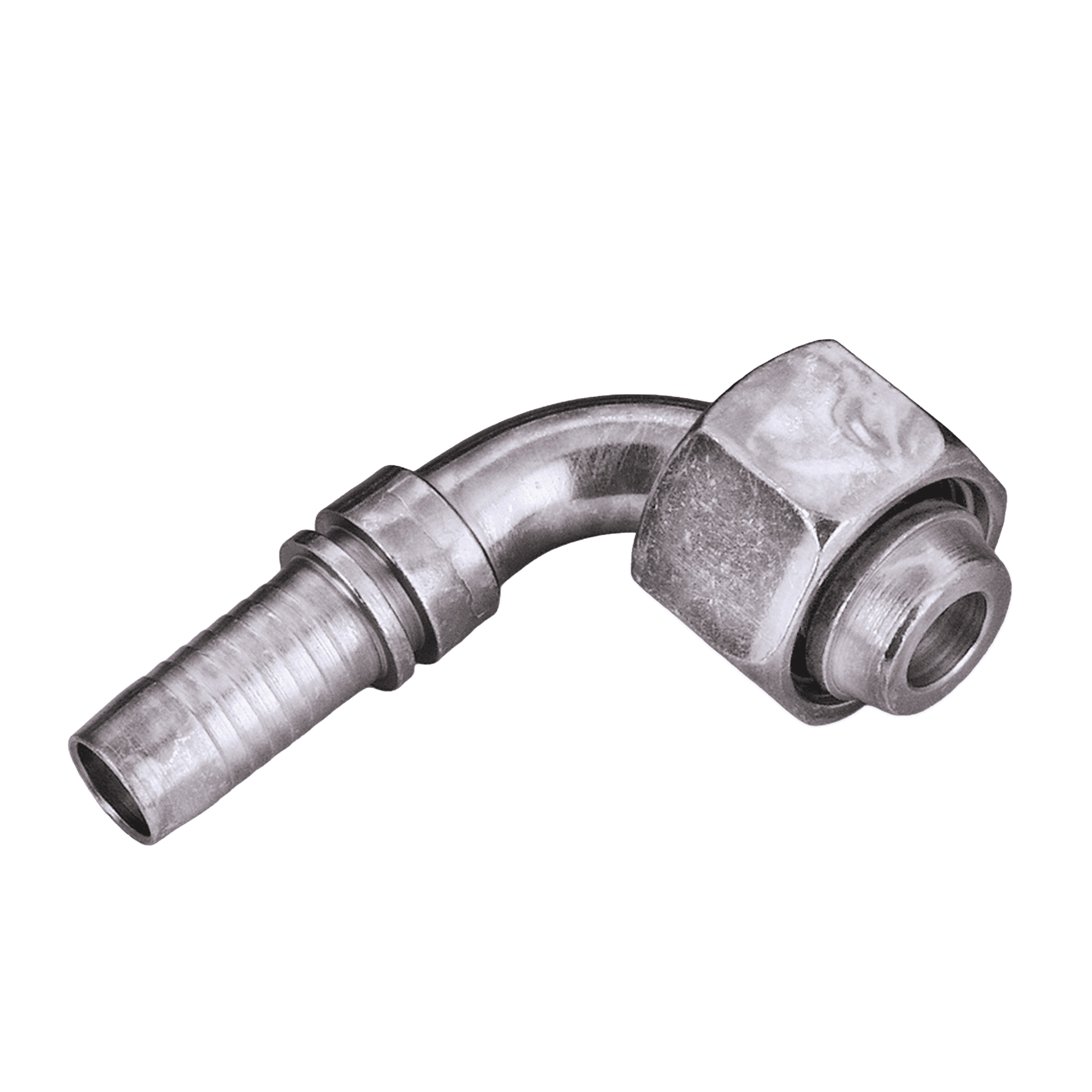

Swage nipple, DKL angle 90°. Light series. For swage Nipples for MH100, MH200, MH400, MH700. Metric nut thread. 24° / 60° Universal sealing head. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 18 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | M 12 x 1.5 | 6 mm | 48.5 | 29.0 | 14 | |
| 6 | 4 | 1/4” | M 12 x 1.5 | 6 mm | 57.0 | 30.5 | 14 | |
| 6 | 4 | 1/4” | M 14 x 1.5 | 8 mm | 55.0 | 30.0 | 17 | |
| 6 | 4 | 1/4” | M 16 x 1.5 | 10 mm | 55.0 | 31.0 | 19 | |
| 6 | 4 | 1/4” | M 18 x 1.5 | 12 mm | 62.5 | 35.0 | 22 | |
| 8 | 5 | 5/16” | M 16 x 1.5 | 10 mm | 58.0 | 30.0 | 19 | |
| 8 | 5 | 5/16” | M 18 x 1.5 | 12 mm | 58.0 | 30.5 | 22 | |
| 10 | 6 | 3/8” | M 16 x 1.5 | 10 mm | 63.0 | 38.0 | 19 | |
| 10 | 6 | 3/8” | M 18 x 1.5 | 12 mm | 64.0 | 35.0 | 22 | |
| 10 | 6 | 3/8” | M 22 x 1.5 | 15 mm | 64.0 | 35.5 | 27 | |
| 12 | 8 | 1/2” | M 22 x 1.5 | 15 mm | 72.5 | 39.5 | 27 | |
| 12 | 8 | 1/2” | M 26 x 1.5 | 18 mm | 83.5 | 49.5 | 32 | |
| 16 | 10 | 5/8” | M 22 x 1.5 | 15 mm | 87.0 | 49.5 | 27 | |
| 16 | 10 | 5/8” | M 26 x 1.5 | 18 mm | 88.0 | 49.5 | 32 | |
| 19 | 12 | 3/4” | M 30 x 2 | 22 mm | 99.5 | 54.5 | 36 | |
| 25 | 16 | 1” | M 36 x 2 | 28 mm | 127.0 | 66.0 | 41 | |
| 31 | 20 | 1.1/4” | M 45 x 2 | 35 mm | 151.5 | 82.0 | 50 | |
| 38 | 24 | 1.1/2” | M 52 x 2 | 42 mm | 176.5 | 95.0 | 60 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
