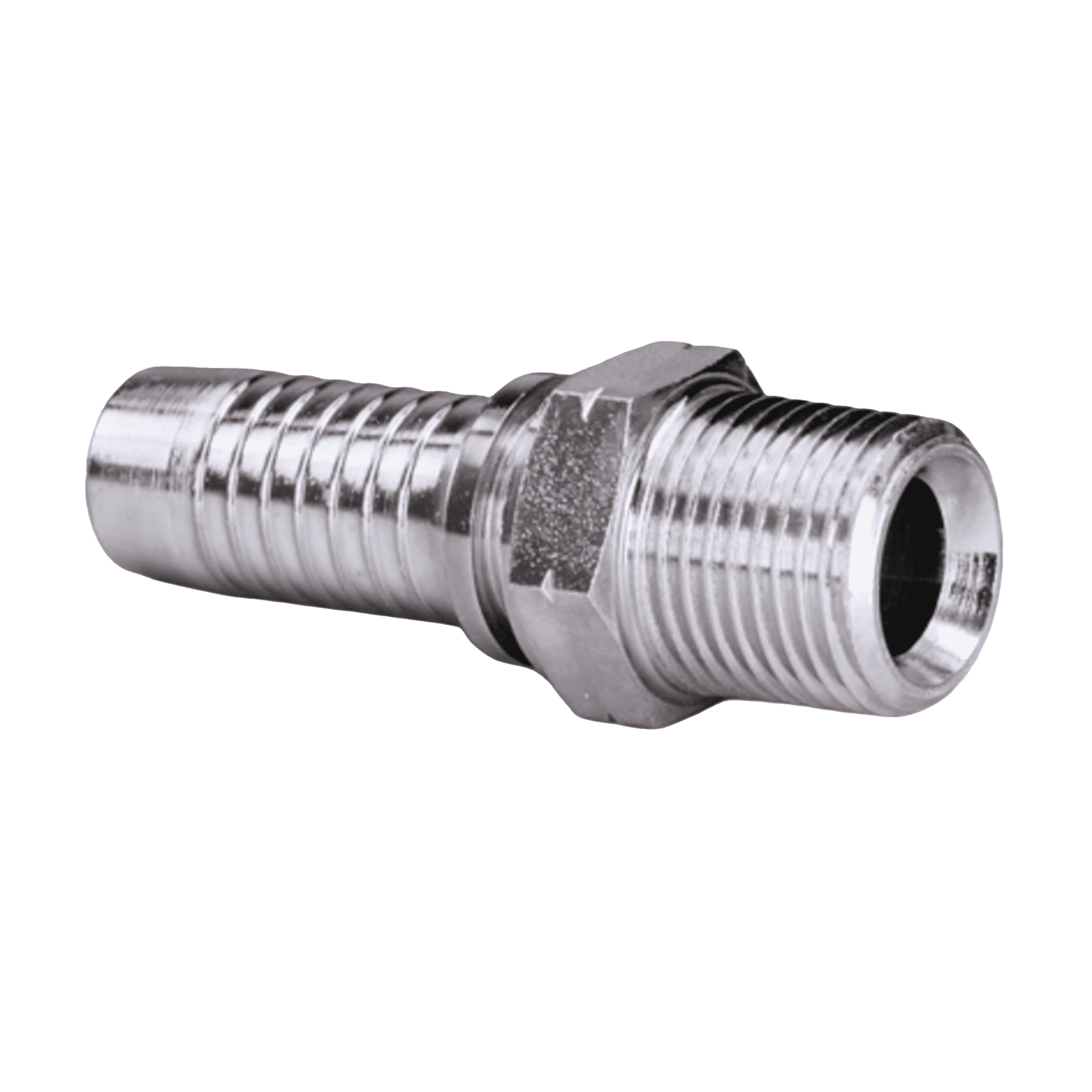

Swage nipple, AGN. For swage Nipples for MH100, MH200, MH400, MH700. NPT external threads. Thread seal, additional 60° inner cone. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 24 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | S1 |
|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | 1/8”–27 NPT | 44.0 | 12 | |
| 5 | 3 | 3/16” | 1/4”–18 NPT | 47.5 | 14 | |
| 6 | 4 | 1/4” | 1/8”–27 NPT | 50.0 | 12 | |
| 6 | 4 | 1/4” | 1/4”–18 NPT | 53.5 | 14 | |
| 6 | 4 | 1/4” | 3/8”–18 NPT | 54.0 | 19 | |
| 8 | 5 | 5/16” | 1/4”–18 NPT | 53.5 | 14 | |
| 8 | 5 | 5/16” | 3/8”–18 NPT | 54.0 | 19 | |
| 10 | 6 | 3/8” | 1/4”–18 NPT | 55.0 | 16 | |
| 10 | 6 | 3/8” | 3/8”–18 NPT | 56.5 | 19 | |
| 10 | 6 | 3/8” | 1/2”–14 NPT | 61.0 | 22 | |
| 12 | 8 | 1/2” | 3/8”–18 NPT | 57.5 | 19 | |
| 12 | 8 | 1/2” | 1/2”–14 NPT | 62.0 | 22 | |
| 12 | 8 | 1/2” | 3/4”–14 NPT | 64.5 | 27 | |
| 16 | 10 | 5/8” | 1/2”–14 NPT | 68.0 | 24 | |
| 16 | 10 | 5/8” | 3/4”–14 NPT | 68.0 | 27 | |
| 19 | 12 | 3/4” | 1/2”–14 NPT | 74.5 | 27 | |
| 19 | 12 | 3/4” | 3/4”–14 NPT | 76.5 | 27 | |
| 19 | 12 | 3/4” | 1”–11.5 NPT | 80.5 | 36 | |
| 25 | 16 | 1” | 3/4”–14 NPT | 84.5 | 36 | |
| 25 | 16 | 1” | 1”–11.5 NPT | 88.5 | 36 | |
| 25 | 16 | 1” | 1.1/4”–11.5 NPT | 91.5 | 46 | |
| 31 | 20 | 1.1/4” | 1.1/4”–11.5 NPT | 101.0 | 46 | |
| 38 | 24 | 1.1/2” | 1.1/2”–11.5 NPT | 105.5 | 50 | |
| 51 | 32 | 2” | 2”–11.5 NPT | 127.5 | 65 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
