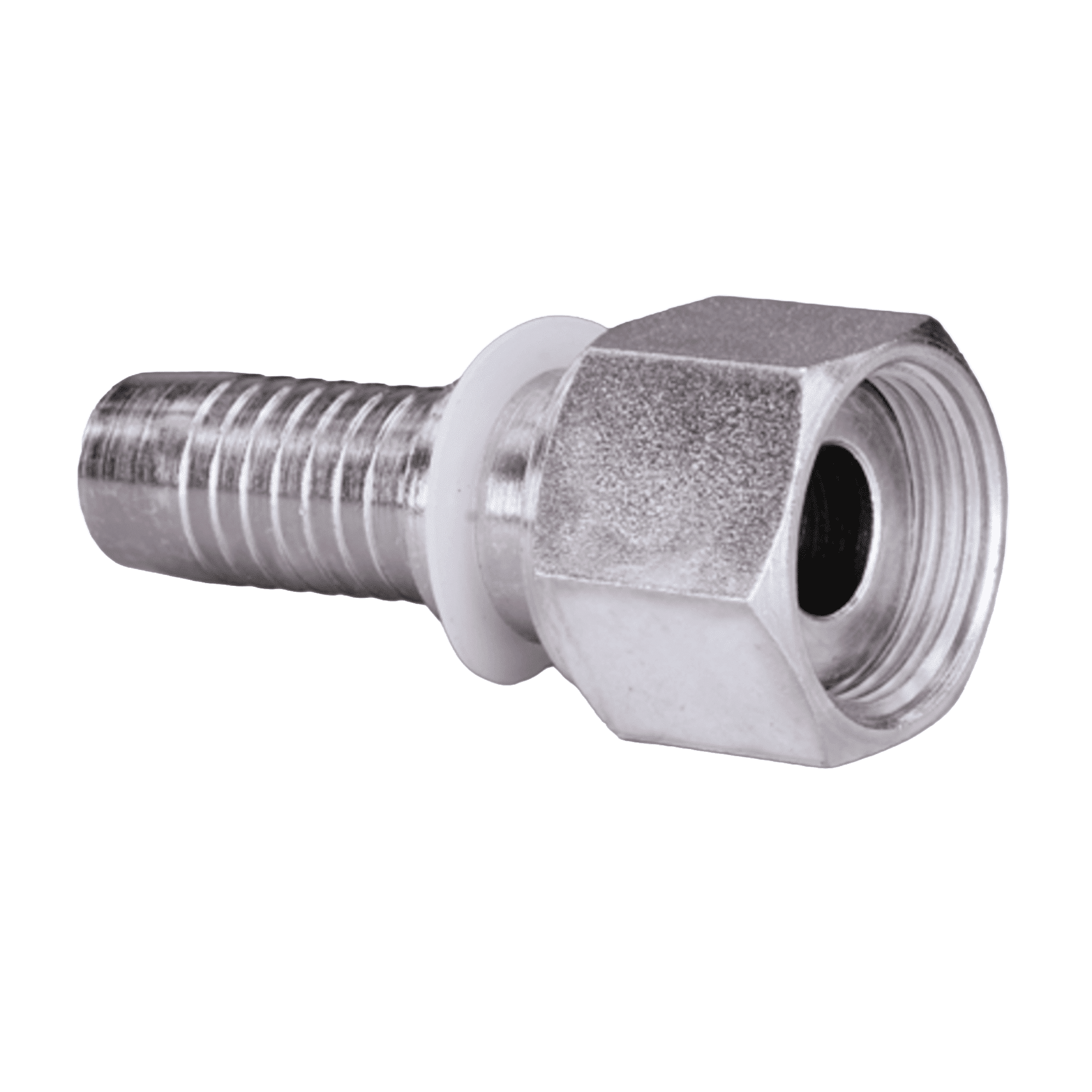

Swage nipple, ORFS. For swage Nipples for MH100, MH200, MH400, MH700. UN / UNF nut threads. Flat sealing. To ISO 8434-3. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 16 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | S1 |
|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 9/16”-18 UNF | 49.5 | 17 | |
| 6 | 4 | 1/4” | 11/16”–16 UN | 51.5 | 22 | |
| 8 | 5 | 5/16” | 11/16”–16 UN | 51.5 | 22 | |
| 10 | 6 | 3/8” | 11/16”–16 UN | 53.0 | 22 | |
| 10 | 6 | 3/8” | 13/16”–16 UN | 56.0 | 24 | |
| 12 | 8 | 1/2” | 13/16”–16 UN | 57.0 | 24 | |
| 12 | 8 | 1/2” | 1”–14 UNS | 61.0 | 30 | |
| 12 | 8 | 1/2” | 1.3/16”–12 UN | 65.5 | 36 | |
| 16 | 10 | 5/8” | 1”–14 UNS | 65.5 | 30 | |
| 16 | 10 | 5/8” | 1.3/16”–12 UN | 70.0 | 36 | |
| 19 | 12 | 3/4” | 1”–14 UNS | 76.0 | 30 | |
| 19 | 12 | 3/4” | 1.3/16”–12 UN | 74.5 | 36 | |
| 19 | 12 | 3/4” | 1.7/16”–12 UN | 77.5 | 41 | |
| 25 | 16 | 1” | 1.7/16”–12 UN | 83.5 | 41 | |
| 31 | 20 | 1.1/4” | 1.11/16”–12 UN | 92.5 | 50 | |
| 38 | 24 | 1.1/2” | 2”–12 UN | 96.0 | 60 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
