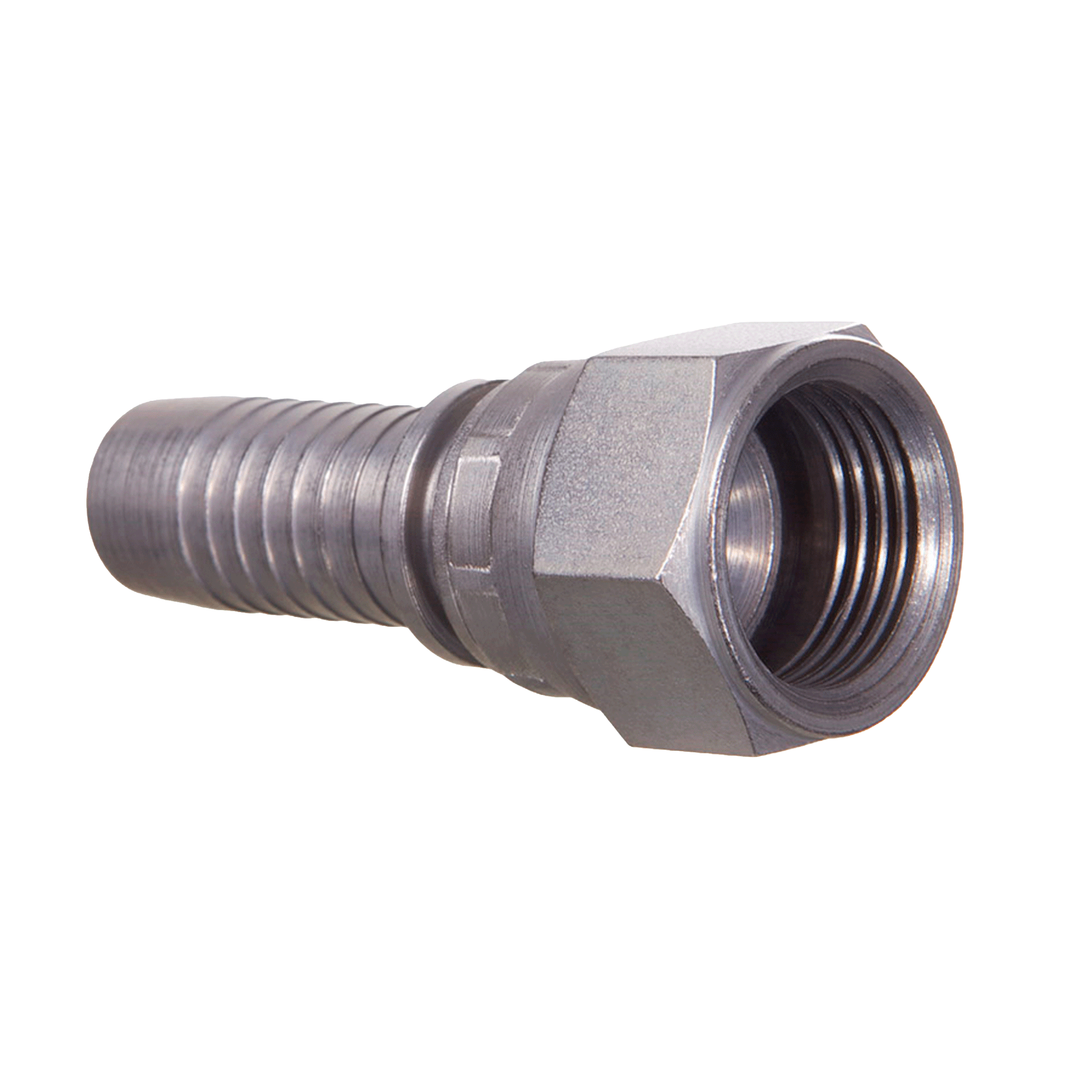

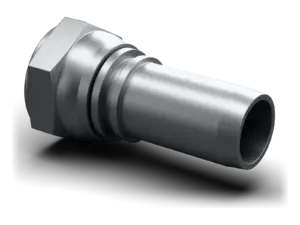

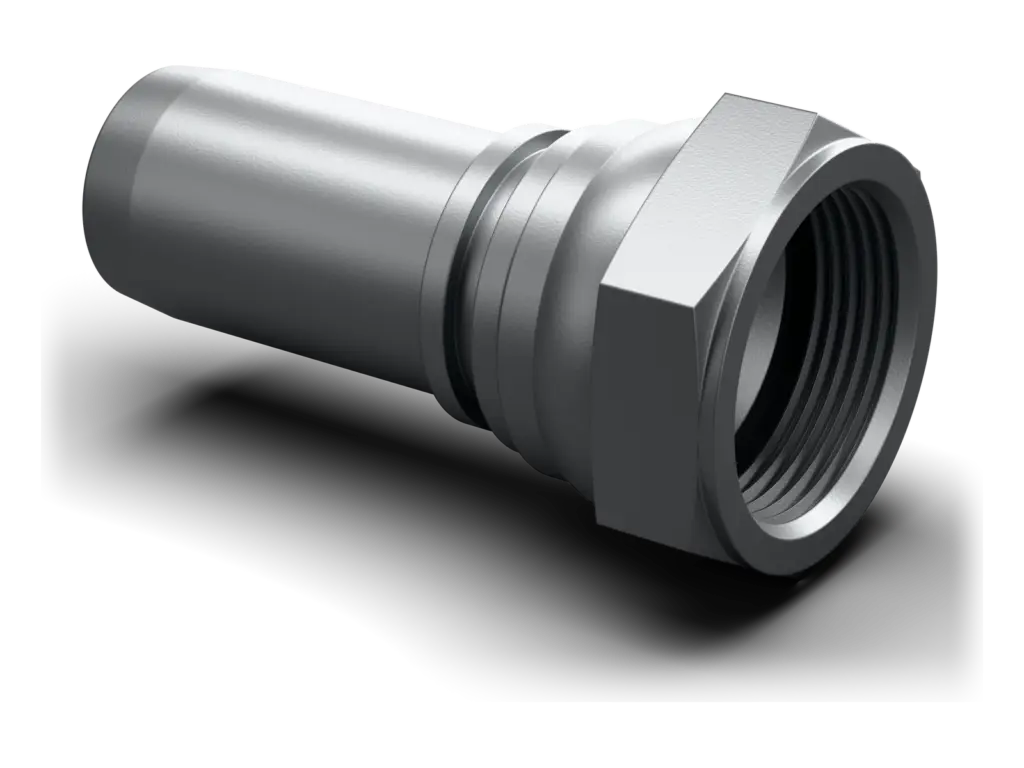

Swage nipple, DKJ. For swage Nipples for MH100, MH200, MH400, MH700. UN / UNF nut threads. 74° inner cone. To ISO 8434-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 30 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN mm | Size | Inches | G1 | L1 mm | S1 mm |
|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | 7/16”-20 UNF | 36.0 | 14 | |
| 6 | 4 | 1/4” | 7/16”-20 UNF | 42.0 | 14 | |
| 6 | 4 | 1/4” | 1/2”-20 UNF | 43.0 | 17 | |
| 6 | 4 | 1/4” | 9/16”-18 UNF | 44.5 | 19 | |
| 8 | 5 | 5/16” | 1/2”-20 UNF | 43.0 | 17 | |
| 8 | 5 | 5/16” | 9/16”-18 UNF | 45.0 | 19 | |
| 8 | 5 | 5/16” | 3/4”-16 UNF | 46.5 | 24 | |
| 10 | 6 | 3/8” | 1/2”-20 UNF | 47.0 | 17 | |
| 10 | 6 | 3/8” | 9/16”-18 UNF | 46.0 | 19 | |
| 10 | 6 | 3/8” | 3/4”-16 UNF | 48.5 | 24 | |
| 10 | 6 | 3/8” | 7/8”-14 UNF | 49.5 | 27 | |
| 12 | 8 | 1/2” | 9/16”-18 UNF | 49.0 | 19 | |
| 12 | 8 | 1/2” | 3/4”-16 UNF | 48.0 | 24 | |
| 12 | 8 | 1/2” | 7/8”-14 UNF | 50.5 | 27 | |
| 12 | 8 | 1/2” | 1.1/16”–12 UN | 51.0 | 32 | |
| 16 | 10 | 5/8” | 7/8”-14 UNF | 53.5 | 27 | |
| 16 | 10 | 5/8” | 1.1/16”–12 UN | 56.0 | 32 | |
| 19 | 12 | 3/4” | 1.3/16”–12 UN | 64.0 | 36 | |
| 19 | 12 | 3/4” | 7/8”-14 UNF | 62.5 | 27 | |
| 19 | 12 | 3/4” | 1.1/16”–12 UN | 63.0 | 32 | |
| 19 | 12 | 3/4” | 1.5/16”–12 UN | 64.0 | 41 |
| Identification | DN mm | Size | Inches | G1 | L1 mm | S1 mm |
|---|---|---|---|---|---|---|
| 25 | 16 | 1” | 1.1/16”–12 UN | 71.0 | 32 | |
| 25 | 16 | 1” | 1.5/16”–12 UN | 72.0 | 41 | |
| 25 | 16 | 1” | 1.5/8”–12 UN | 74.0 | 50 | |
| 31 | 20 | 1.1/4” | 1.5/16”–12 UN | 83.5 | 41 | |
| 31 | 20 | 1.1/4” | 1.5/8”–12 UN | 82.0 | 50 | |
| 31 | 20 | 1.1/4” | 1.7/8”–12 UN | 84.0 | 60 | |
| 38 | 24 | 1.1/2” | 1.5/8”–12 UN | 88.0 | 50 | |
| 38 | 24 | 1.1/2” | 1.7/8”–12 UN | 87.5 | 60 | |
| 51 | 32 | 2” | 2.1/2”–12 UN | 108.0 | 75 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
