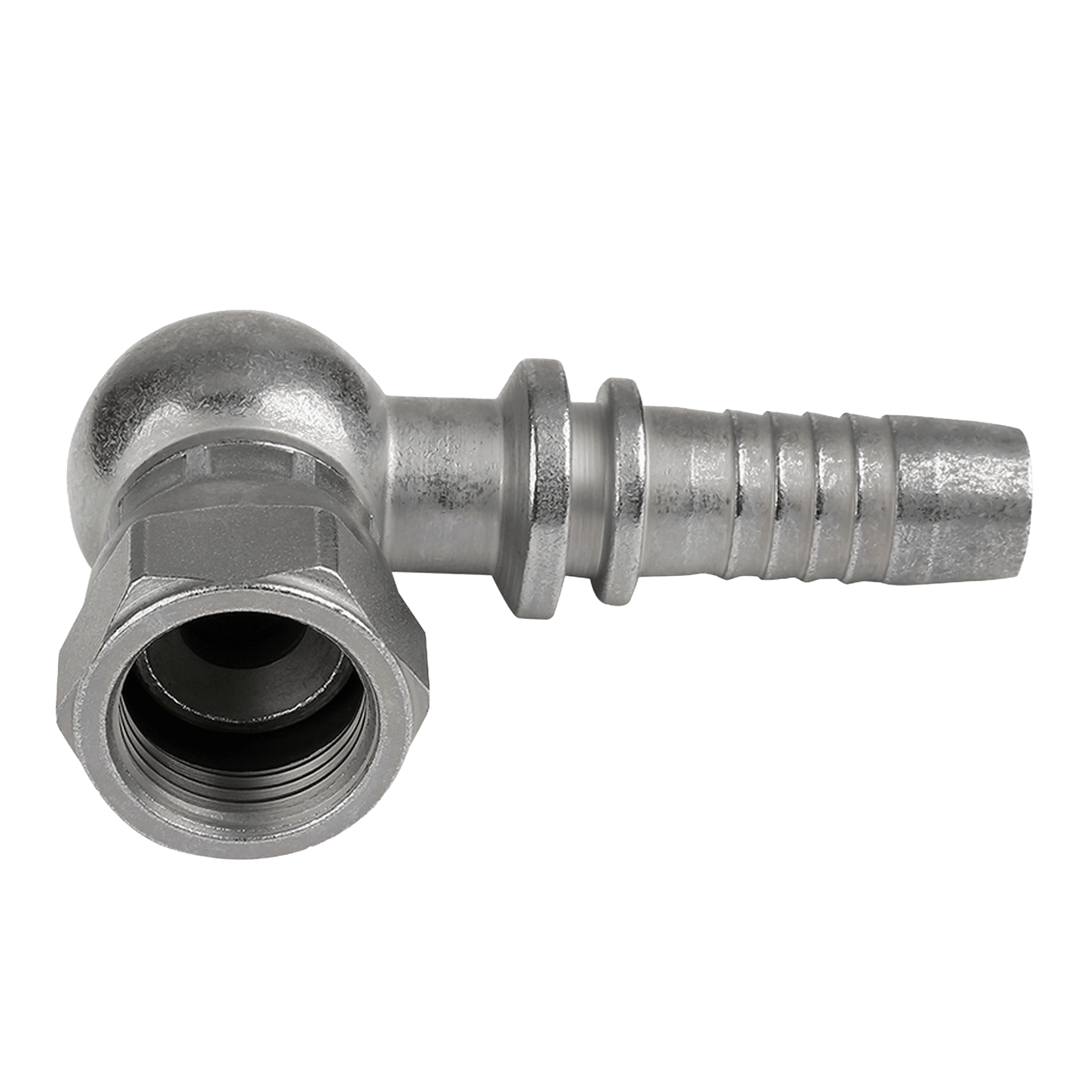

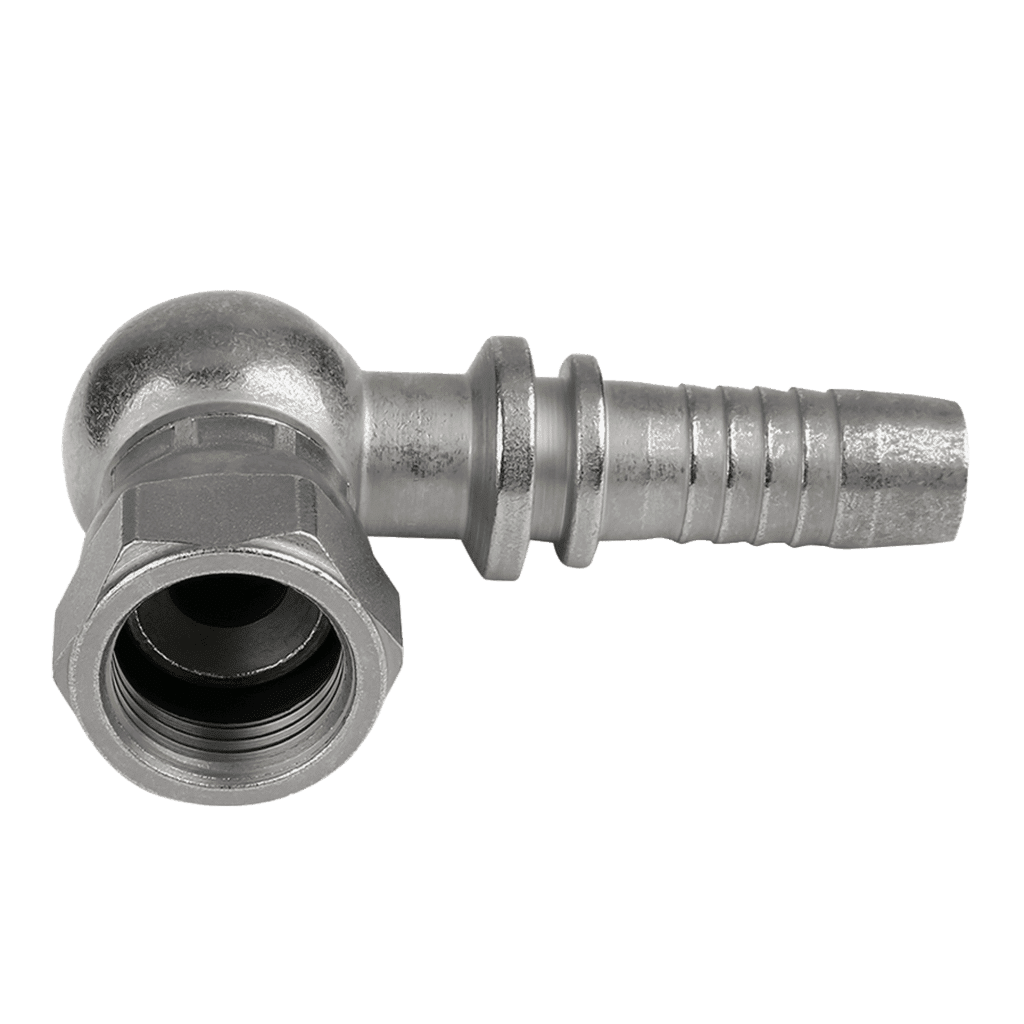

Swage nipple, DKJ Comp. angle 90°. For swage Nipples for MH100, MH200, MH400, MH700. UN / UNF nut threads. 74° inner cone. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 12 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 7/16”-20 UNF | 50.0 | 17.0 | 14 | |
| 6 | 4 | 1/4” | 1/2”-20 UNF | 51.1 | 19.0 | 17 | |
| 6 | 4 | 1/4” | 9/16”-18 UNF | 53.5 | 20.0 | 19 | |
| 8 | 5 | 5/16” | 9/16”-18 UNF | 54.0 | 20.0 | 19 | |
| 10 | 6 | 3/8” | 9/16”-18 UNF | 55.5 | 20.0 | 19 | |
| 10 | 6 | 3/8” | 3/4”-16 UNF | 57.6 | 21.0 | 24 | |
| 12 | 8 | 1/2” | 3/4”-16 UNF | 59.6 | 21.0 | 24 | |
| 12 | 8 | 1/2” | 7/8”-14 UNF | 59.6 | 25.0 | 27 | |
| 16 | 10 | 5/8” | 7/8”-14 UNF | 64.1 | 25.0 | 27 | |
| 16 | 10 | 5/8” | 1.1/16”–12 UN | 69.8 | 28.0 | 32 | |
| 19 | 12 | 3/4” | 1.1/16”–12 UN | 74.8 | 28.0 | 32 | |
| 25 | 16 | 1” | 1.5/16”–12 UN | 92.2 | 34.0 | 41 |
Note: Choose the appropriate ferrule based on the hose type.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
