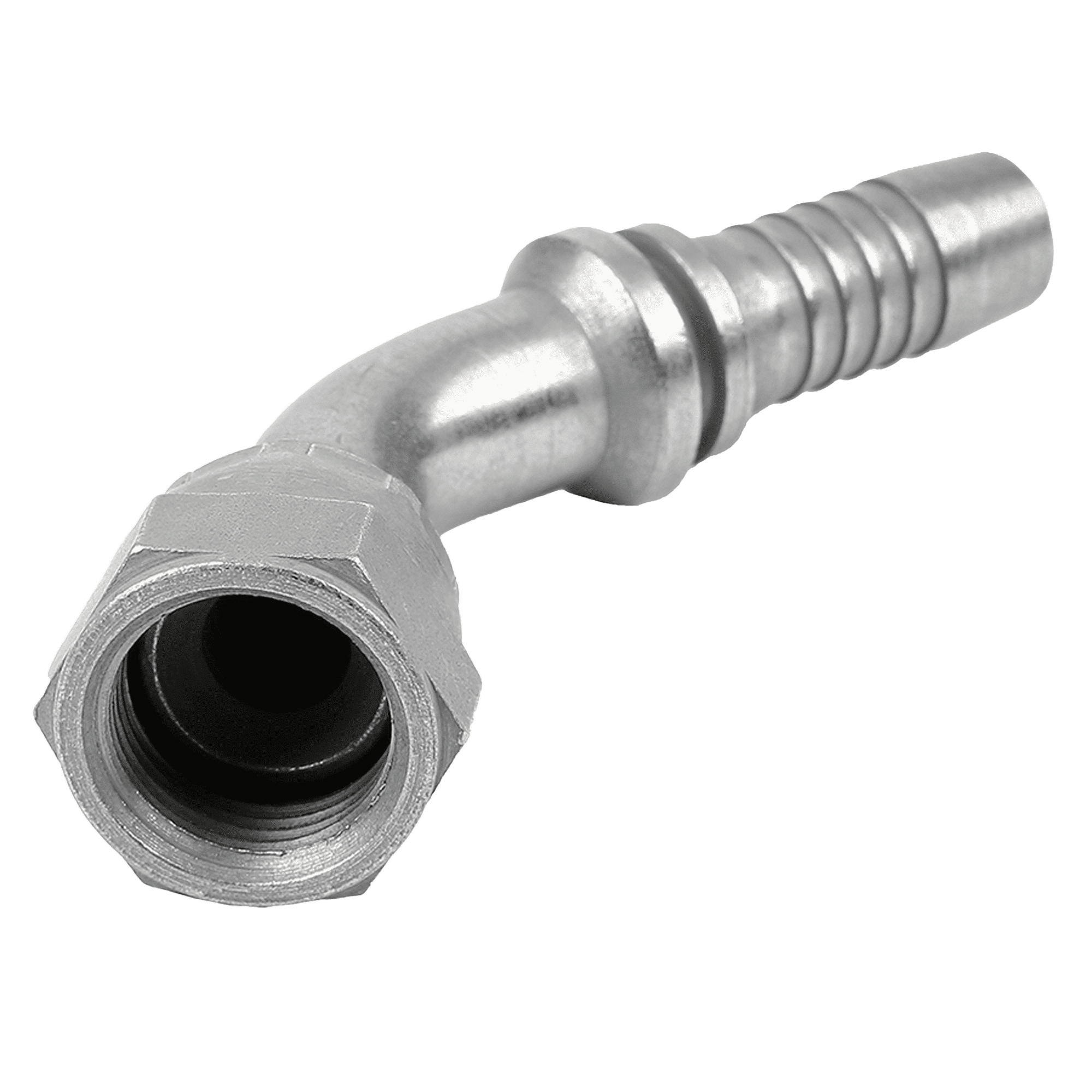

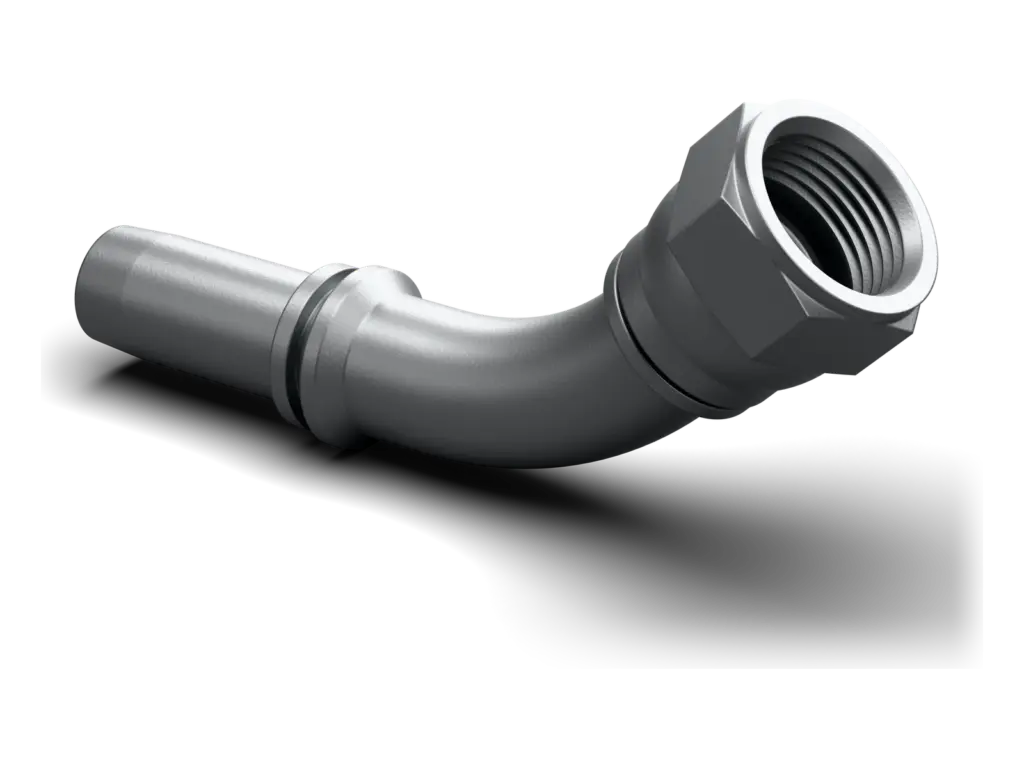

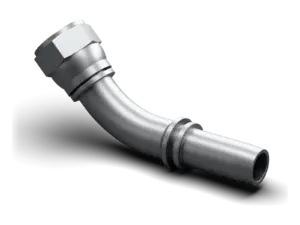

Swage nipple, DKJ angle 45°. For swage Nipples for MH100, MH200, MH400, MH700. UN / UNF nut threads. 74° inner cone. To ISO 8434-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 26 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | 7/16”-20 UNF | 54.5 | 12.5 | 14 | |
| 6 | 4 | 1/4” | 7/16”-20 UNF | 61.5 | 14.0 | 14 | |
| 6 | 4 | 1/4” | 1/2”-20 UNF | 62.0 | 13.5 | 17 | |
| 6 | 4 | 1/4” | 9/16”-18 UNF | 62.5 | 14.0 | 19 | |
| 8 | 5 | 5/16” | 1/2”-20 UNF | 68.5 | 18.5 | 17 | |
| 8 | 5 | 5/16” | 9/16”-18 UNF | 64.0 | 15.0 | 19 | |
| 10 | 6 | 3/8” | 1/2”-20 UNF | 73.0 | 18.5 | 17 | |
| 10 | 6 | 3/8” | 9/16”-18 UNF | 70.5 | 17.5 | 19 | |
| 10 | 6 | 3/8” | 3/4”-16 UNF | 72.0 | 19.0 | 24 | |
| 10 | 6 | 3/8” | 7/8”-14 UNF | 72.5 | 19.5 | 27 | |
| 12 | 8 | 1/2” | 3/4”-16 UNF | 80.5 | 20.5 | 24 | |
| 12 | 8 | 1/2” | 7/8”-14 UNF | 81.5 | 21.5 | 27 | |
| 12 | 8 | 1/2” | 1.1/16”–12 UN | 82.5 | 22.5 | 32 | |
| 16 | 10 | 5/8” | 7/8”-14 UNF | 96.5 | 27 | 27 | |
| 16 | 10 | 5/8” | 1.1/16”–12 UN | 97.0 | 26.0 | 32 | |
| 16 | 10 | 5/8” | 1.3/16”–12 UN | 93.5 | 30.0 | 36 | |
| 19 | 12 | 3/4” | 1.1/16”–12 UN | 108.0 | 28.5 | 32 | |
| 19 | 12 | 3/4” | 1.3/16”–12 UN | 108.5 | 29.0 | 36 | |
| 19 | 12 | 3/4” | 1.5/16”–12 UN | 108.5 | 29.0 | 41 | |
| 25 | 16 | 1” | 1.3/16”–12 UN | 117.5 | 32.5 | 36 | |
| 25 | 16 | 1” | 1.5/16”–12 UN | 134.5 | 32.5 | 41 | |
| 25 | 16 | 1” | 1.5/8”–12 UN | 135.5 | 34.0 | 50 | |
| 31 | 20 | 1.1/4” | 1.5/8”–12 UN | 161.0 | 41.0 | 50 | |
| 31 | 20 | 1.1/4” | 1.7/8”–12 UN | 162.0 | 42.0 | 60 | |
| 38 | 24 | 1.1/2” | 1.7/8”–12 UN | 184.5 | 46.5 | 60 | |
| 51 | 32 | 2” | 2.1/2”–12 UN | 231.0 | 67.0 | 75 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
