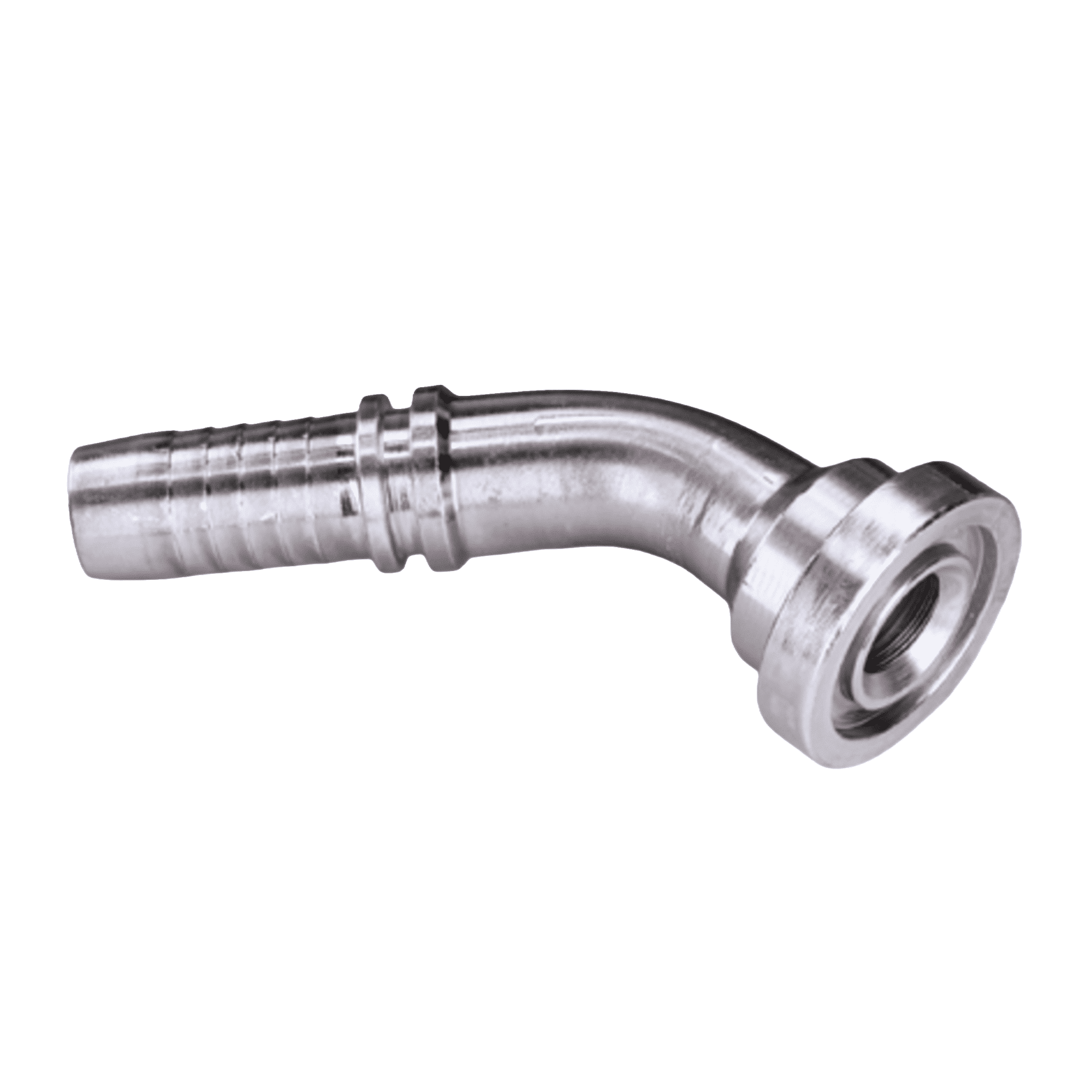

Swage nipple, SFL angle 45°. For swage Nipples for MH100, MH200, MH400, MH700. SAE flange connection 3000 PSI. Flat seal with SF O-ring. To SAE J518, ISO 6162-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 16 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | Flange size | D mm | H mm | L1 mm | L2 mm |
|---|---|---|---|---|---|---|---|---|
| 12 | 8 | 1/2” | 1/2” | 30.2 | 6.80 | 81.0 | 21.0 | |
| 12 | 8 | 1/2” | 3/4” | 38.1 | 6.80 | 84.5 | 24.5 | |
| 16 | 10 | 5/8” | 1/2” | 30.2 | 6.80 | 100.0 | 26.5 | |
| 16 | 10 | 5/8” | 3/4” | 38.1 | 6.80 | 96.5 | 27.5 | |
| 19 | 12 | 3/4” | 3/4” | 38.1 | 6.80 | 107.5 | 28.0 | |
| 19 | 12 | 3/4” | 1” | 44.4 | 8.10 | 109.5 | 30.0 | |
| 25 | 16 | 1” | 3/4” | 38.1 | 6.70 | 128.0 | 30.0 | |
| 25 | 16 | 1” | 1” | 44.4 | 8.00 | 132.0 | 30.5 | |
| 25 | 16 | 1” | 1.1/4” | 50.8 | 8.10 | 134.0 | 32.0 | |
| 31 | 20 | 1.1/4” | 1” | 44.4 | 8.10 | 156.0 | 41.0 | |
| 31 | 20 | 1.1/4” | 1.1/4” | 50.8 | 8.10 | 156.0 | 36.0 | |
| 31 | 20 | 1.1/4” | 1.1/2” | 60.3 | 8.10 | 160.0 | 40.0 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 60.3 | 8.10 | 184.0 | 46.0 | |
| 38 | 24 | 1.1/2” | 2” | 71.4 | 9.60 | 184.0 | 46.0 | |
| 51 | 32 | 2” | 1.1/2” | 60.3 | 8.10 | 182.0 | 42.0 | |
| 51 | 32 | 2” | 2” | 71.4 | 9.60 | 219.0 | 50.0 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
