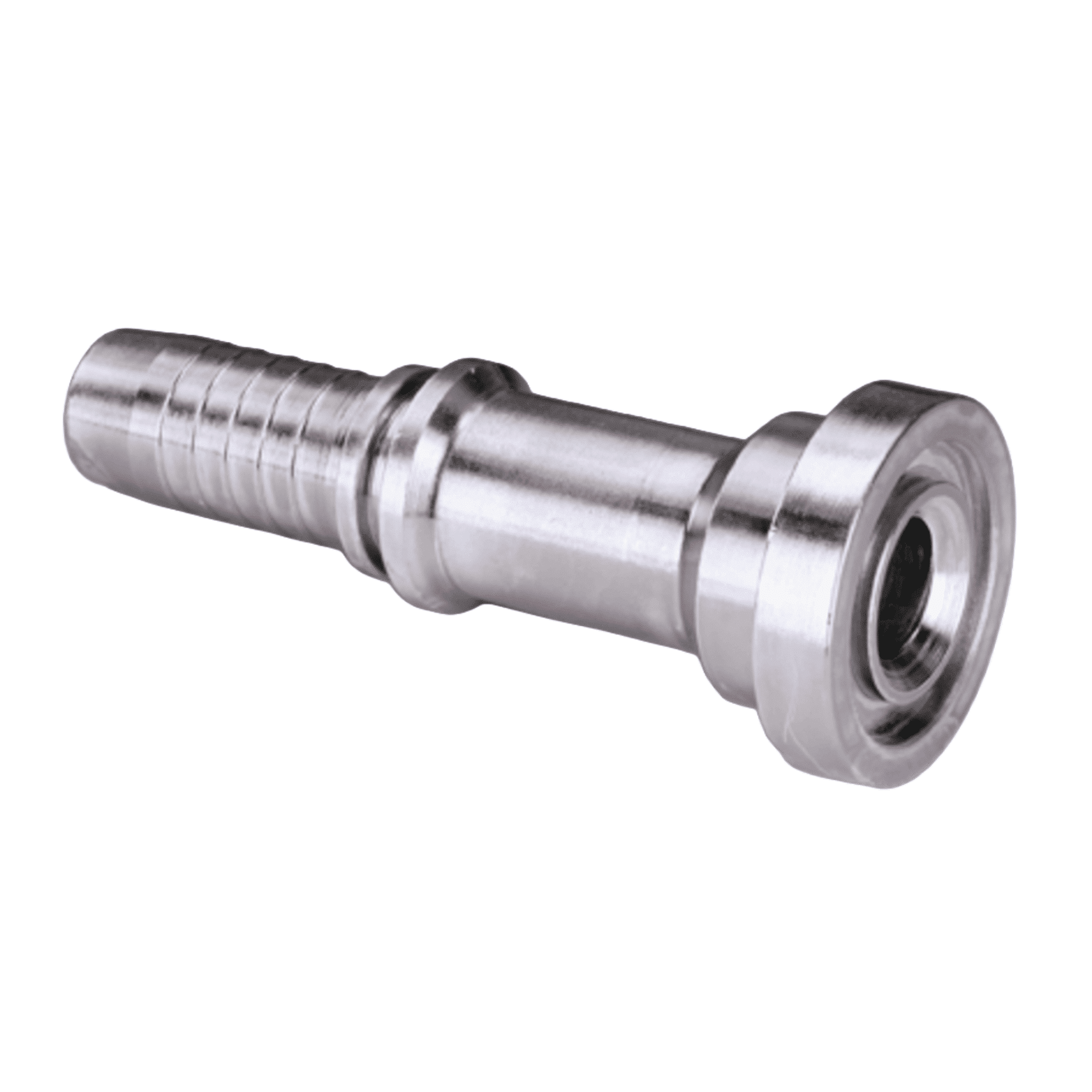

Swage nipple, SFS. For swage Nipples for MH100, MH200, MH400, MH700. SAE flange connection 6000 PSI. Flat seal with SF O-ring. To SAE J518, ISO 6162-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 18 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | Flange size | D mm | H mm | L1 mm |
|---|---|---|---|---|---|---|---|
| 12 | 8 | 1/2” | 1/2” | 31.8 | 7.8 | 81.5 | |
| 12 | 8 | 1/2” | 3/4” | 41.3 | 8.8 | 89.5 | |
| 16 | 10 | 5/8” | 1/2” | 31.8 | 7.8 | 86.0 | |
| 16 | 10 | 5/8” | 3/4” | 41.3 | 8.8 | 97.0 | |
| 16 | 10 | 5/8” | 1” | 47.6 | 9.6 | 104.0 | |
| 19 | 12 | 3/4” | 1/2” | 31.8 | 7.8 | 93.5 | |
| 19 | 12 | 3/4” | 3/4” | 41.3 | 8.8 | 104.5 | |
| 19 | 12 | 3/4” | 1” | 47.6 | 9.6 | 109.0 | |
| 25 | 16 | 1” | 3/4” | 41.3 | 8.8 | 112.5 | |
| 25 | 16 | 1” | 1” | 47.6 | 9.6 | 121.5 | |
| 25 | 16 | 1” | 1.1/4” | 54.0 | 10.4 | 126.0 | |
| 31 | 20 | 1.1/4” | 1” | 47.6 | 9.6 | 131.5 | |
| 31 | 20 | 1.1/4” | 1.1/4” | 54.0 | 10.4 | 138.0 | |
| 31 | 20 | 1.1/4” | 1.1/2” | 63.5 | 12.7 | 142.5 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 63.5 | 12.7 | 150.5 | |
| 38 | 24 | 1.1/2” | 1.1/4” | 54.0 | 10.4 | 141.5 | |
| 38 | 24 | 1.1/2” | 2” | 79.4 | 12.7 | 155.0 | |
| 51 | 32 | 2” | 2” | 79.4 | 12.7 | 174.0 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
