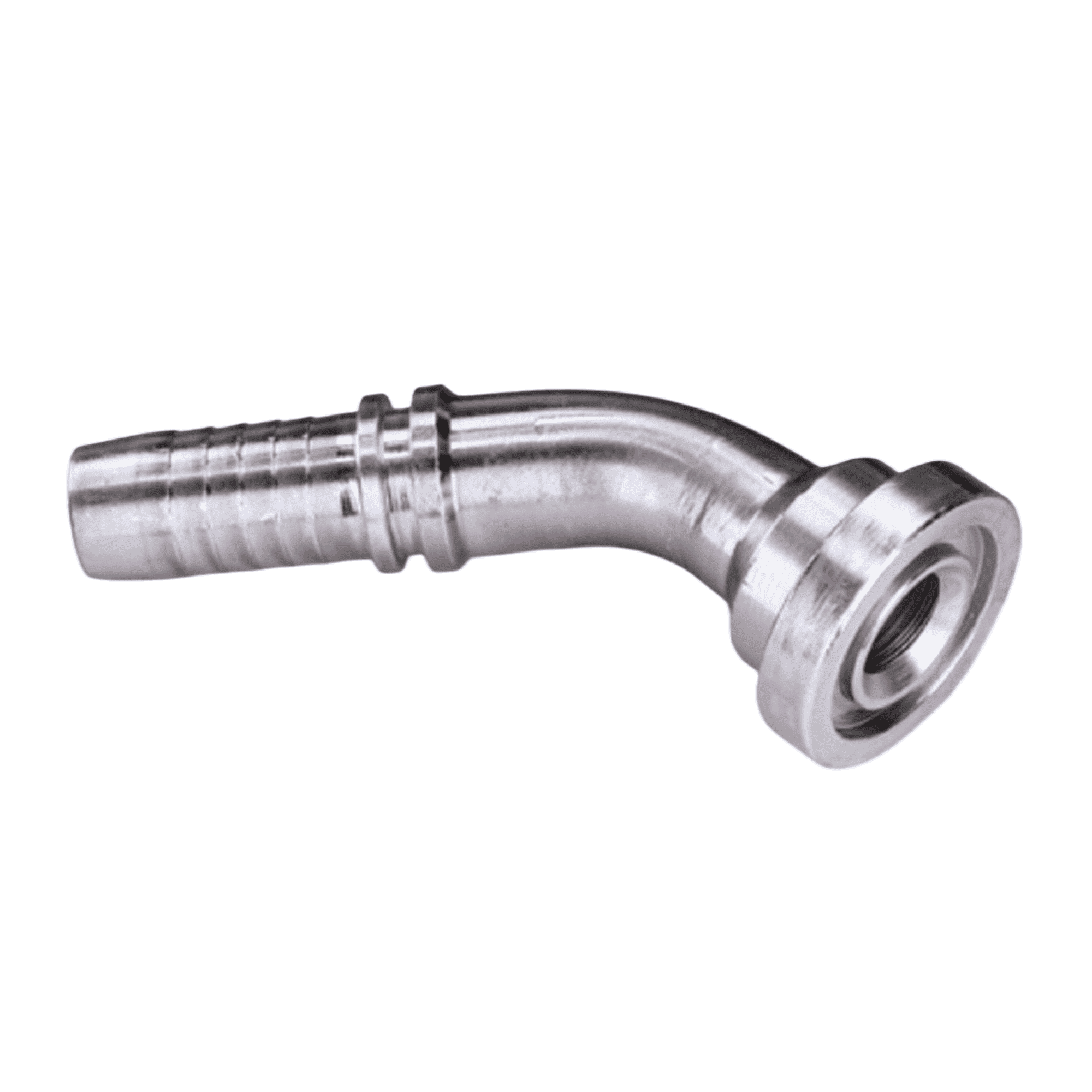

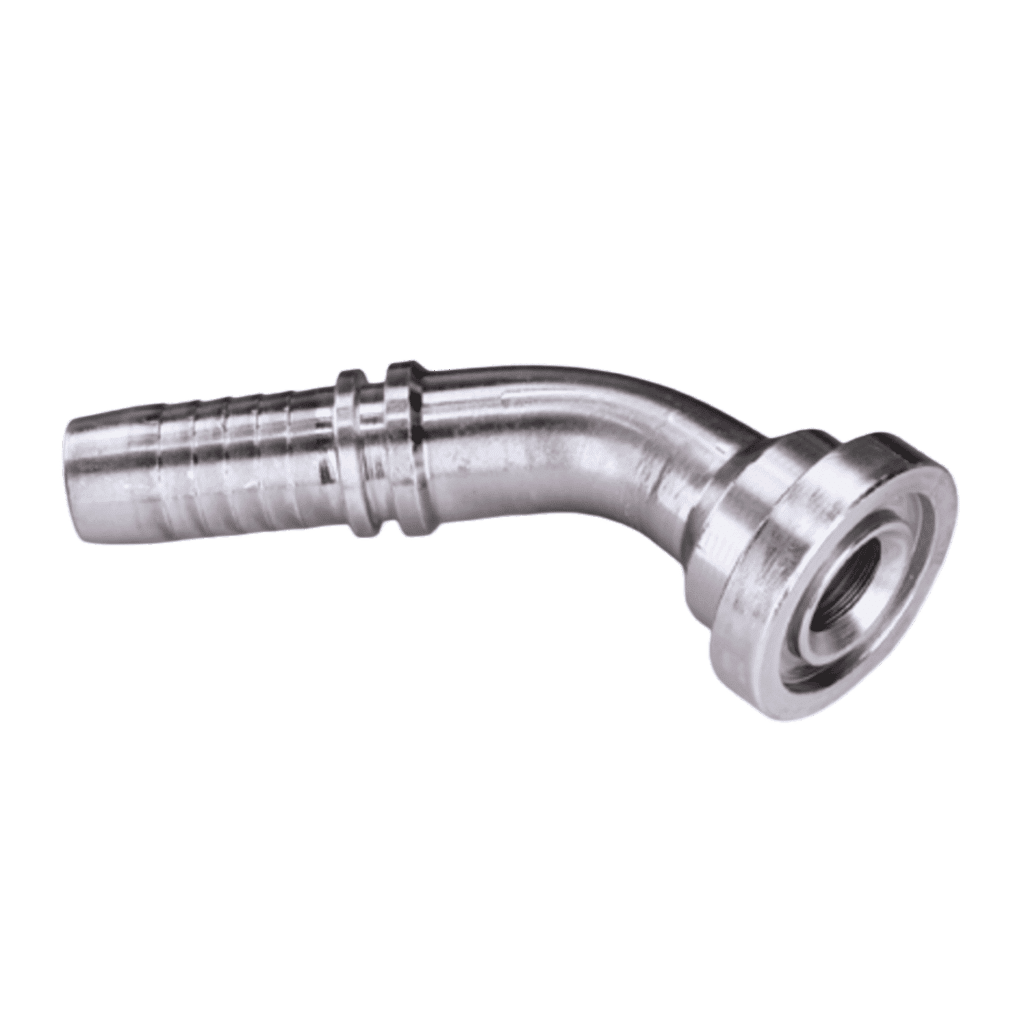

Swage nipple, SFS angle 45°. For swage Nipples for MH100, MH200, MH400, MH700. SAE flange connection 6000 PSI. Flat seal with SF O-ring. To SAE J518, ISO 6162-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 16 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | Flange size | D mm | H mm | L1 mm | L2 mm |
|---|---|---|---|---|---|---|---|---|
| 12 | 8 | 1/2” | 1/2” | 31.8 | 7.8 | 82.0 | 22.0 | |
| 12 | 8 | 1/2” | 3/4” | 41.3 | 8.8 | 87.5 | 27.5 | |
| 16 | 10 | 5/8” | 1/2” | 31.8 | 7.8 | 105.0 | 29.0 | |
| 16 | 10 | 5/8” | 3/4” | 41.3 | 8.8 | 100.5 | 30.5 | |
| 16 | 10 | 5/8” | 1” | 47.6 | 9.6 | 123.0 | 33.0 | |
| 19 | 12 | 3/4” | 3/4” | 41.3 | 8.8 | 110.0 | 30.5 | |
| 19 | 12 | 3/4” | 1” | 47.6 | 9.6 | 114.5 | 35.0 | |
| 25 | 16 | 1” | 3/4” | 41.3 | 8.8 | 129.0 | 31.0 | |
| 25 | 16 | 1” | 1” | 47.6 | 9.6 | 137.0 | 35.5 | |
| 25 | 16 | 1” | 1.1/4” | 54.0 | 10.4 | 142.0 | 40.5 | |
| 31 | 20 | 1.1/4” | 1.1/4” | 54.0 | 10.4 | 164.0 | 44.0 | |
| 31 | 20 | 1.1/4” | 1.1/2” | 63.5 | 12.7 | 170.0 | 50.5 | |
| 38 | 24 | 1.1/2” | 1.1/4” | 54.0 | 10.4 | 168.5 | 44.0 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 63.5 | 12.7 | 190.0 | 52.0 | |
| 38 | 24 | 1.1/2” | 2” | 79.4 | 12.7 | 201.0 | 63.5 | |
| 51 | 32 | 2” | 2” | 79.4 | 12.7 | 236.0 | 67.5 |

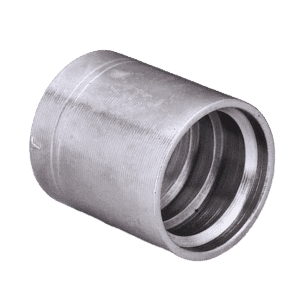

Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
