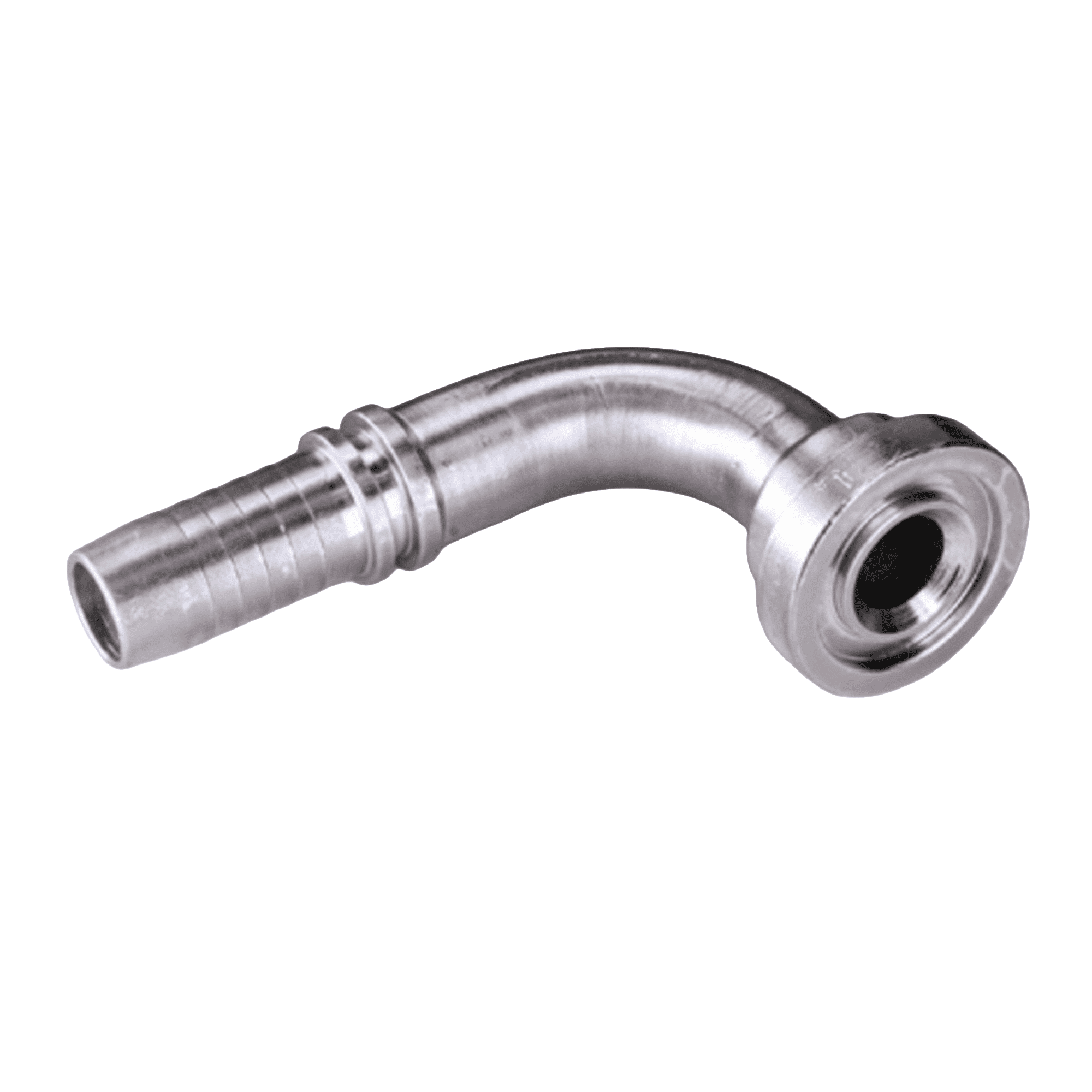

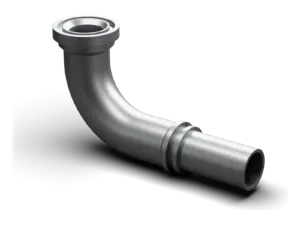

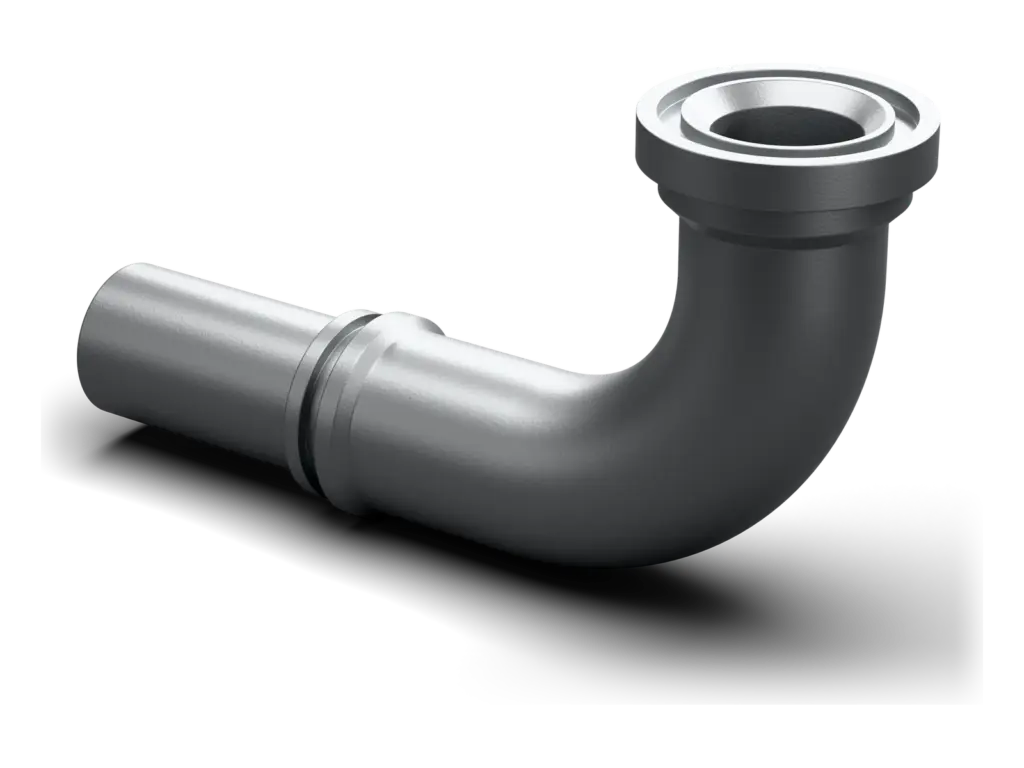

Swage nipple, SFL angle 90°. For swage Nipples for MH100, MH200, MH400, MH700. SAE flange connection 3000 PSI. Flat seal with SF O-ring. To SAE J518, ISO 6162-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 28 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | Flange size | D mm | H mm | L1 mm | L2 mm |
|---|---|---|---|---|---|---|---|---|
| 12 | 8 | 1/2” | 1/2” | 30.2 | 6.80 | 71.5 | 43.5 | |
| 12 | 8 | 1/2” | 3/4” | 38.1 | 6.80 | 71.5 | 48.5 | |
| 12 | 8 | 1/2” | 1” | 44.5 | 8.10 | 94.0 | 65.0 | |
| 16 | 10 | 5/8” | 1/2” | 30.2 | 6.80 | 91.0 | 56.0 | |
| 16 | 10 | 5/8” | 3/4” | 38.1 | 6.80 | 87.0 | 55.0 | |
| 16 | 10 | 5/8” | 1” | 44.5 | 8.10 | 106.0 | 66.0 | |
| 19 | 12 | 3/4” | 3/4” | 38.1 | 6.80 | 99.0 | 57.0 | |
| 19 | 12 | 3/4” | 1” | 44.5 | 8.10 | 99.0 | 60.0 | |
| 19 | 12 | 3/4” | 1.1/4” | 50.8 | 8.10 | 121.0 | 74.0 | |
| 25 | 16 | 1” | 3/4” | 38.1 | 6.80 | 115.0 | 66.0 | |
| 25 | 16 | 1” | 1” | 44.5 | 8.10 | 126.0 | 67.5 | |
| 25 | 16 | 1” | 1.1/4” | 50.8 | 8.10 | 126.0 | 70.0 | |
| 25 | 16 | 1” | 1.1/2” | 60.3 | 8.10 | 148.0 | 95.0 | |
| 31 | 20 | 1.1/4” | 1” | 44.5 | 8.10 | 134.0 | 74.0 | |
| 31 | 20 | 1.1/4” | 1.1/4” | 50.8 | 8.10 | 150.5 | 79.0 | |
| 31 | 20 | 1.1/4” | 1.1/4” | 50.8 | 8.10 | 150.5 | 88.0 | |
| 31 | 20 | 1.1/4” | 1.1/4” | 50.8 | 8.10 | 150.5 | 120.0 | |
| 31 | 20 | 1.1/4” | 1.1/2” | 60.3 | 8.10 | 150.5 | 84.5 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 60.3 | 8.10 | 169.0 | 99.0 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 60.3 | 8.10 | 169.0 | 80.0 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 60.3 | 8.10 | 169.0 | 124.0 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 60.3 | 8.10 | 169.0 | 144.0 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 60.3 | 8.10 | 169.0 | 150.0 | |
| 38 | 24 | 1.1/2” | 2” | 71.4 | 9.60 | 175.5 | 100.0 | |
| 38 | 24 | 1.1/2” | 2” | 71.4 | 9.60 | 175.5 | 150.0 |
| Identification | DN | Size | Inches | Flange size | D mm | H mm | L1 mm | L2 mm |
|---|---|---|---|---|---|---|---|---|
| 51 | 32 | 2” | 1.1/2” | 60.3 | 8.10 | 197.0 | 116.0 | |
| 51 | 32 | 2” | 1.1/2” | 60.3 | 8.10 | 197.0 | 115.0 | |
| 51 | 32 | 2” | 2” | 71.4 | 9.60 | 219.5 | 115.5 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
