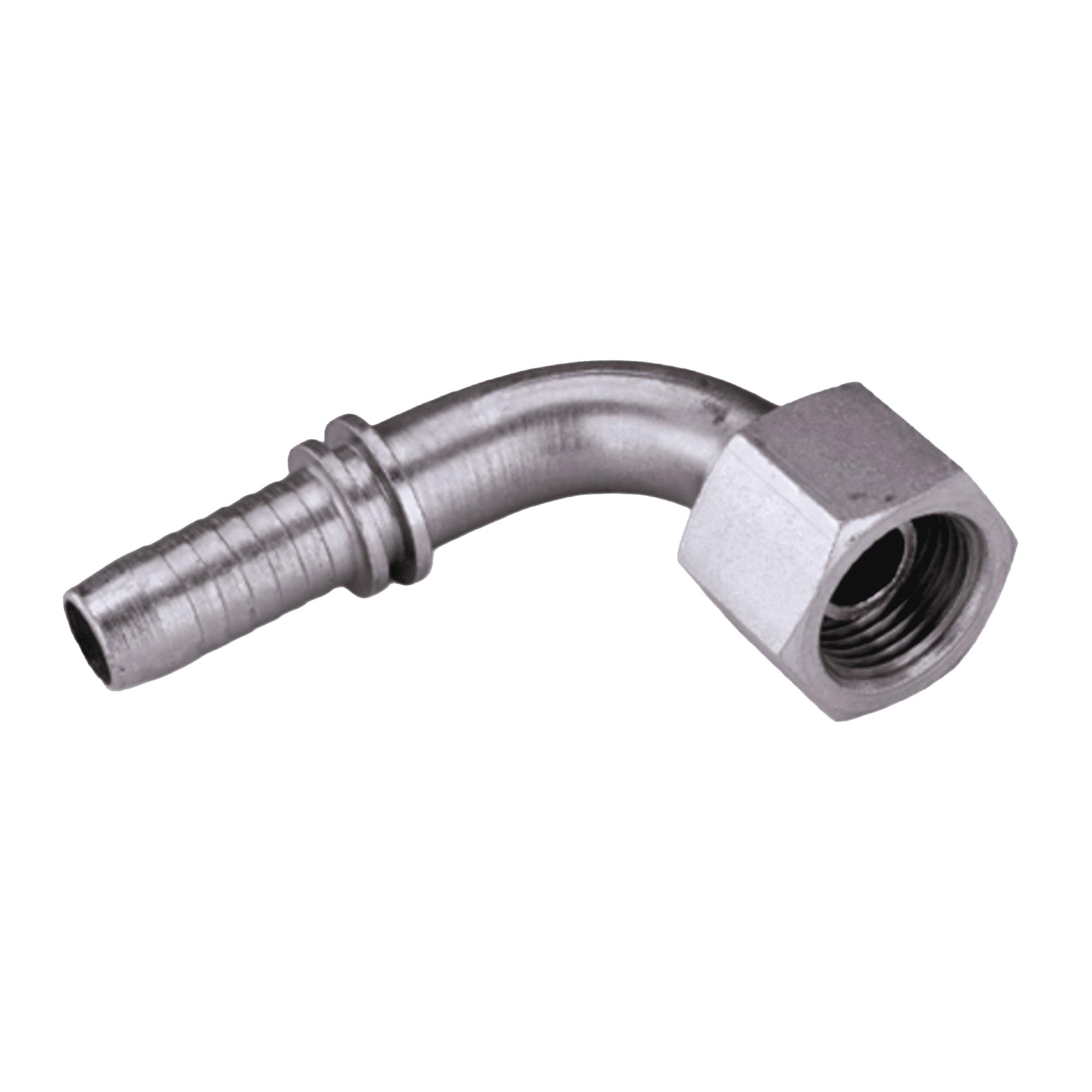

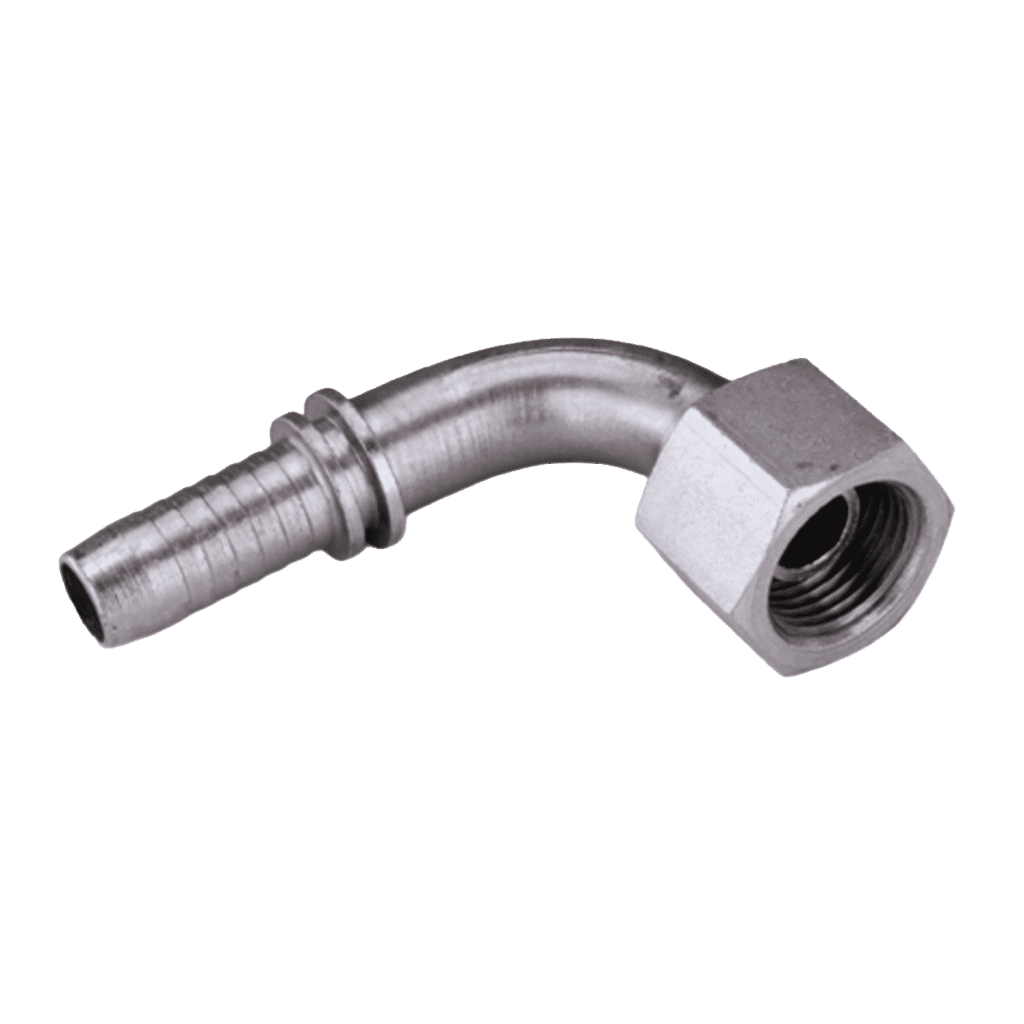

Swage nipple, DKR angle 90°. For swage Nipples for MH100, MH200, MH400, MH700. BSP nut thread. 60° outer cone. To ISO 8434-6, BS 5200. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 22 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 mm |
|---|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | G 1/8”–28 | 47.5 | 27.5 | 14 | |
| 5 | 3 | 3/16” | G 1/4”–19 | 49.0 | 27.0 | 19 | |
| 6 | 4 | 1/4” | G 1/8”–28 | 57.0 | 27.5 | 14 | |
| 6 | 4 | 1/4” | G 1/4”–19 | 55.0 | 27.0 | 19 | |
| 6 | 4 | 1/4” | G 3/8”–19 | 56.0 | 29.0 | 22 | |
| 8 | 5 | 5/16” | G 1/4”–19 | 55.0 | 31.0 | 17 | |
| 8 | 5 | 5/16” | G 3/8”–19 | 58.0 | 29.0 | 22 | |
| 8 | 5 | 5/16” | G 1/2”–14 | 62.5 | 34.0 | 27 | |
| 10 | 6 | 3/8” | G 1/4”–19 | 64.0 | 36.5 | 19 | |
| 10 | 6 | 3/8” | G 3/8”–19 | 64.0 | 33.0 | 22 | |
| 10 | 6 | 3/8” | G 1/2”–14 | 64.0 | 34.0 | 27 | |
| 12 | 8 | 1/2” | G 3/8”–19 | 72.5 | 40.0 | 22 | |
| 12 | 8 | 1/2” | G 1/2”–14 | 72.5 | 38.0 | 27 | |
| 12 | 8 | 1/2” | G 5/8”–14 | 71.5 | 42.5 | 30 | |
| 12 | 8 | 1/2” | G 3/4”–14 | 71.5 | 45.5 | 32 | |
| 16 | 10 | 5/8” | G 5/8”–14 | 87.0 | 52.5 | 30 | |
| 16 | 10 | 5/8” | G 3/4”–14 | 87.0 | 55.0 | 32 | |
| 19 | 12 | 3/4” | G 3/4”–14 | 99.0 | 58.0 | 32 | |
| 19 | 12 | 3/4” | G 1”–11 | 99.0 | 62.0 | 38 | |
| 25 | 16 | 1” | G 1”–11 | 126.0 | 74.0 | 38 | |
| 25 | 16 | 1” | G 1.1/4”–11 | 127.0 | 69.5 | 50 | |
| 31 | 20 | 1.1/4” | G 1.1/4”–11 | 150.5 | 92.0 | 50 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
