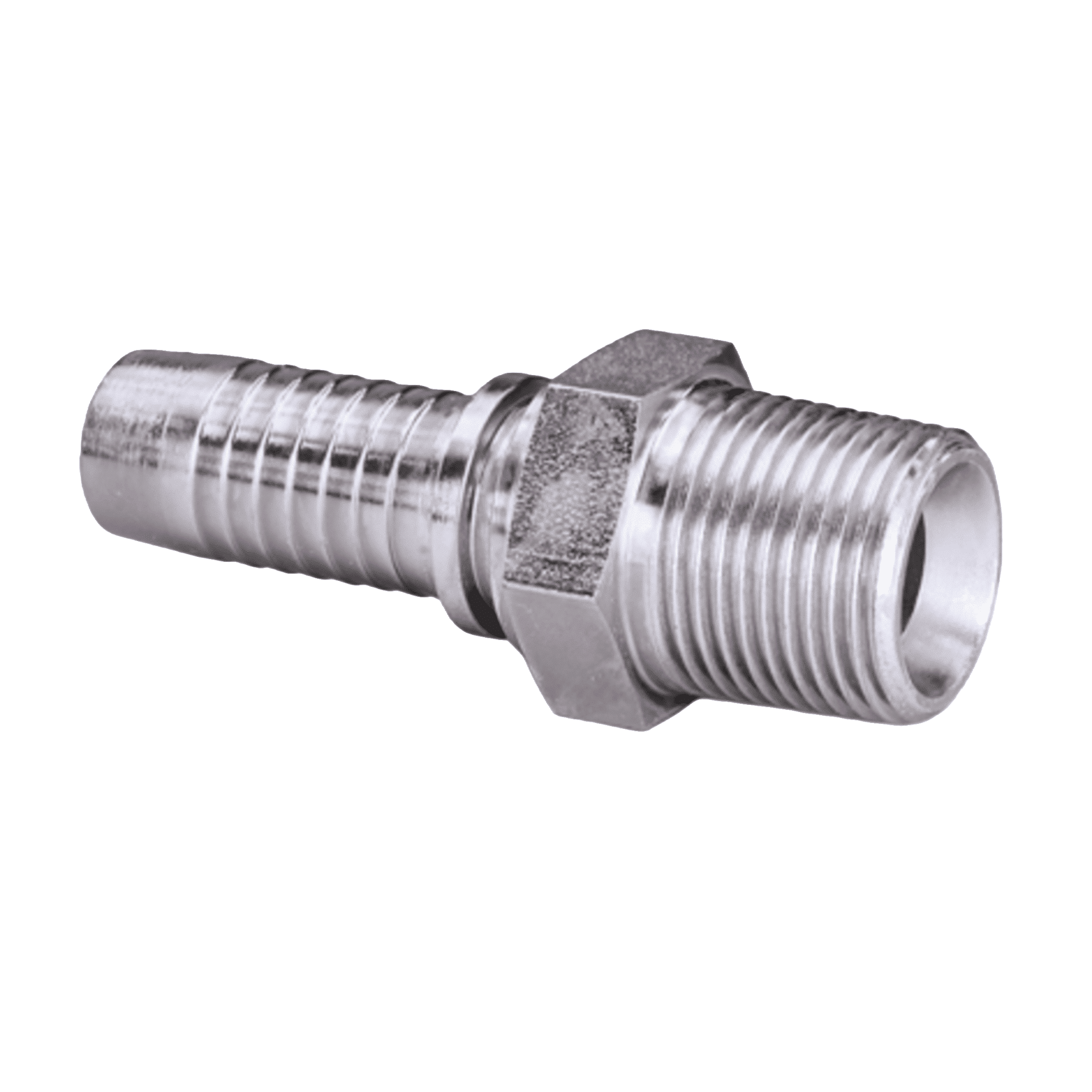

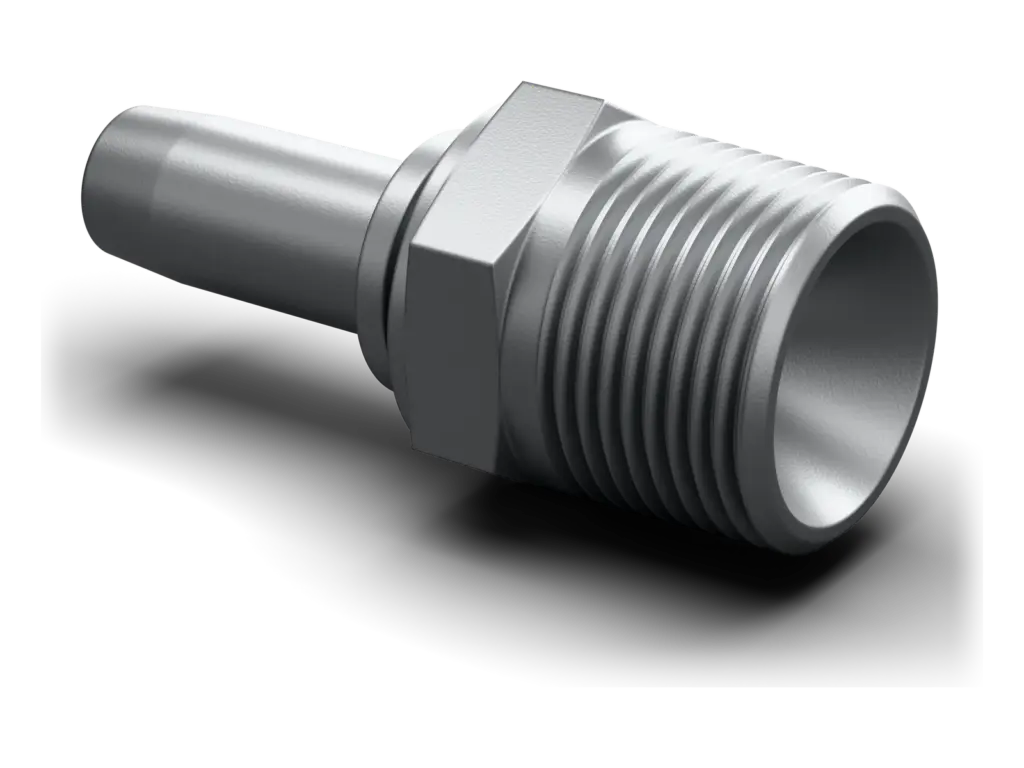

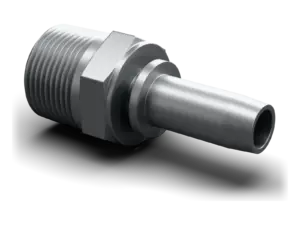

Swage nipple, AGR - K. For swage Nipples for MH100, MH200, MH400, MH700. BSPT conical external threads. Thread seal. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 25 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | S1 |
|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | R 1/8”K | 43.0 | 12 | |
| 5 | 3 | 3/16” | R 1/4”K | 47.5 | 14 | |
| 6 | 4 | 1/4” | R 1/8”K | 49.0 | 12 | |
| 6 | 4 | 1/4” | R 1/4”K | 53.5 | 14 | |
| 6 | 4 | 1/4” | R 3/8”K | 54.0 | 19 | |
| 8 | 5 | 5/16” | R 1/4”K | 53.5 | 14 | |
| 8 | 5 | 5/16” | R 3/8”K | 54.0 | 19 | |
| 10 | 6 | 3/8” | R 1/4”K | 56.0 | 14 | |
| 10 | 6 | 3/8” | R 3/8”K | 56.5 | 19 | |
| 10 | 6 | 3/8” | R 1/2”K | 61.0 | 22 | |
| 12 | 8 | 1/2” | R 3/8”K | 58.0 | 19 | |
| 12 | 8 | 1/2” | R 1/2”K | 62.0 | 22 | |
| 12 | 8 | 1/2” | R 3/4”K | 64.5 | 27 | |
| 16 | 10 | 5/8” | R 1/2”K | 67.5 | 22 | |
| 16 | 10 | 5/8” | R 5/8”K | 70.5 | 24 | |
| 16 | 10 | 5/8” | R 3/4”K | 69.0 | 27 | |
| 19 | 12 | 3/4” | R 3/4”K | 76.5 | 27 | |
| 19 | 12 | 3/4” | R 1”K | 80.5 | 36 | |
| 25 | 16 | 1” | R 1”K | 88.5 | 36 | |
| 25 | 16 | 1” | R 1.1/4”K | 91.5 | 46 | |
| 31 | 20 | 1.1/4” | R 1.1/4”K | 101.0 | 46 | |
| 31 | 20 | 1.1/4” | R 1.1/2”K | 102.0 | 50 | |
| 38 | 24 | 1.1/2” | R 1.1/2”K | 105.5 | 50 | |
| 38 | 24 | 1.1/2” | R 2”K | 113.0 | 65 | |
| 51 | 32 | 2” | R 2”K | 127.5 | 65 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
