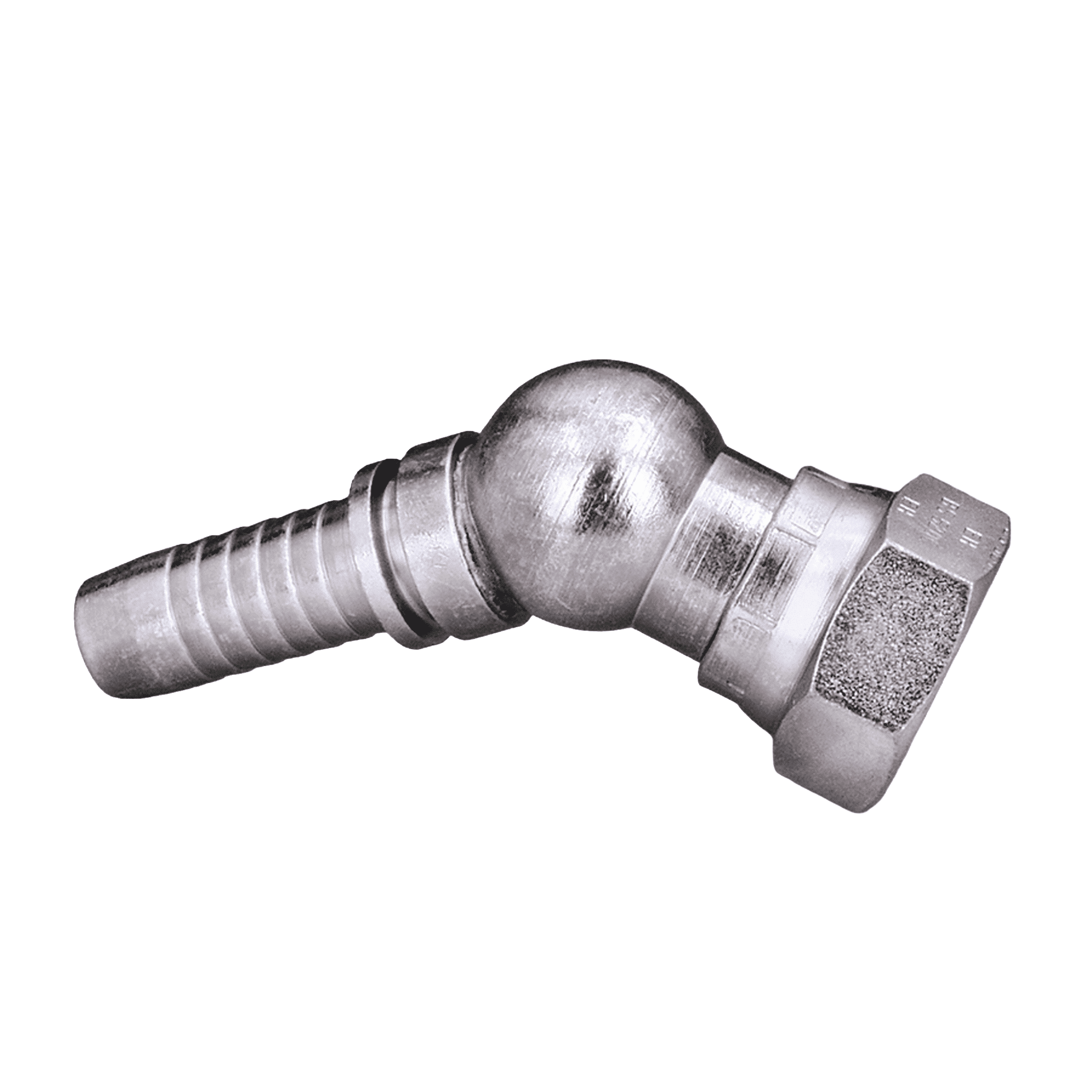

STB – BSF-45C (Swage Tail x BSP Swivel Female Compact 45) – Swage nipple, DKR Comp. angle 45°. Part of the Motus Ferrules & Swage Nipples range.
excl. GST
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION
STB – BSF-45C (Swage Tail x BSP Swivel Female Compact 45) is part of the Motus Ferrules & Swage Nipples range. Swage nipple, DKR Comp. angle 45°.
| Application | Swage Nipples for MH100, MH200, MH400, MH700 |
| Connection 1 | BSP nut thread |
| Sealing form 1 | 60° outer cone Supplementary design information: Compact form |
| Short code | DKR |
| Standard | BS 5200 |
| Material | Steel |
| Surface | MotusCoat™ |
| Note | Choose the appropriate ferrule based on the hose type. |
Catalogue page: 54
STB – BSF-45C (Swage Tail x BSP Swivel Female Compact 45) – Swage nipple, DKR Comp. angle 45°. Part of the Motus Ferrules & Swage Nipples range.
Match the hose series and size, fitting style and swage specification to the hose assembly you are building.
Not sure which size, configuration or hydraulic component you need? Tell us what you’re working with and the Motus team will help match the right product to the application.
