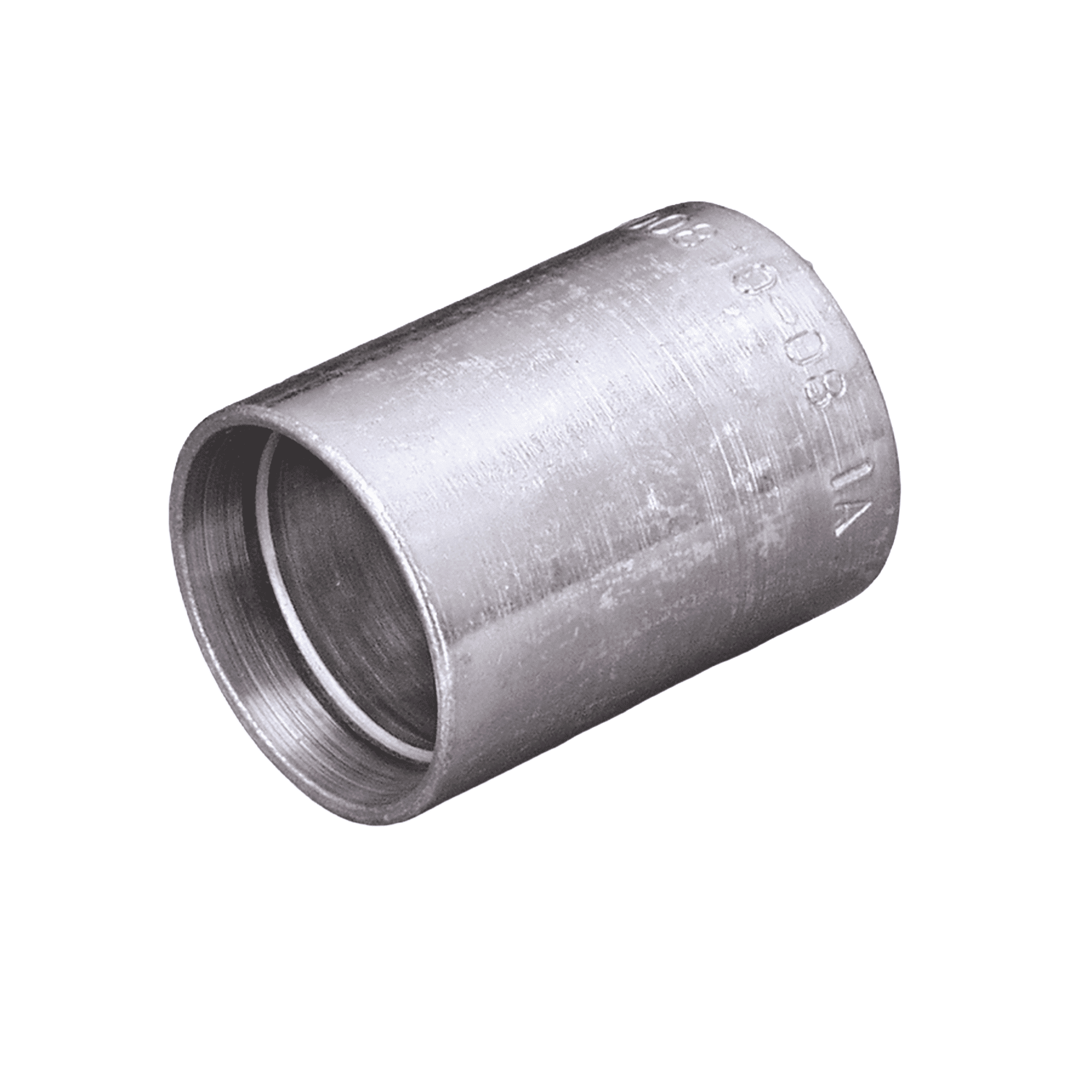

Swage ferrule for braided hose. Non-skive ferrule. Suits MH 100 P. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 4 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN* | Size | Inches | D1 mm | D3 mm | LF mm |
|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 18.0 | 11.2 | 30.5 | |
| 8 | 5 | 5/16” | 19.0 | 12.7 | 32.0 | |
| 10 | 6 | 3/8” | 22.0 | 14.5 | 33.0 | |
| 12 | 8 | 1/2” | 26.0 | 18.3 | 34.0 |
Note: The ferrule assignment depends on the hose type.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
