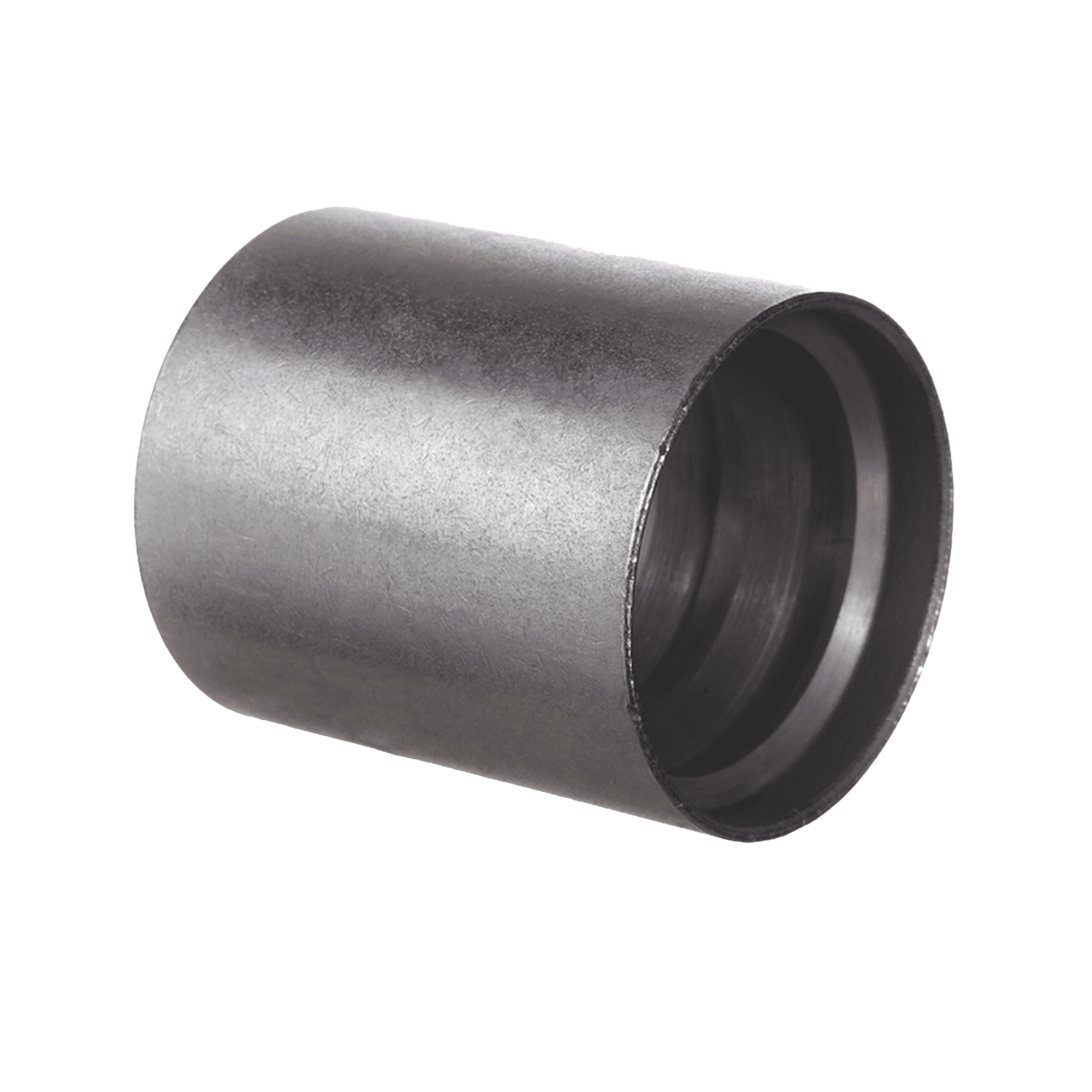

Swage ferrule for braided hose. Skive ferrule. Suits 2SN (MH200-HT, MH200-RM) 2SC (MH200-S) MH400. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 10 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN* | Size | Inches | D1 mm | D3 mm | LF mm |
|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 22 | 11.4 | 30.0 | |
| 8 | 5 | 5/16” | 23 | 12.5 | 30.0 | |
| 10 | 6 | 3/8” | 26 | 14.5 | 31.0 | |
| 12 | 8 | 1/2” | 30 | 18.3 | 32.0 | |
| 16 | 10 | 5/8” | 33 | 21.7 | 38.0 | |
| 19 | 12 | 3/4” | 38 | 24.4 | 42.5 | |
| 25 | 16 | 1” | 46 | 30.5 | 51.0 | |
| 31 | 20 | 1.1/4” | 57 | 38.0 | 58.0 | |
| 38 | 24 | 1.1/2” | 65 | 44.3 | 62.0 | |
| 51 | 32 | 2” | 79 | 57.0 | 73.5 |
Note: The ferrule assignment depends on the hose type.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
