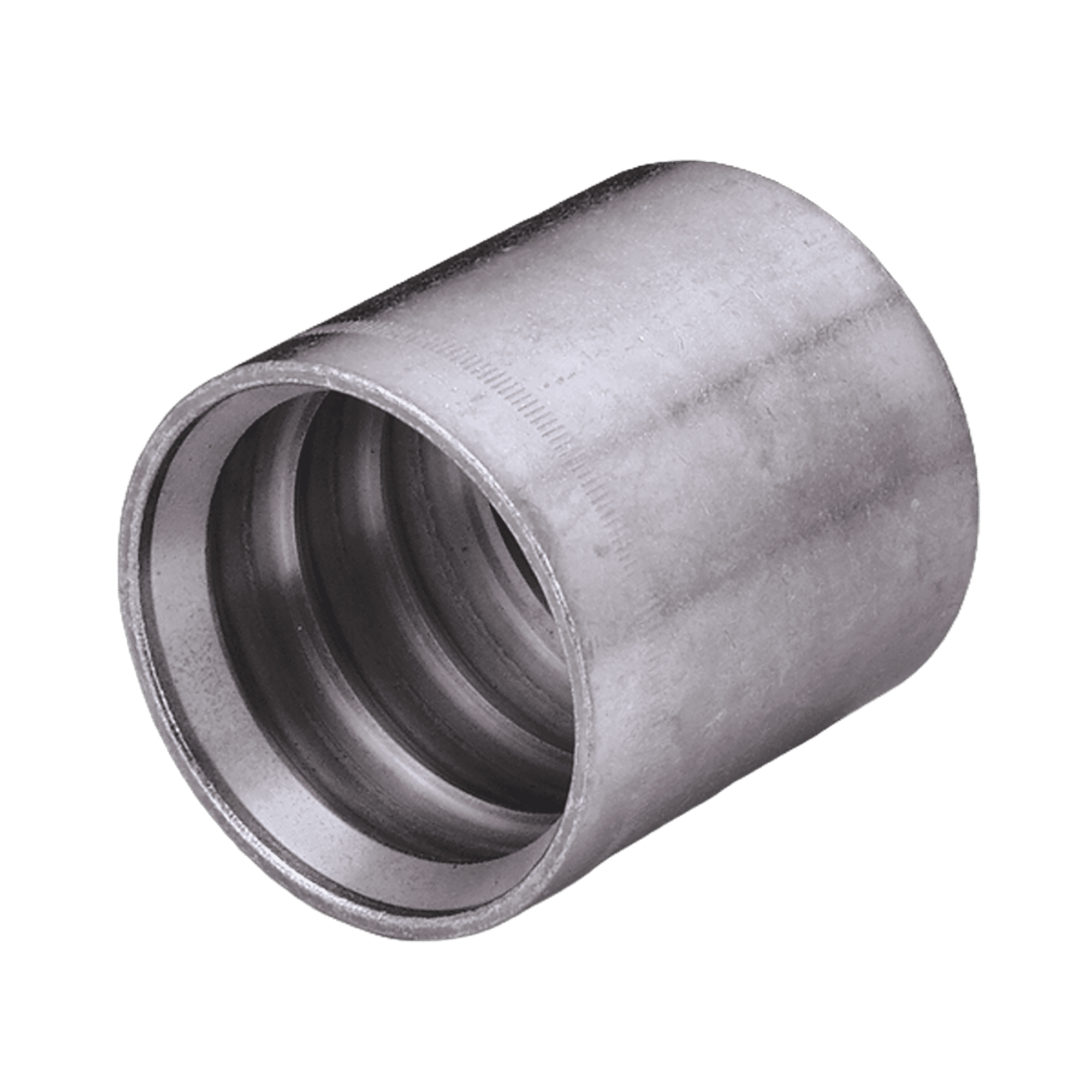

Swage ferrule, MH 900. Non-skive ferrule. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 5 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | D1 mm | D3 mm | LF mm |
|---|---|---|---|---|---|---|
| 19 | 12 | 3/4” | 39.5 | 25.0 | 35.0 | |
| 25 | 16 | 1” | 46.0 | 32.7 | 44.0 | |
| 31 | 20 | 1.1/4” | 55.0 | 39.8 | 58.5 | |
| 38 | 24 | 1.1/2” | 65.0 | 45.8 | 63.0 | |
| 51 | 32 | 2” | 75.0 | 59.8 | 78.0 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
