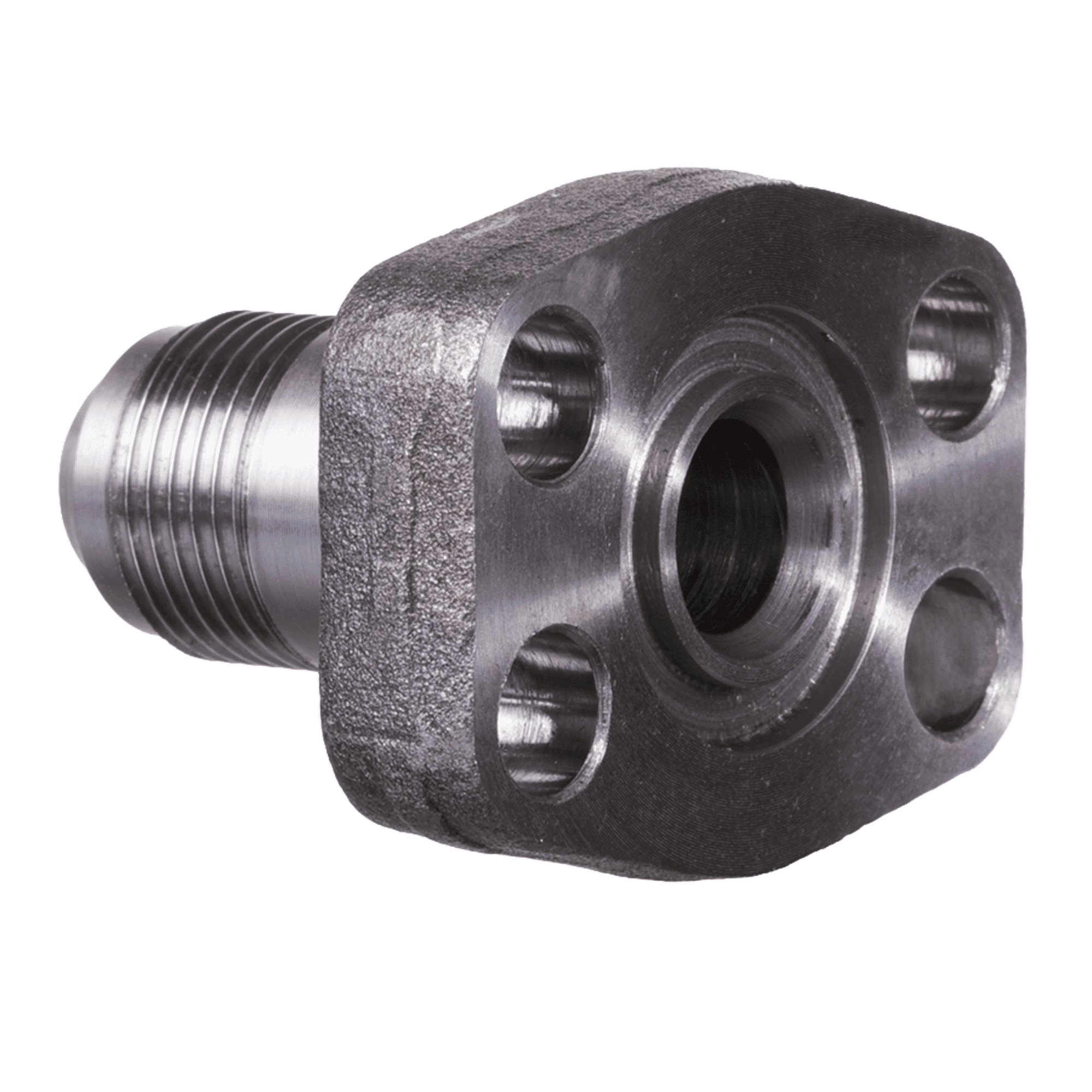

SAE external thread flange. Straight. 6000 psi. Mounting: screw bore hole. To SAE J 518 C, ISO 6162. Black oiled surface. S355J2G3 (ST52.3). 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | PB 10.9 bar | Size | A | Ø B mm | C mm | D mm | E mm | F mm | G mm | H mm | L mm | M metr. | M unc | M unc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | 1/2” | UNF 3/4”–16 | 9.9 | 40.5 | 56 | 18.2 | 48 | 60 | 16 | 9.0 | M 8 x 30 | 5/16”x 1.1/4” | 5/16”x 1.1/4” | |
| 400 | 1/2” | UNF 7/8”–14 | 12.3 | 40.5 | 56 | 18.2 | 48 | 60 | 16 | 9.0 | M 8 x 30 | 5/16”x 1.1/4” | 5/16”x 1.1/4” | |
| 400 | 3/4” | UNF 1.1/16”–12 | 15.5 | 50.8 | 71 | 23.8 | 60 | 73 | 19 | 11.5 | M 10 x 35 | 3/8”x 1.1/2” | 3/8”x 1.1/2” | |
| 400 | 1" | UN 1.5/16”–12 | 21.5 | 57.2 | 81 | 27.8 | 70 | 82 | 24 | 13.0 | M 12 x 45 | 7/16”x 1.3/4” | 3/8”x 1.1/2” | |
| 400 | 1.1/4” | UN 1.5/8”–12 | 27.5 | 66.7 | 95 | 31.8 | 78 | 92 | 27 | *1 | M 14 x 50 | 1/2”x 1.3/4” | 7/16”x 1.3/4” | |
| 400 | 1.1/4” | UN 1.5/16”–12 | 21.5 | 66.7 | 95 | 31.8 | 78 | 92 | 27 | *1 | M 14 x 50 | 1/2”x 1.3/4” | 7/16”x 1.3/4” | |
| 400 | 1.1/2” | UN 1.7/8”–12 | 33.0 | 79.4 | 113 | 36.5 | 95 | 96 | 30 | 17.5 | M 16 x 50 | 5/8”x 2” | 1/2”x 1.3/4” |
Note: The stated maximum working pressure relates to the flange. The actual working pressure is determined by the pipe (wall thickness) and the quality of the pipe. Recommended screws are listed in the columns M (metr) and M (unc).
Series: LL = Very Light L = Light S = Heavy Ø = External pipe diameter PN = Nominal pressure PB = Max. operating pressure *1) = 15.0 for metric screws; 13.5 for UNC screws
Product Versions: AFG JIC U (3000 / 6000 PSI) - SAE external thread flange, with UNC screw set and O-ring AFG JIC M (3000 / 6000 PSI) - SAE external thread flange, with metric screw set and O-ring
