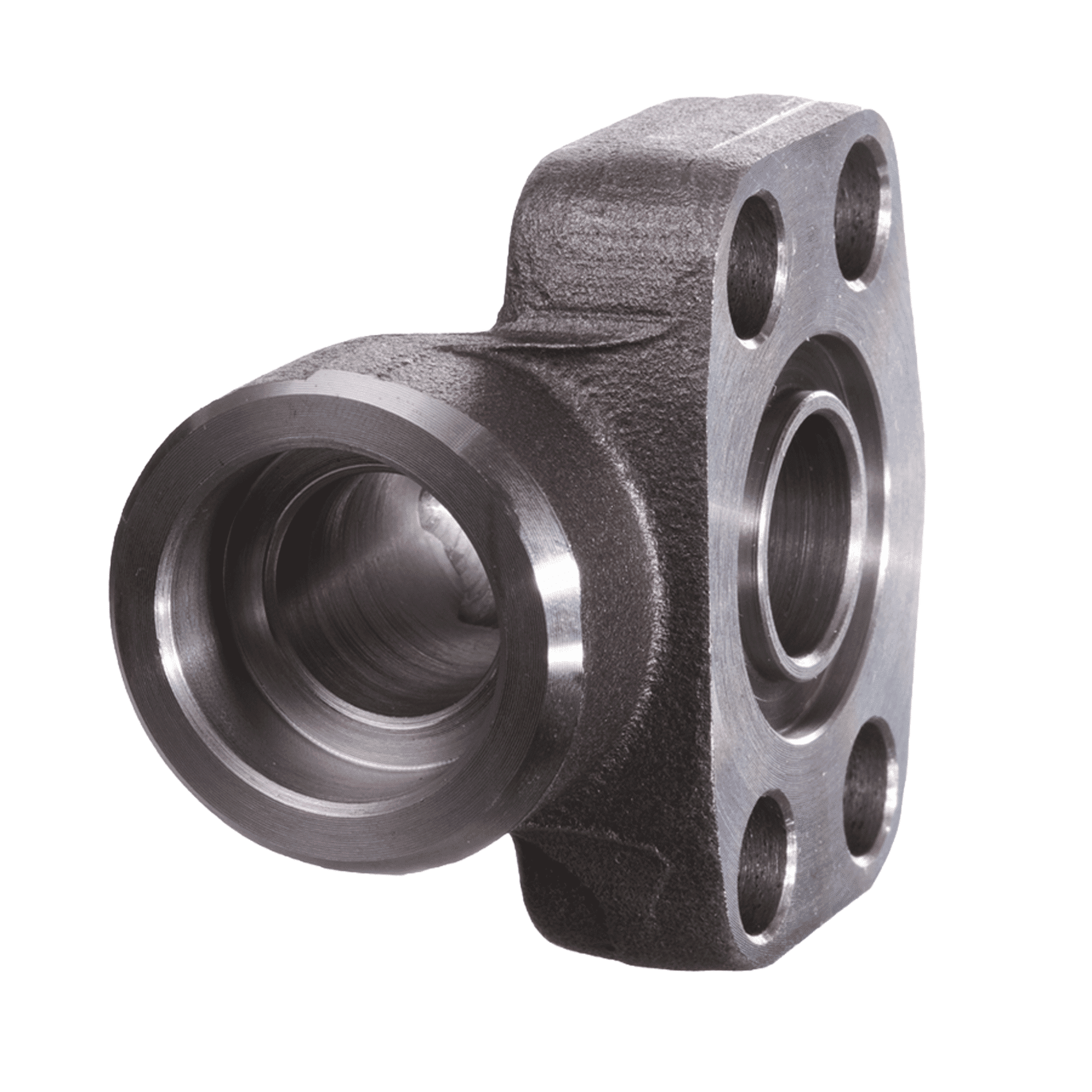

SAE socket weld flange, angle 90. Angle 90°. 6000 psi. Mounting: screw bore hole. To SAE J 518 C, ISO 6162. Black oiled surface. S355J2G3 (ST52.3). 14 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | PB 10.9 bar | Size | Ø A mm | Ø B mm | C mm | E mm | F1 mm | I mm | S1 mm | S2 mm | L mm | M metr. | M unc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | 1/2” | 21.6 | 13 | 38.1 | 17.5 | 60 | 10 | 20 | 37 | 9.0 | M 8 x 30 | 5/16”x 1.1/4” | |
| 350 | 1/2” | 17.5 | 13 | 38.1 | 17.5 | 60 | 10 | 20 | 37 | 9.0 | M 8 x 30 | 5/16”x 1.1/4” | |
| 350 | 3/4” | 27.2 | 19 | 47.6 | 22.2 | 63 | 10 | 24 | 38 | 11.0 | M 10 x 35 | 3/8”x 1.1/2” | |
| 315 | 1" | 35.0 | 25 | 52.4 | 26.2 | 70 | 12 | 28 | 43 | 11.0 | M 10 x 35 | 3/8”x 1.1/2” | |
| 250 | 1.1/4” | 42.8 | 32 | 58.7 | 30.2 | 85 | 14 | 34 | 51 | 11.5 | M 10 x 40 | 7/16”x 1.1/2” | |
| 200 | 1.1/2” | 48.6 | 38 | 69.9 | 35.7 | 95 | 16 | 38 | 56 | 13.5 | M 12 x 45 | 1/2”x 1.3/4” | |
| 200 | 2" | 61.0 | 51 | 77.8 | 42.9 | 110 | 18 | 42 | 65 | 13.5 | M 12 x 45 | 5/8”x 2” |
| Identification | PB 10.9 bar | Size | Ø A mm | Ø B mm | C mm | E mm | F1 mm | I mm | S1 mm | S2 mm | L mm | M metr. | M unc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | 1/2” | 21.6 | 13 | 40.5 | 18.2 | 60 | 10 | 20 | 37 | 9.0 | M 8 x 30 | 5/16”x 1.1/4” | |
| 400 | 1/2” | 17.5 | 13 | 40.5 | 18.2 | 60 | 10 | 20 | 37 | 9.0 | M 8 x 30 | 5/16”x 1.1/4” | |
| 400 | 3/4” | 27.2 | 19 | 50.8 | 23.8 | 70 | 12 | 28 | 43 | 11.0 | M 10 x 35 | 3/8”x 1.1/2” | |
| 400 | 1" | 35.0 | 25 | 57.2 | 27.8 | 85 | 14 | 34 | 51 | 13.0 | M 12 x 45 | 7/16”x 1.3/4” | |
| 400 | 1.1/4” | 42.8 | 32 | 66.7 | 31.8 | 95 | 16 | 38 | 56 | *1 | M 14 x 50 | 1/2”x 1.3/4” | |
| 400 | 1.1/2” | 48.6 | 38 | 79.4 | 36.5 | 110 | 18 | 42 | 65 | 17.5 | M 16 x 50 | 5/8”x 2” | |
| 400 | 2" | 61.0 | 51 | 96.8 | 44.5 | 150 | 18 | 60 | 92 | 21.0 | M 20 x 110 | - |
Note: The stated maximum working pressure relates to the flange. The actual working pressure is determined by he pipe (wall thickness) and the quality of the pipe. Recommended screws are listed in the columns M (metr) and M (unc).
Note: The stated maximum working pressure relates to the flange. The actual working pressure is determined by the pipe (wall thickness) and the quality of the pipe. Recommended screws are listed in the columns M (metr) and M (unc).
Product Versions: AFS 90 S M (3000 / 6000 PSI) - SAE socket weld flange, angle 90, with metric screw set and O-ring AFS 90 S U (3000 / 6000 PSI) - SAE socket weld flange, angle 90, with UNC screw set and O-ring
