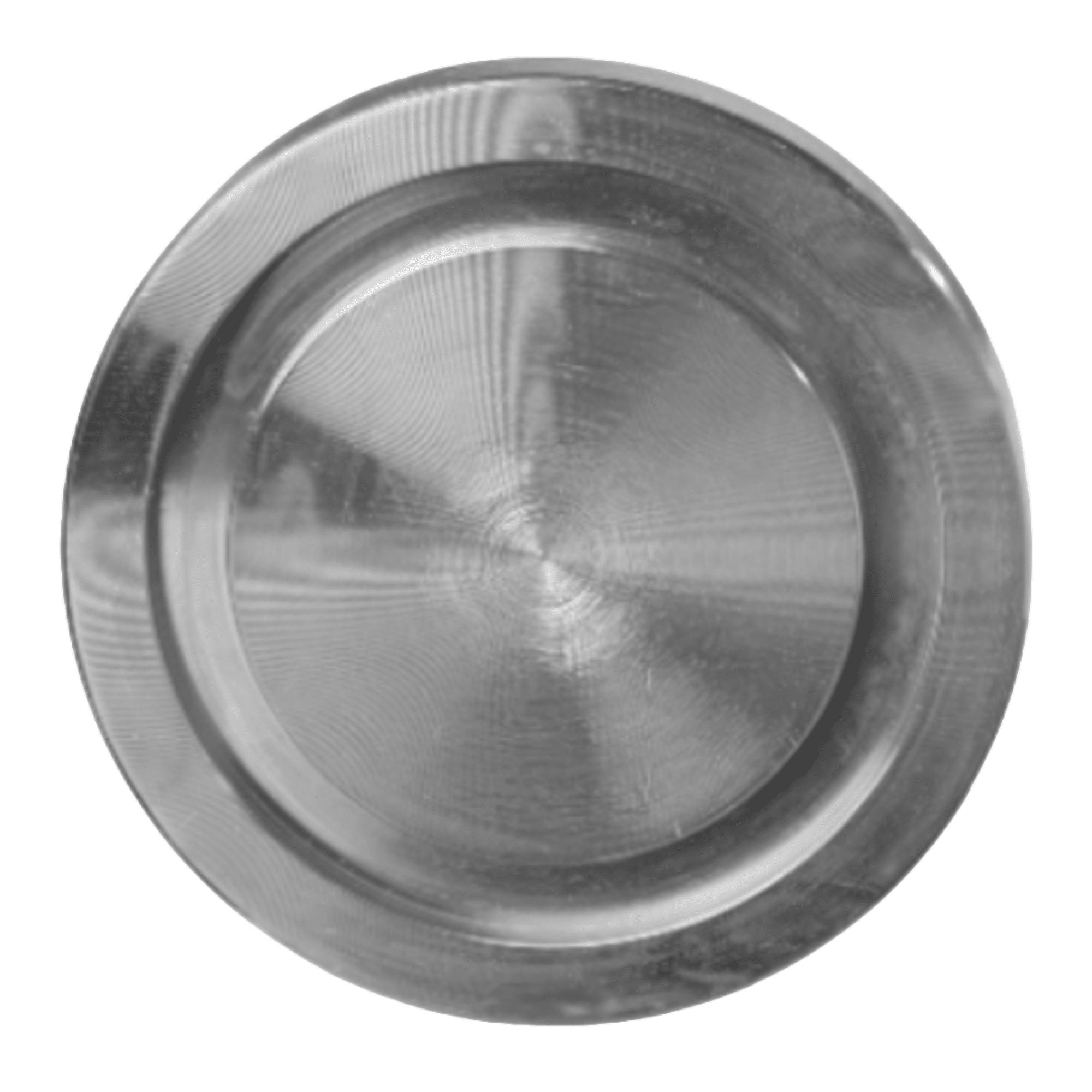

Blanking Flange Code 62

Name: Blanking Flange Code 62
Brand: Motus Hydraulics
SKU: BLANKING-FLANGE-CODE-62

SAE blind plate. Straight. 6000 psi. To SAE J 518 C, ISO 6162. Zinc Nickel surface. S355J2G3 (C22). 6 sizes, each with its own part number.

6sizes
F62S-08-MC to F62S-32-MC

StandardSAE J 518 C, ISO 6162

SurfaceZinc Nickel

MaterialS355J2G3 (C22)

Pick your size

Tick the sizes you need, then request a price.

PN: Nominal pressure PB = Max. operating pressure *1) = Choice of 12.0 or 12.5

Identification	PB 10.9 bar	Size	A1 mm	G mm	C mm	D mm	E mm	F mm	H mm	L mm	M metr.	M unc
F62S-08-MC	250	1/2”	31.8	14	40.5	56	18.2	48	7.8	8.7	M 8 x 30	5/16”x 1.1/4”
F62S-12-MC	250	3/4”	41.3	15	50.8	71	23.8	60	8.8	10.5	M 10 x 35	3/8”x 1.1/2”
F62S-16-MC	250	1"	47.6	16	57.2	81	27.8	70	9.5	*1	M 12 x 45	7/16”x 1.3/4”
F62S-20-MC	250	1.1/4”	54.0	16	66.6	95	31.8	78	10.4	*2	M 14 x 45	1/2”x 1.3/4”
F62S-24-MC	250	1.1/2”	63.5	19	79.3	113	36.5	95	12.6	17.0	M 16 x 55	5/8”x 2”
F62S-32-MC	250	2"	79.4	30	96.8	133	44.5	114	12.6	21.0	M 20 x 70	3/4”x 2.1/2”
