ORFS Male / UN’O’Ring Male

Name: ORFS Male / UN’O’Ring Male
Brand: Motus Hydraulics
SKU: ORFS-MALE-UN-O-RING-MALE

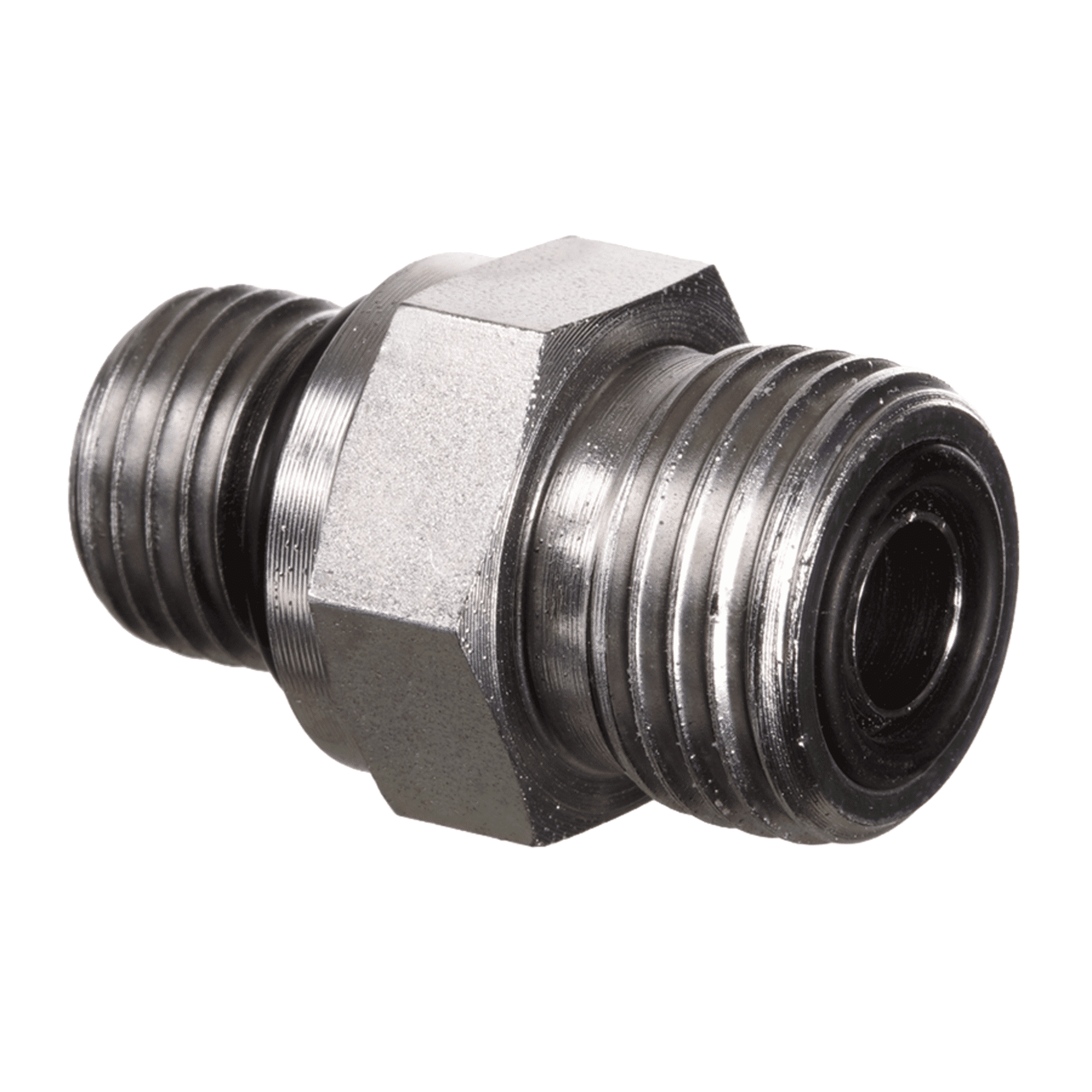

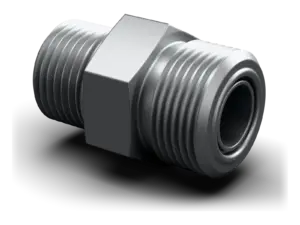

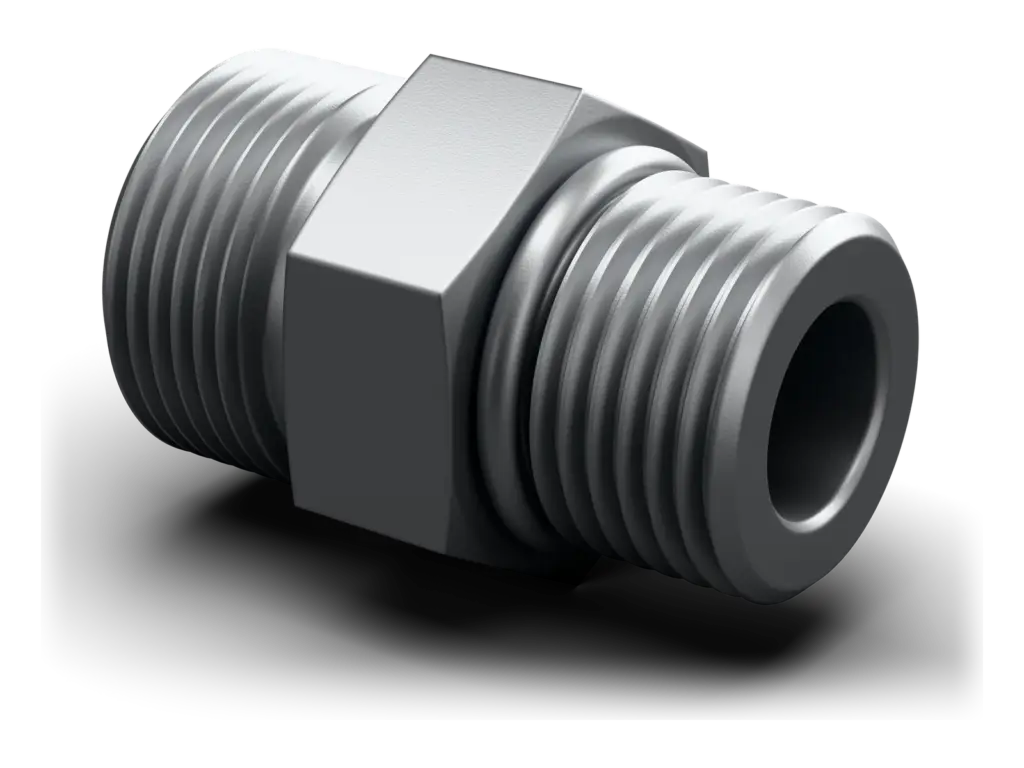

Screw-in sockets. Straight. UN / UNF external threads to oRFS external threads. O-ring seal on screw-in socket one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 29 sizes, each with its own part number.

29sizes
UNM-ORM-0409-MC to UNM-ORM-3240-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Filter the sizes

SW: Width across flats

Identification	G1	G2	SW mm	OR1	OR2
UNM-ORM-0409-MC	7/16”-20 UNF	9/16”-18 UNF	17	8.92 x 1.83	7.65 x 1.78
UNM-ORM-0411-MC	7/16”-20 UNF	11/16”-16 UN	19	8.92 x 1.83	9.25 x 1.78
UNM-ORM-0509-MC	1/2”-20 UNF	9/16”-18 UNF	19	10.52 x 1.83	7.65 x 1.78
UNM-ORM-0511-MC	1/2”-20 UNF	11/16”-16 UN	19	10.52 x 1.83	9.25 x 1.78
UNM-ORM-0609-MC	9/16”-18 UNF	9/16”-18 UNF	19	11.89 x 1.98	7.65 x 1.78
UNM-ORM-0611-MC	9/16”-18 UNF	11/16”-16 UN	19	11.89 x 1.98	9.25 x 1.78
UNM-ORM-0613-MC	9/16”-18 UNF	13/16”-16 UN	22	11.89 x 1.98	12.42 x 1.78
UNM-ORM-0809-MC	3/4”-16 UNF	9/16”-18 UNF	22	16.36 x 2.21	7.65 x 1.78
UNM-ORM-0811-MC	3/4”-16 UNF	11/16”-16 UN	22	16.36 x 2.21	9.25 x 1.78
UNM-ORM-0813-MC	3/4”-16 UNF	13/16”-16 UN	22	16.36 x 2.21	12.42 x 1.78
UNM-ORM-0816-MC	3/4”-16 UNF	1"-14 UNS	27	16.36 x 2.21	15.60 x 1.78
UNM-ORM-0819-MC	3/4”-16 UNF	1.3/16”-12 UN	32	16.36 x 2.21	18.77 x 1.78
UNM-ORM-1011-MC	7/8”-14 UNF	11/16”-16 UN	27	19.18 x 2.46	9.25 x 1.78
UNM-ORM-1013-MC	7/8”-14 UNF	13/16”-16 UN	27	19.18 x 2.46	12.42 x 1.78
UNM-ORM-1016-MC	7/8”-14 UNF	1"-14 UNS	27	19.18 x 2.46	15.60 x 1.78
UNM-ORM-1019-MC	7/8”-14 UNF	1.3/16”-12 UN	32	19.18 x 2.46	18.77 x 1.78
UNM-ORM-1213-MC	1.1/16”-12 UN	13/16”-16 UN	32	23.47 x 2.95	12.42 x 1.78
UNM-ORM-1216-MC	1.1/16”-12 UN	1"-14 UNS	32	23.47 x 2.95	15.60 x 1.78
UNM-ORM-1219-MC	1.1/16”-12 UN	1.3/16”-12 UN	32	23.47 x 2.95	18.77 x 1.78
UNM-ORM-1223-MC	1.1/16”-12 UN	1.7/16”-12 UN	38	23.47 x 2.95	23.52 x 1.78
UNM-ORM-1619-MC	1.5/16”-12 UN	1.3/16”-12 UN	38	29.74 x 2.95	18.77 x 1.78
UNM-ORM-1623-MC	1.5/16”-12 UN	1.7/16”-12 UN	38	29.74 x 2.95	23.52 x 1.78
UNM-ORM-1627-MC	1.5/16”-12 UN	1.11/16”-12 UN	46	29.74 x 2.95	29.87 x 1.78
UNM-ORM-2023-MC	1.5/8”-12 UN	1.7/16”-12 UN	46	37.47 x 3.00	23.52 x 1.78
UNM-ORM-2027-MC	1.5/8”-12 UN	1.11/16”-12 UN	46	37.47 x 3.00	29.87 x 1.78
UNM-ORM-2032-MC	1.5/8”-12 UN	2"-12 UN	55	37.47 x 3.00	37.82 x 1.78
UNM-ORM-2427-MC	1.7/8”-12 UN	1.11/16”-12 UN	54	43.69 x 3.00	29.87 x 1.78
UNM-ORM-2432-MC	1.7/8”-12 UN	2"-12 UN	55	43.69 x 3.00	37.82 x 1.78
UNM-ORM-3240-MC	2.1/2”-12 UN	2.1/2”-12 UN	70	59.36 x 3.00	48.90 x 2.62

Product Version: Stainless Steel (SS)

The details

Connection 1: UN / UNF external threads
Sealing form 1: O-ring seal on screw-in socket
Connection 2: ORFS external threads
Sealing form 2: Flat seal with O-ring
Design: Screw-in sockets
Construction: Straight
Material: Steel
Surface: MotusCoat™

Downloads

ORFS Male / UN’O’Ring Male data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227
