Hydraulic Adaptors

ORFS Male / UNO Male Positional 90

ORFS Male / UNO Male Positional 90

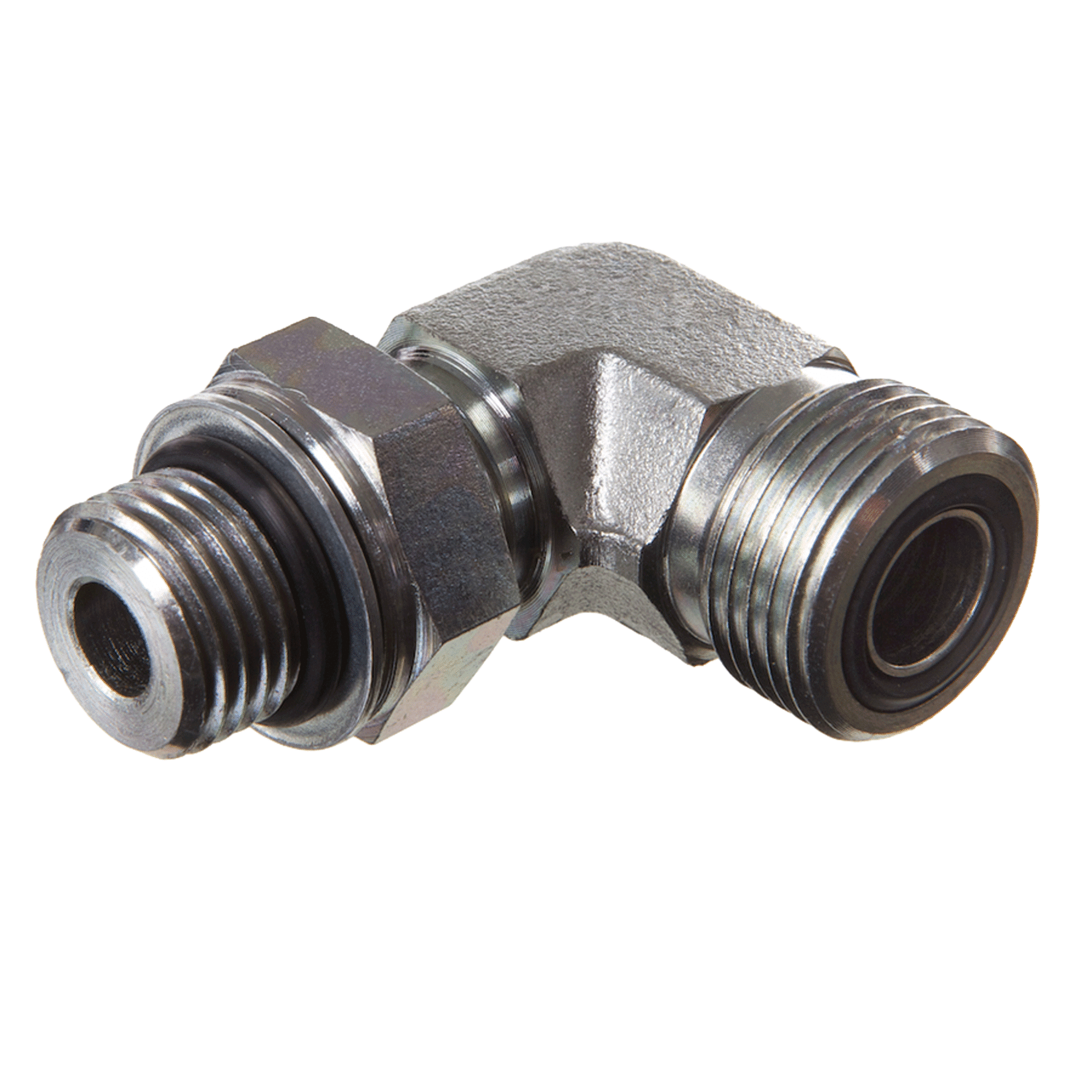

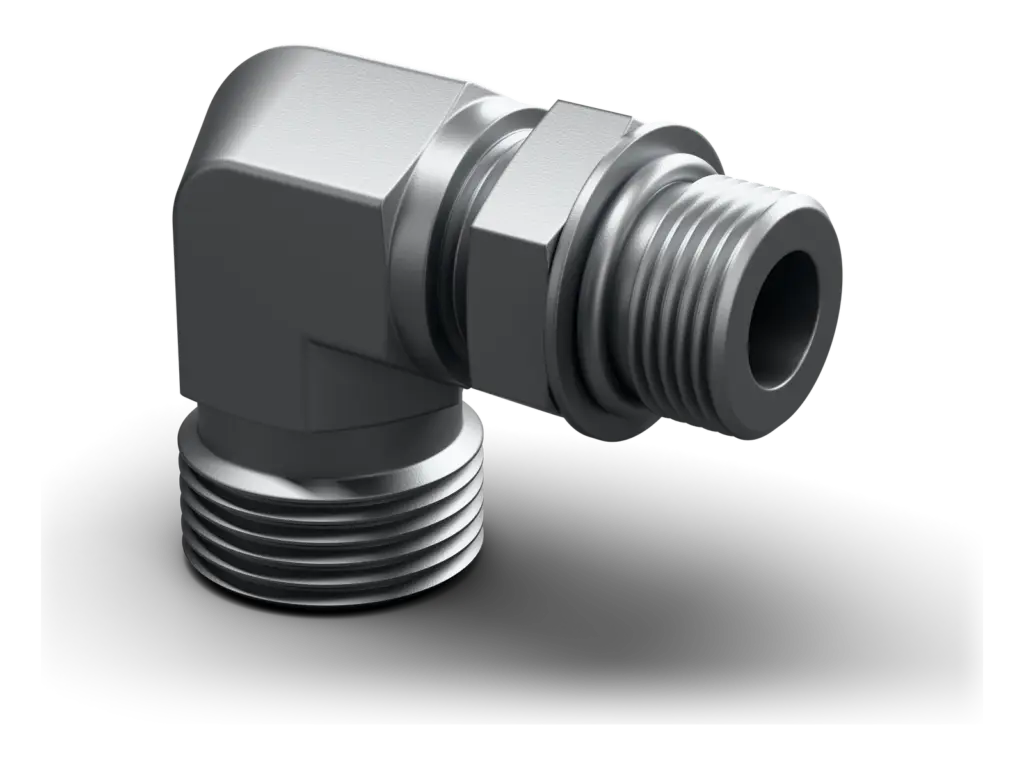

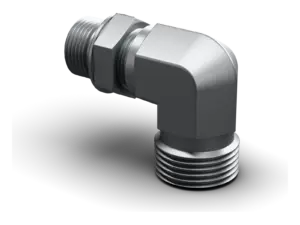

Screw-in socket, ORFS, angle 90°. Adjustable direction screw-in socket. UN / UNF external threads to oRFS external threads. O-ring seal on screw-in socket one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 25 sizes, each with its own part number.

25sizes
UNP-ORM-90C-0409-MC to UNP-ORM-90C-2427-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1G2SW mmS1OR1OR2
7/16”-20 UNF9/16”-18 UNF14168.92 x 1.837.65 x 1.78
7/16”-20 UNF11/16”-16 UN19168.92 x 1.839.25 x 1.78
9/16”-18 UNF9/16”-18 UNF191911.89 x 1.987.65 x 1.78
9/16”-18 UNF11/16”-16 UN191911.89 x 1.989.25 x 1.78
9/16”-18 UNF13/16”-16 UN191911.89 x 1.9812.42 x 1.78
3/4”-16 UNF11/16”-16 UN192416.36 x 2.219.25 x 1.78
3/4”-16 UNF13/16”-16 UN192416.36 x 2.2112.42 x 1.78
3/4”-16 UNF1"-14 UNS272416.36 x 2.2115.60 x 1.78
3/4”-16 UNF1.3/16”-12 UN302416.36 x 2.2118.77 x 1.78
7/8”-14 UNF11/16”-16 UN222719.18 x 2.469.25 x 1.78
7/8”-14 UNF13/16”-16 UN272719.18 x 2.4612.42 x 1.78
7/8”-14 UNF1"-14 UNS272719.18 x 2.4615.60 x 1.78
7/8”-14 UNF1.3/16”-12 UN302719.18 x 2.4618.77 x 1.78
1.1/16”-12 UN13/16”-16 UN303623.47 x 2.9512.42 x 1.78
1.1/16”-12 UN1"-14 UNS303523.47 x 2.9515.60 x 1.78
1.1/16”-12 UN1.3/16”-12 UN303623.47 x 2.9518.77 x 1.78
1.1/16”-12 UN1.7/16”-12 UN373523.47 x 2.9523.52 x 1.78
1.5/16”-12 UN1.3/16”-12 UN364129.74 x 2.9518.77 x 1.78
1.5/16”-12 UN1.7/16”-12 UN374129.74 x 2.9523.52 x 1.78
1.5/16”-12 UN1.11/16”-12 UN414129.74 x 2.9529.87 x 1.78
1.5/8”-12 UN1.7/16”-12 UN414837.47 x 3.0023.52 x 1.78
1.5/8”-12 UN1.11/16”-12 UN414837.47 x 3.0029.87 x 1.78
1.5/8”-12 UN2"-12 UN484837.47 x 3.0037.82 x 1.78
1.7/8”-12 UN2"-12 UN485443.69 x 3.0037.82 x 1.78
1.7/8”-12 UN1.11/16”-12 UN485443.69 x 3.0029.87 x 1.78

SW, S1, S2 = Width across flats Product Version: Stainless Steel (SS)

The details

Connection 1
UN / UNF external threads
Sealing form 1
O-ring seal on screw-in socket
Connection 2
ORFS external threads
Sealing form 2
Flat seal with O-ring
Design
Adjustable direction screw-in socket
Construction
Angle 90°
Material
Steel
Surface
MotusCoat™

Downloads

ORFS Male / UNO Male Positional 90 data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
