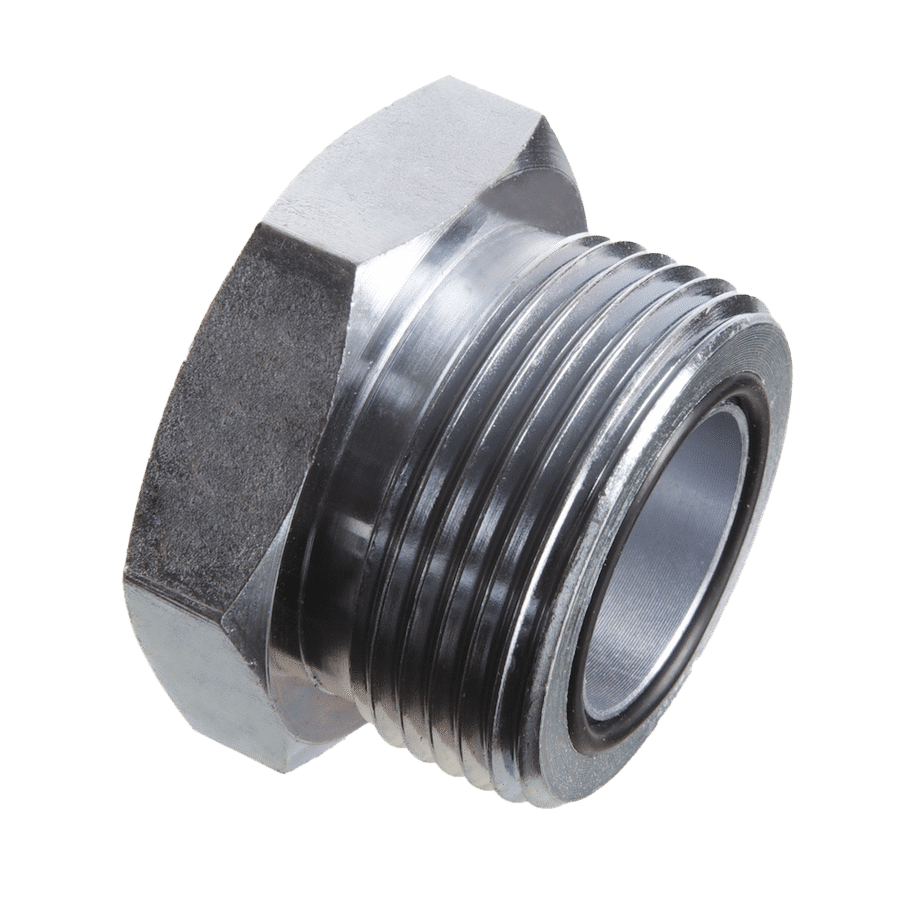

Blanking socket. ORFS external threads. Flat seal with O-ring. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | I mm | L1 mm | SW mm | OR |
|---|---|---|---|---|---|
| 9/16”-18 UNF | 10.0 | 16.5 | 17 | 7.65 x 1.78 | |
| 11/16”–16 UN | 11.0 | 19.0 | 19 | 9.25 x 1.78 | |
| 13/16”–16 UN | 13.0 | 22.0 | 22 | 12.42 x 1.78 | |
| 1”–14 UNS | 15.5 | 26.0 | 27 | 15.60 x 1.78 | |
| 1.3/16”–12 UN | 17.0 | 27.5 | 32 | 18.77 x 1.78 | |
| 1.7/16”–12 UN | 17.5 | 28.0 | 41 | 23.52 x 1.78 | |
| 1.11/16”–12 UN | 17.5 | 28.0 | 46 | 29.87 x 1.78 | |
| 2”–12 UN | 17.5 | 28.0 | 55 | 37.82 x 1.78 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
