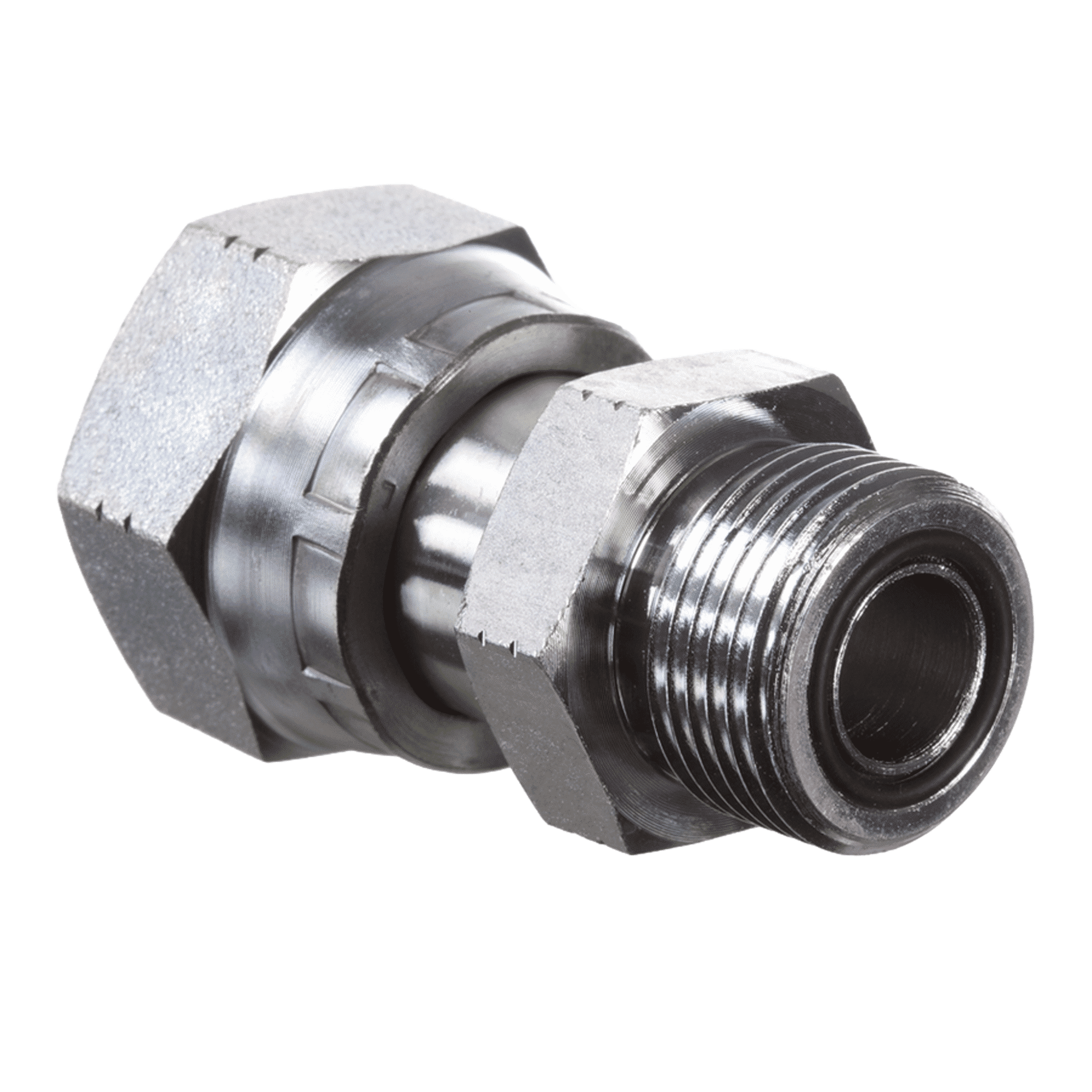

Connectors. Straight. ORFS nut threads to oRFS external threads. Flat sealing one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 17 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 | OR |
|---|---|---|---|---|---|
| 11/16”–16 UN | 9/16”–18 UNF | 19 | 22 | 7.65 x 1.78 | |
| 13/16”–16 UN | 9/16”–18 UNF | 16 | 24 | 7.65 x 1.78 | |
| 13/16”–16 UN | 11/16”–16 UN | 22 | 24 | 9.25 x 1.78 | |
| 1”–14 UNS | 9/16”–18 UNF | 16 | 30 | 7.65 x 1.78 | |
| 1”–14 UNS | 11/16”–16 UN | 19 | 30 | 9.25 x 1.78 | |
| 1”–14 UNS | 13/16”–16 UN | 22 | 30 | 12.42 x 1.78 | |
| 1.3/16”–12 UN | 9/16”–18 UNF | 16 | 36 | 7.65 x 1.78 | |
| 1.3/16”–12 UN | 11/16”–16 UN | 19 | 36 | 9.25 x 1.78 | |
| 1.3/16”–12 UN | 13/16”–16 UN | 32 | 36 | 12.42 x 1.78 | |
| 1.3/16”–12 UN | 1”–14 UNS | 32 | 36 | 15.60 x 1.78 | |
| 1.7/16”–12 UN | 13/16”–16 UN | 22 | 41 | 12.42 x 1.78 | |
| 1.7/16”–12 UN | 1”–14 UNS | 27 | 41 | 15.60 x 1.78 | |
| 1.7/16”–12 UN | 1.3/16”–12 UN | 41 | 41 | 18.77 x 1.78 | |
| 1.11/16”–12 UN | 1.3/16”–12 UN | 32 | 50 | 18.77 x 1.78 | |
| 1.11/16”–12 UN | 1.7/16”–12 UN | 38 | 50 | 23.52 x 1.78 | |
| 2”–12 UN | 1.7/16”–12 UN | 38 | 60 | 23.52 x 1.78 | |
| 2”–12 UN | 1.11/16”–12 UN | 46 | 60 | 29.87 x 1.78 |
SW, S1, S2 = Width across flats
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
