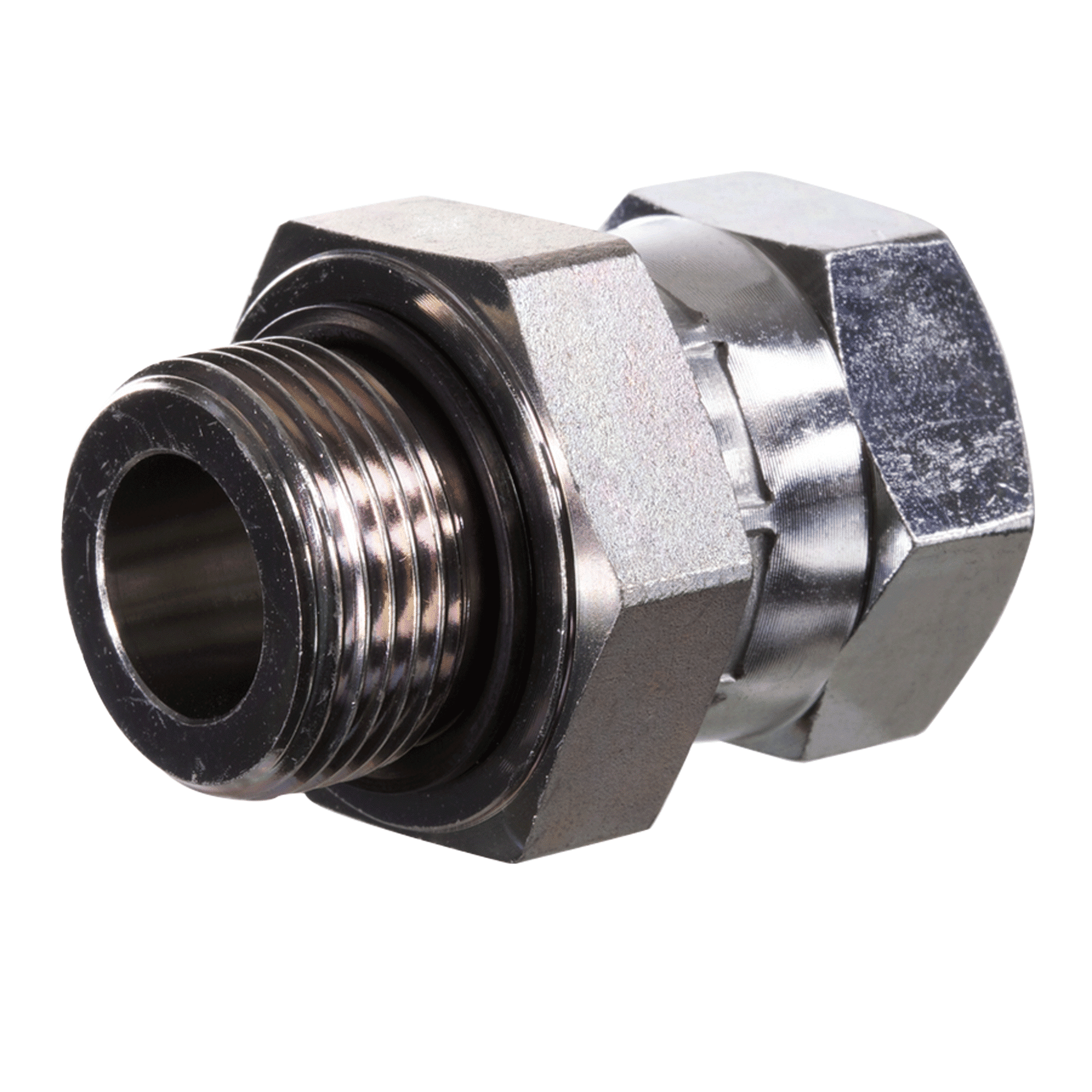

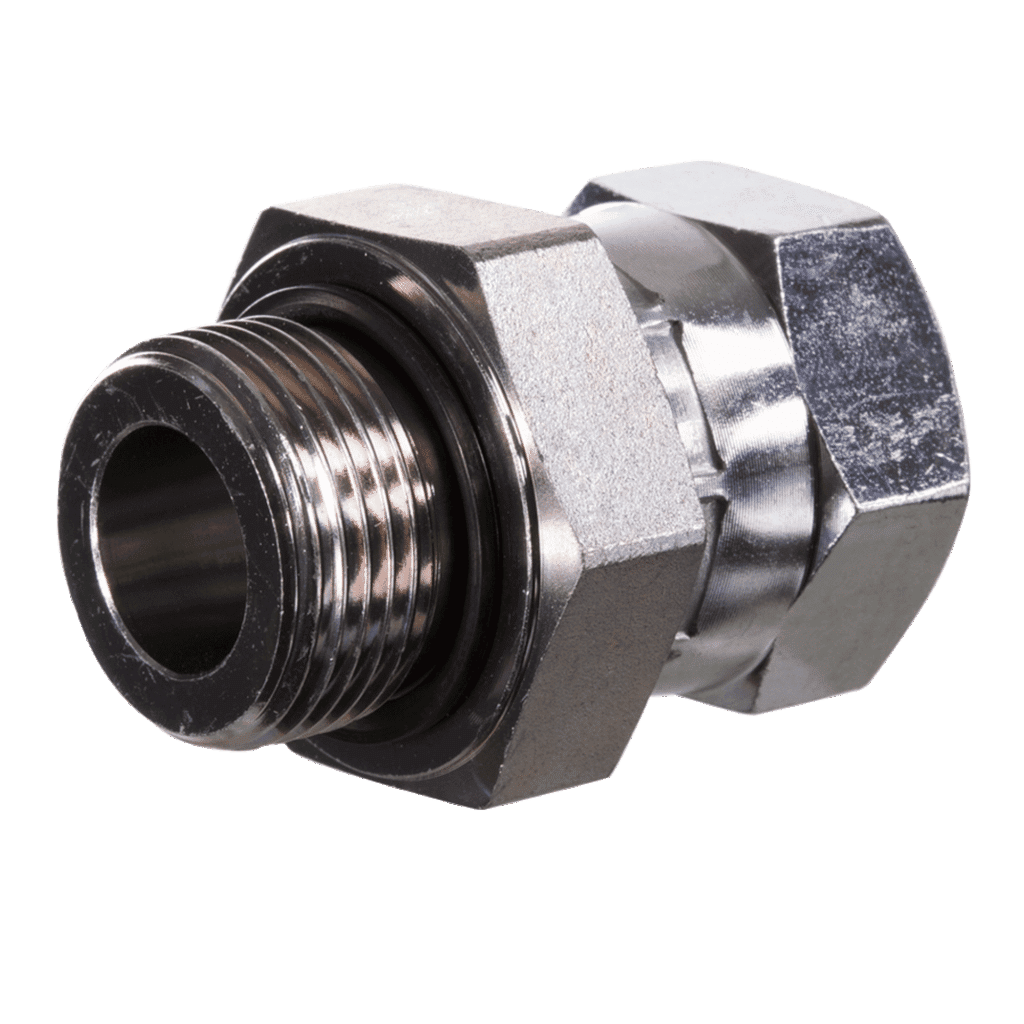

Screw-in sockets
Screw-in sockets. Straight. Metric cylindrical outer thread to uN / UNF nut threads. Shape E one end, 74° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 |
|---|---|---|---|---|
| M 10 x 1 | 7/16”-20 UNF | 14 | 16 | |
| M 12 x 1.5 | 1/2”-20 UNF | 17 | 17 | |
| M 14 x 1.5 | 9/16”-18 UNF | 19 | 19 | |
| M 16 x 1.5 | 3/4”-16 UNF | 22 | 22 | |
| M 22 x 1.5 | 7/8”-14 UNF | 27 | 27 | |
| M 27 x 2 | 1.1/16”-12 UN | 32 | 32 | |
| M 33 x 2 | 1.5/16”-12 UN | 41 | 38 |
SW, S1, S2 = Width across flats Spare Parts: WD Soft Seal for ED Fittings
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
