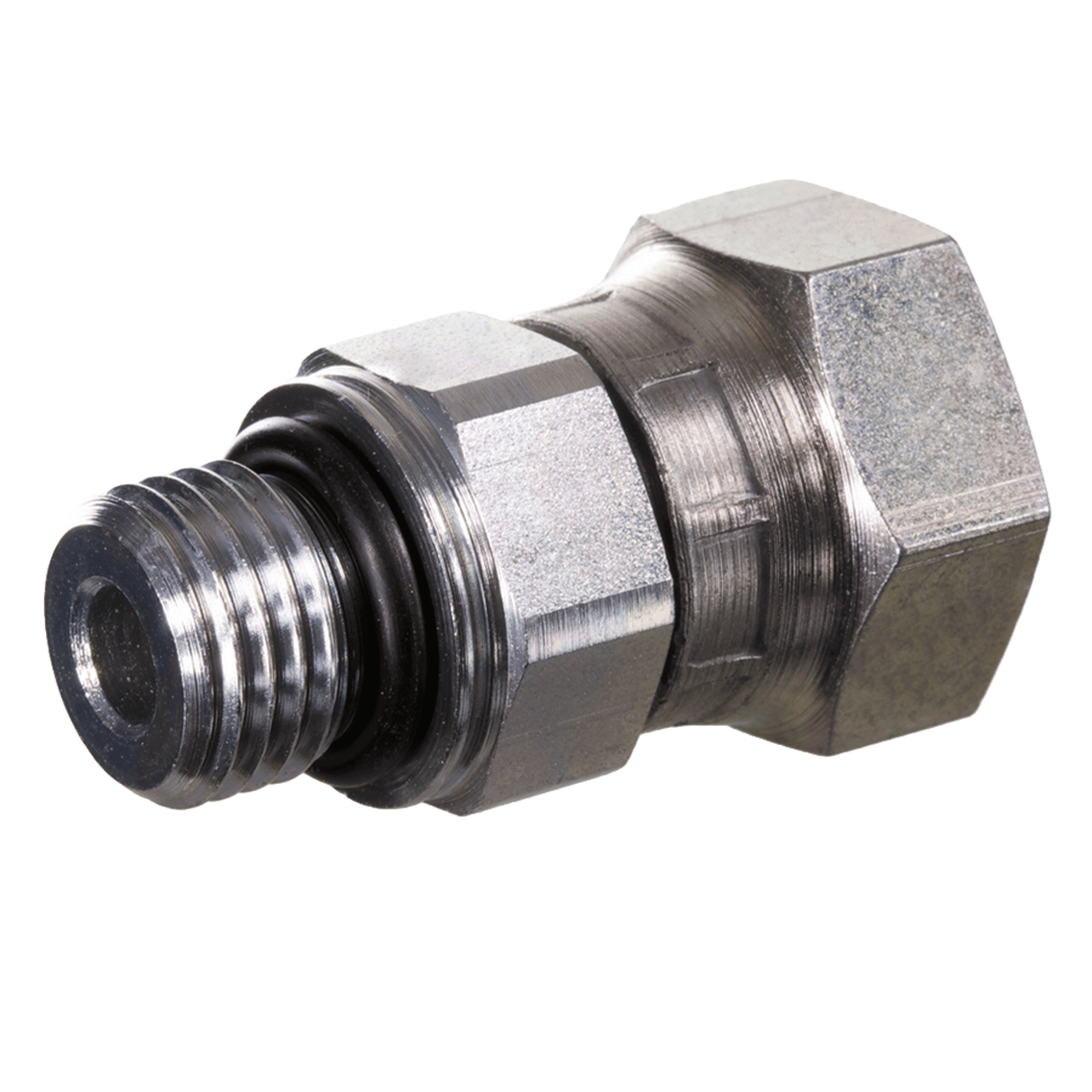

Screw-in sockets. Straight. Metric cylindrical outer thread to oRFS nut threads. O-ring seal on screw-in socket one end, flat seal the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 9 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 | OR |
|---|---|---|---|---|---|
| M 12 x 1.5 | 9/16”-18 UNF | 17 | 17 | 9.4 x 2.1 | |
| M 14 x 1.5 | 11/16”-16 UN | 19 | 22 | 11.4 x 2.1 | |
| M 16 x 1.5 | 11/16”-16 UN | 22 | 22 | 13.4 x 2.1 | |
| M 16 x 1.5 | 13/16”-16 UN | 22 | 24 | 13.4 x 2.1 | |
| M 22 x 1.5 | 1"-14 UNS | 27 | 30 | 19.4 x 2.1 | |
| M 27 x 2 | 1"-14 UNS | 27 | 30 | 23.7 x 2.8 | |
| M 27 x 2 | 1.3/16”-12 UN | 32 | 36 | 23.7 x 2.8 | |
| M 33 x 2 | 1.7/16”-12 UN | 41 | 41 | 29.7 x 2.8 | |
| M 42 x 2 | 1.11/16”-12 UN | 50 | 50 | 38.7 x 2.8 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
