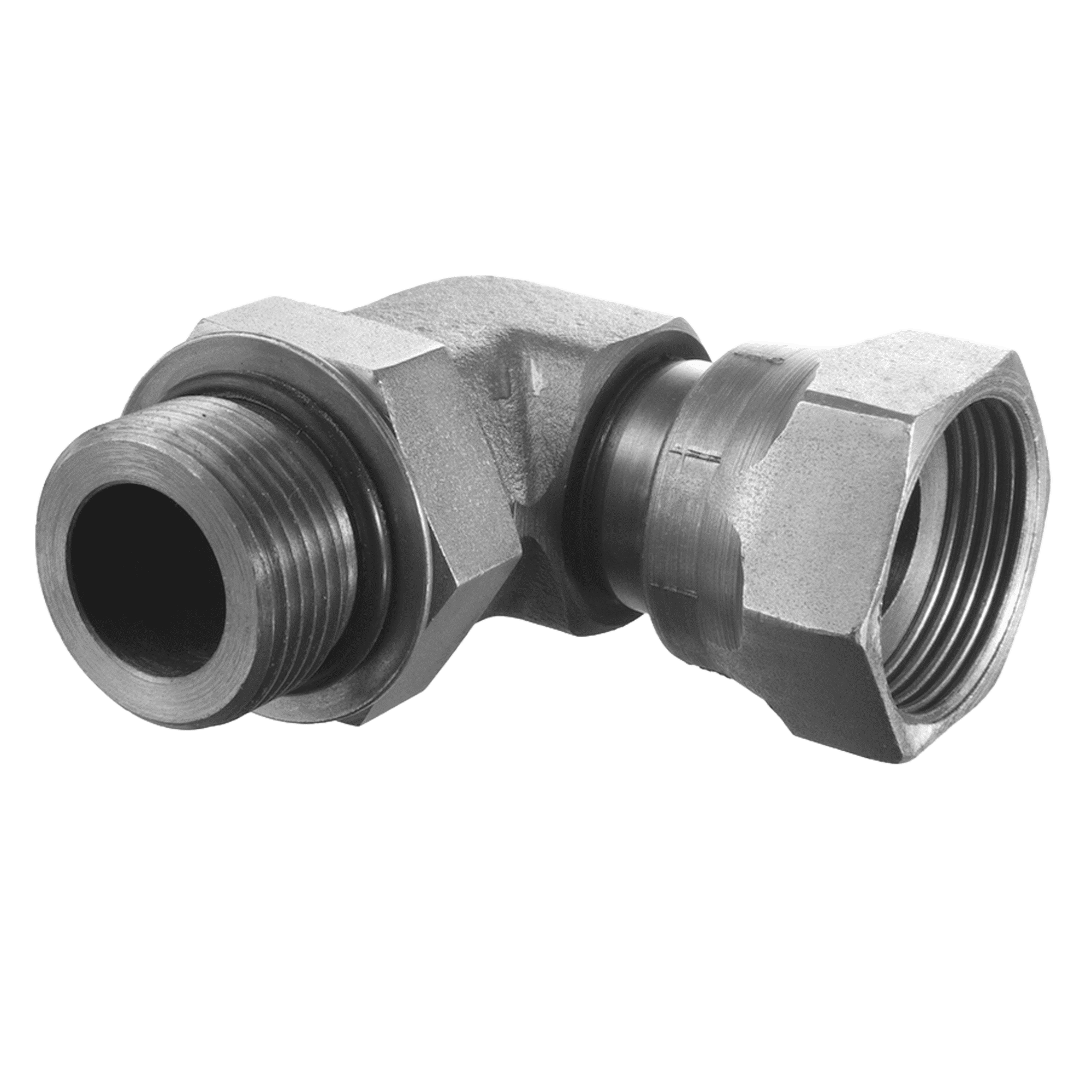

Screw-in socket, ORFS, angle 90°. Adjustable direction screw-in socket. UN / UNF external threads to oRFS nut threads. O-ring seal on screw-in socket one end, flat seal the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 | S2 | OR |
|---|---|---|---|---|---|---|
| 7/16”-20 UNF | 9/16”-18 UNF | 14 | 16 | 18 | 8.92 x 1.83 | |
| 9/16”-18 UNF | 11/16”-16 UN | 19 | 19 | 21 | 11.90 x 1.98 | |
| 3/4”-16 UNF | 13/16”-16 UN | 19 | 24 | 24 | 16.36 x 2.20 | |
| 7/8”-14 UNF | 1”–14 UNS | 27 | 27 | 29 | 19.18 x 2.46 | |
| 1.1/16”-12 UN | 1.3/16”-12 UN | 27 | 35 | 35 | 23.47 x 2.95 | |
| 1.5/16”-12 UN | 1.7/16”-12 UN | 33 | 41 | 41 | 29.74 x 2.95 | |
| 1.5/8”-12 UN | 1.11/16”-12 UN | 41 | 48 | 48 | 37.47 x 3.00 | |
| 1.7/8”-12 UN | 2"-12 UN | 48 | 54 | 57 | 43.69 x 3.00 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
