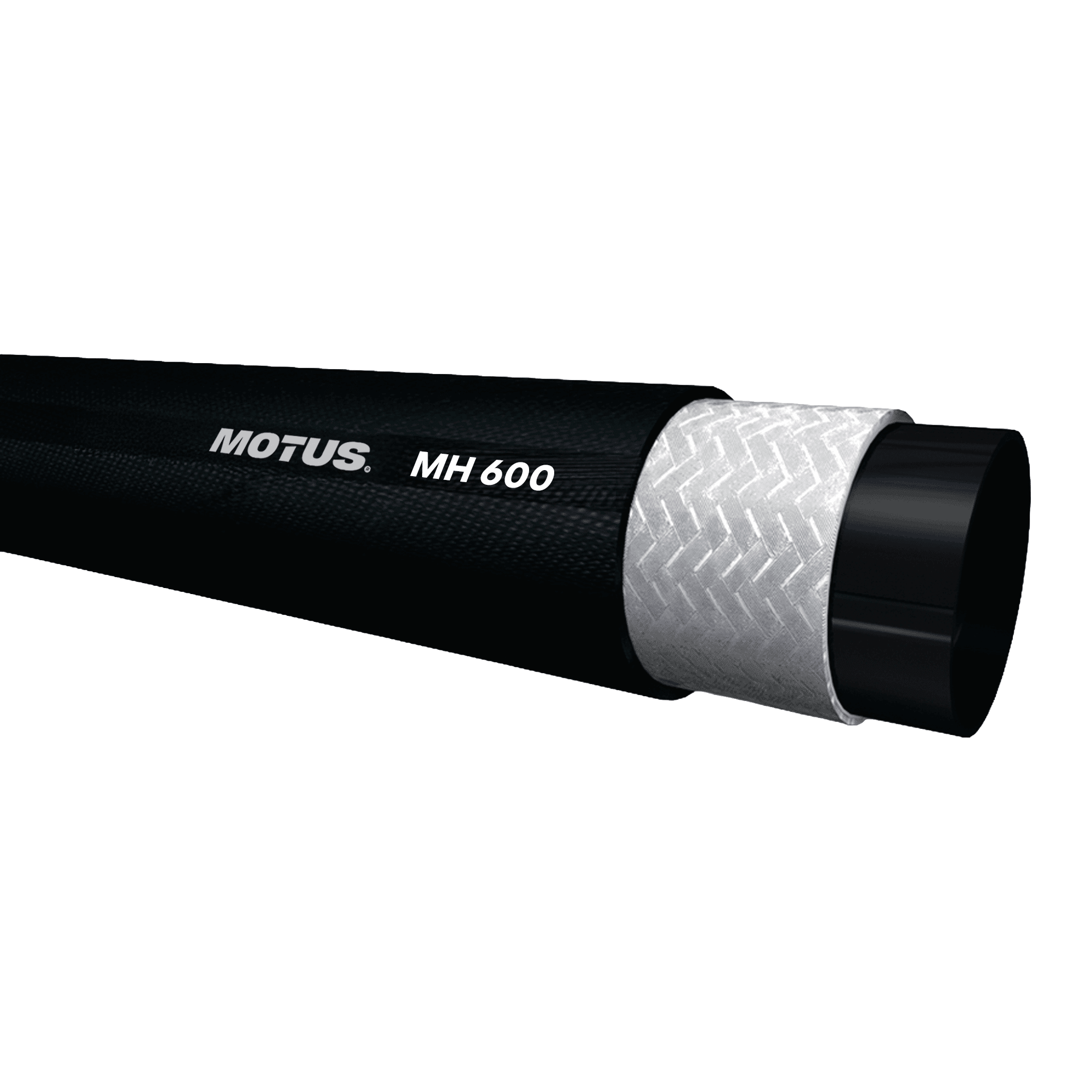

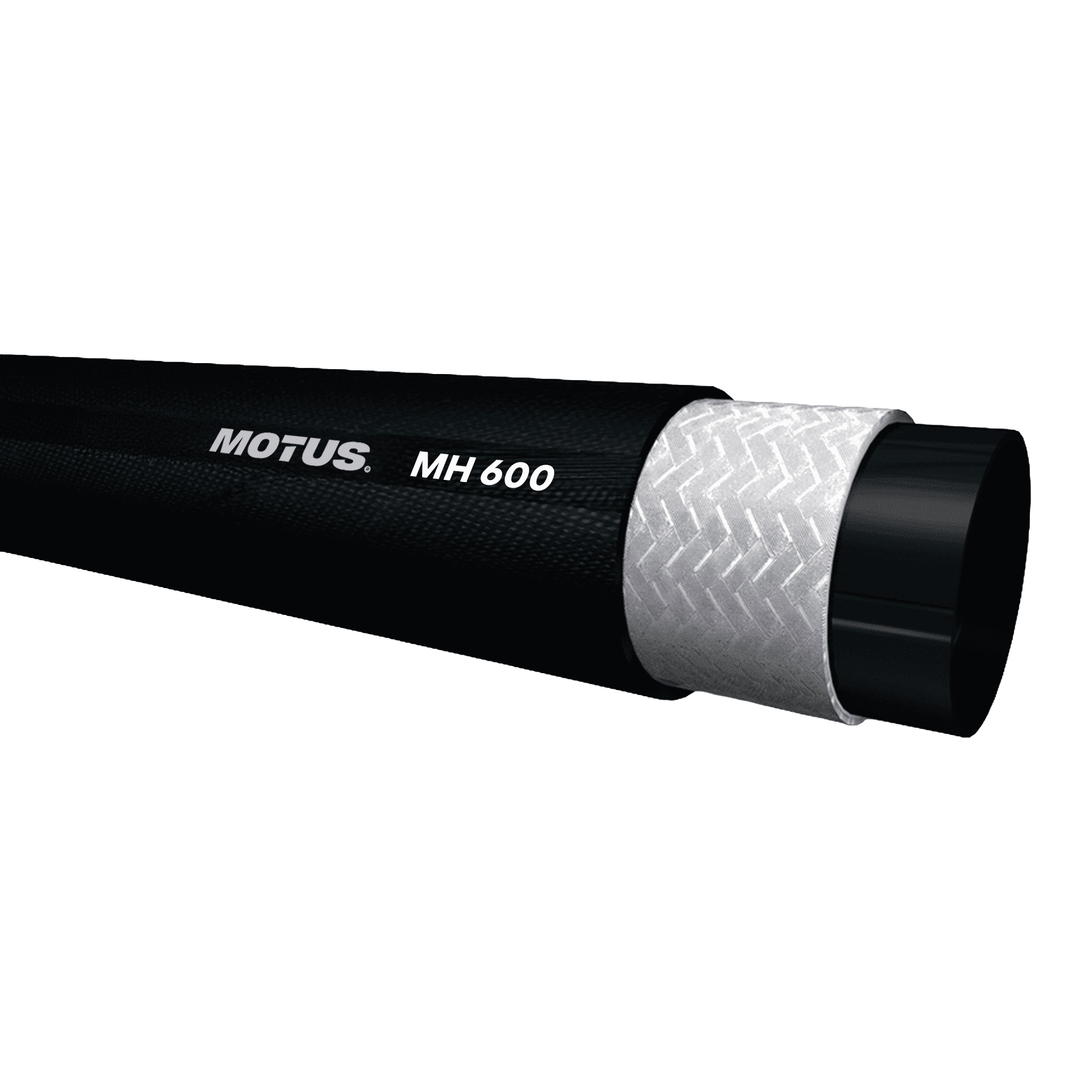

MH600 (Easy-Lock) Hydraulic Hose is a low pressure hose with textile insert for return lines and pneumatic controllers. It is suited to circuits without pressure surge loads or other critical applications.
| Application | Low pressure circuits (no pressure surge loads or critical applications), return hoses, pneumatic controllers |
| Standard | EN 854 R6, SAE 100 R 6, DN 25 is not specified in the standard |
| Inner layer | Oil resistant synthetic rubber |
| Insert | One braided textile insert |
| Outer layer | Oil resistant and weatherproof synthetic rubber |
| Colour | Black |
| Temp. min. | -40 °C |
| Temp. max. | 100 °C |
| Identification | DN | Size | Inches | Internal Ø min. (mm) | Internal Ø max. (mm) | External Ø min. (mm) | External Ø max. (mm) | Working pressure (bar) | Test pressure (bar) | Burst pressure (bar) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MH604 | 6 | 4 | 1/4″ | 5.9 | 6.9 | 11.9 | 13.5 | 28 | 56 | 112 | 65 |
| MH606 | 10 | 6 | 3/8″ | 9.0 | 10.0 | 15.1 | 16.7 | 28 | 56 | 112 | 80 |
| MH608 | 12 | 8 | 1/2″ | 12.1 | 13.3 | 19.0 | 20.6 | 28 | 56 | 112 | 100 |
| MH610 | 16 | 10 | 5/8″ | 15.3 | 16.5 | 22.2 | 23.8 | 24 | 48 | 96 | 125 |
| MH612 | 19 | 12 | 3/4″ | 18.2 | 19.8 | 25.4 | 27.8 | 21 | 41 | 83 | 150 |
| MH616 | 25 | 16 | 1″ | 24.6 | 26.2 | 32.5 | 34.9 | 13 | 26 | 52 | 197 |
DN = nominal diameter, nominal width.
Catalogue page: 17
