$200.00 (NZD) excl. GST

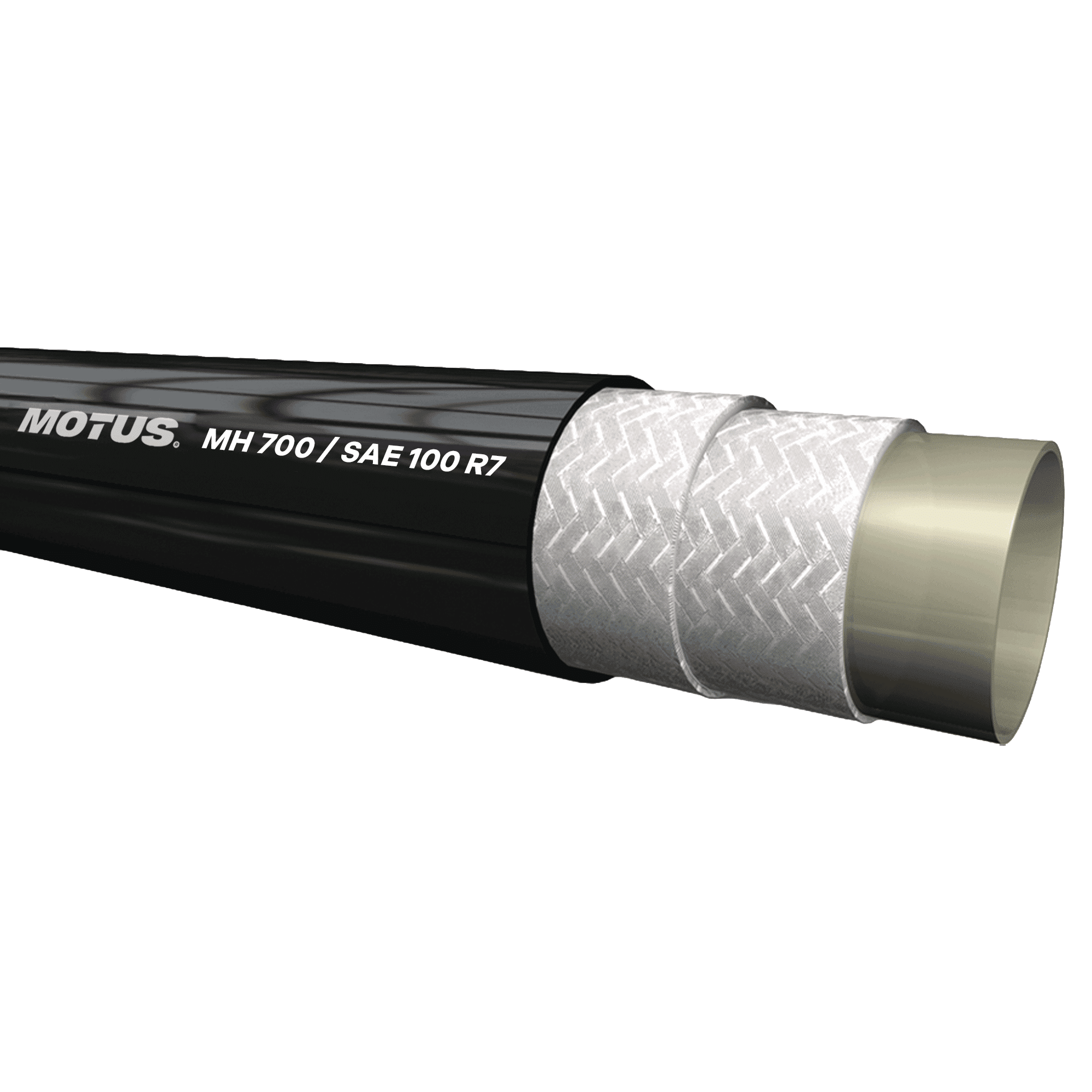

MH700 (R7) Hydraulic Hose is a thermoplastic high-pressure hose suited to forklift trucks, lubrication lines and other medium high pressure systems. It offers strong chemical resistance and very good reverse bending fatigue strength.
| Application | Medium high pressure systems, forklift trucks, lubrication line |
| Special features | High ozone and abrasion resistance, no swelling or brittleness when used with solvents or alkaline media, very good reverse bending fatigue strength, slight volumetric expansion |
| Standard | SAE 100 R 7 |
| Inner layer | Polyester elastomer |
| Insert | Two high tensile polyester braided inserts |
| Outer layer | Polyurethane |
| Colour | Black |
| Temp. min. | -40 °C |
| Temp. max. | 93 °C |
| Elongation | +3% to -3% |
| Media | Mineral oil, ASTM, ASTM3, polyglycol based oil, synthetic oils, water (0 °C to +60 °C), water-oil emulsions (up to 60 °C) |
| Identification | DN | Size | Inches | Internal Ø (mm) | External Ø (mm) | Working pressure (bar) | Burst pressure (bar) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|---|
| MH703 | 5 | 3 | 3/16″ | 5 | 9.7 | 210 | 840 | 75 |
| MH704 | 6 | 4 | 1/4″ | 6 | 12.1 | 215 | 860 | 100 |
| MH705 | 8 | 5 | 5/16″ | 8 | 13.8 | 190 | 760 | 115 |
| MH706 | 10 | 6 | 3/8″ | 10 | 16.1 | 160 | 640 | 125 |
| MH708 | 12 | 8 | 1/2″ | 12 | 19.4 | 140 | 560 | 175 |
Note: The change in length of the hose is determined at maximum working pressure during testing to EN ISO 1402.
DN = nominal diameter, nominal width.
