SAE 100 R15 hydraulic hose for high-load, high-pressure circuits in mining, shipbuilding and hydrostatic drives.
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION

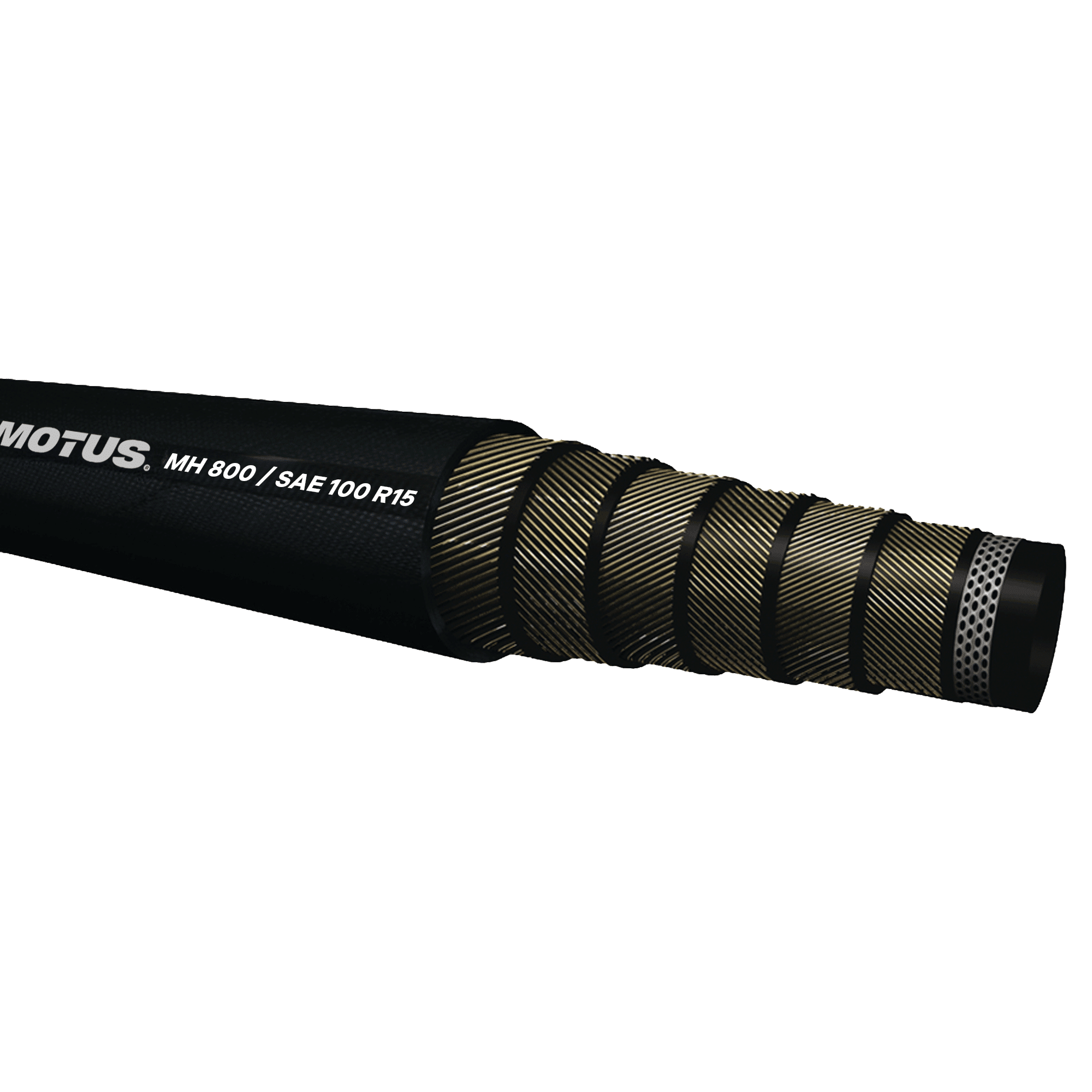

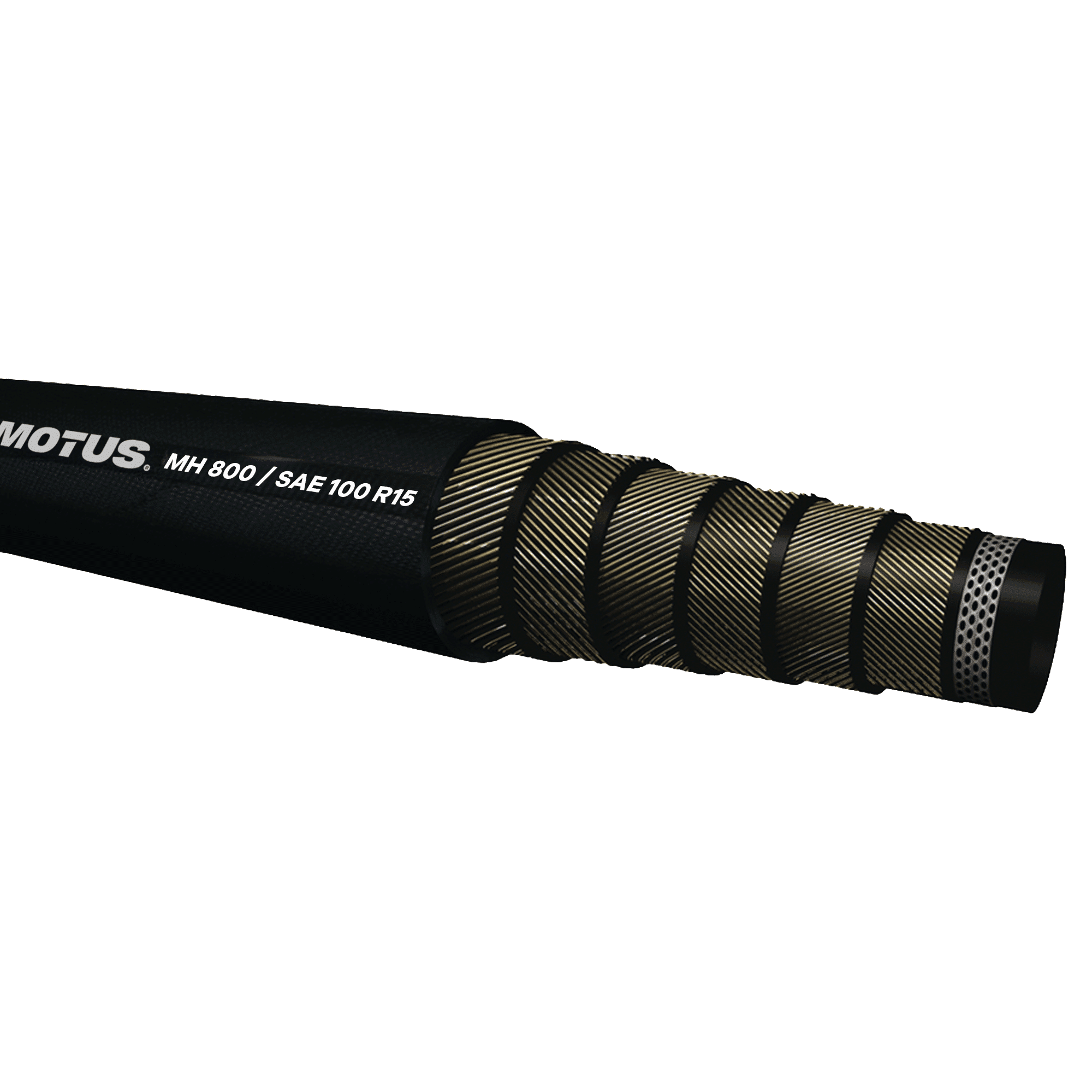

MH800 (R15) Hydraulic Hose is designed for high pressure circuits with heavy loads, including hydrostatic gearboxes, shipbuilding and mining applications. It provides robust spiral reinforcement for demanding operating conditions.
| Application | High pressure circuits with high loads, hydrostatic gearboxes, shipbuilding, mining and opencast mining |
| Standard | SAE 100 R 15 |
| Inner layer | Oil resistant synthetic rubber |
| Insert | Four (up to NW 25) or six (from NW 32) high tensile steel wire spirals |
| Outer layer | Synthetic rubber with high temperature, ozone and abrasion resistance |
| Colour | Black |
| Temp. min. | -40 °C |
| Temp. max. | 121 °C |
| Elongation | +2% to -2% |
| Media | Mineral oil, glycol, water (0 °C to +70 °C), water-oil emulsions |
| Identification | DN | Size | Inches | Internal Ø (mm) | External Ø (mm) | Working pressure (bar) | Burst pressure (bar) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|---|
| MH812 | 19 | 12 | 3/4″ | 19.0 | 32.0 | 420 | 1680 | 265 |
| MH816 | 25 | 16 | 1″ | 25.4 | 38.2 | 420 | 1680 | 330 |
| MH820 | 31 | 20 | 1.1/4″ | 31.8 | 50.4 | 420 | 1680 | 445 |
| MH824 | 38 | 24 | 1.1/2″ | 38.1 | 57.3 | 420 | 1680 | 530 |
| MH832 | 51 | 32 | 2″ | 50.8 | 71.5 | 420 | 1680 | 700 |
Note: The change in length of the hose is determined at maximum working pressure during testing to EN ISO 1402.
DN = nominal diameter, nominal width.
Catalogue page: 16
SAE 100 R15 hydraulic hose for high-load, high-pressure circuits in mining, shipbuilding and hydrostatic drives.
Check the hose size, working pressure, temperature range, media compatibility and minimum bend radius against your application.
