$200.00 (NZD) excl. GST

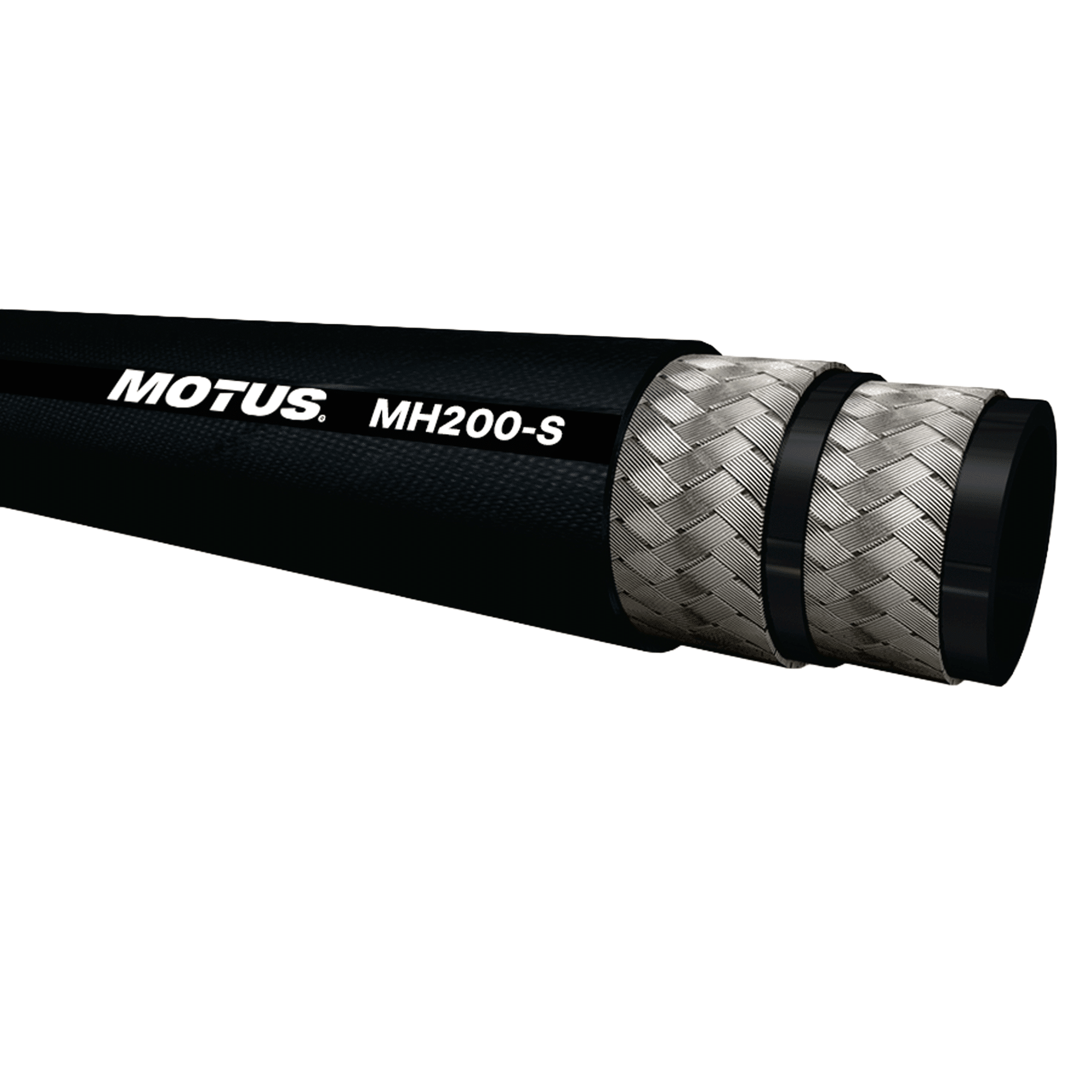

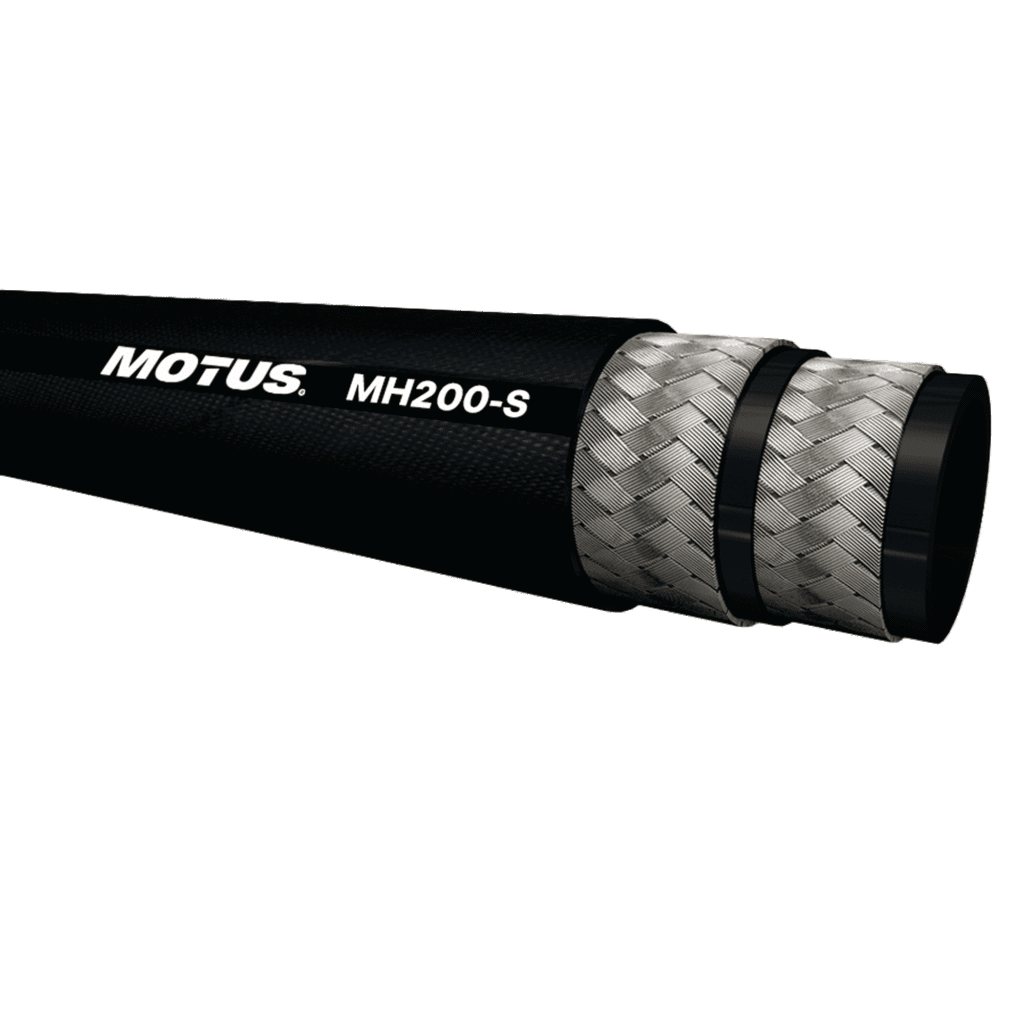

MH200-S Hydraulic Hose is a two-wire braided hose designed for higher working pressures and long service life. It exceeds EN 857 2SC and is impulse tested with up to 1 million cycles.
| Inner tube | Oil resistant, synthetic rubber |
| Reinforcement | Two high-tensile steel wire braids |
| Cover | Oil resistant and weatherproof synthetic rubber |
| Application | Medium pressure circuits with restricted installation spaces |
| Colour | Black |
| Media | Glycol, water-oil-emulsions, water (0 °C to +70 °C), mineral oil |
| Special features | Impulse tested with up to 1 million cycles |
| Standard | Exceeds EN 857 2SC Exceeds ISO 18752 BC |
| Temp. max. | 100 °C |
| Temp. min. | -40 °C |
| Identification | DN | Inch | Size | Inside Ø (mm) | Outside Ø (mm) | Working pressure (bar) | Test pressure (bar) | Burst pressure (bar) | Bend radius min. (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MH204-S | 6 | 1/4″ | 4 | 6.4 | 13.4 | 450 | 900 | 1800 | 45 |
| MH205-S | 8 | 5/16″ | 5 | 7.9 | 15 | 420 | 840 | 1680 | 60 |
| MH206-S | 10 | 3/8″ | 6 | 9.5 | 17.4 | 385 | 770 | 1540 | 70 |
| MH208-S | 12 | 1/2″ | 8 | 12.7 | 20.6 | 350 | 700 | 1400 | 90 |
| MH210-S | 16 | 5/8″ | 10 | 15.9 | 23.7 | 290 | 580 | 1160 | 130 |
| MH212-S | 19 | 3/4″ | 12 | 19 | 27.7 | 280 | 560 | 1120 | 160 |
| MH216-S | 25 | 1″ | 16 | 25.4 | 35.6 | 200 | 400 | 800 | 210 |
| MH220-S | 31 | 1 1/4″ | 20 | 32.5 | 43.3 | 175 | 350 | 700 | 300 |
DN = nominal diameter, nominal width.
