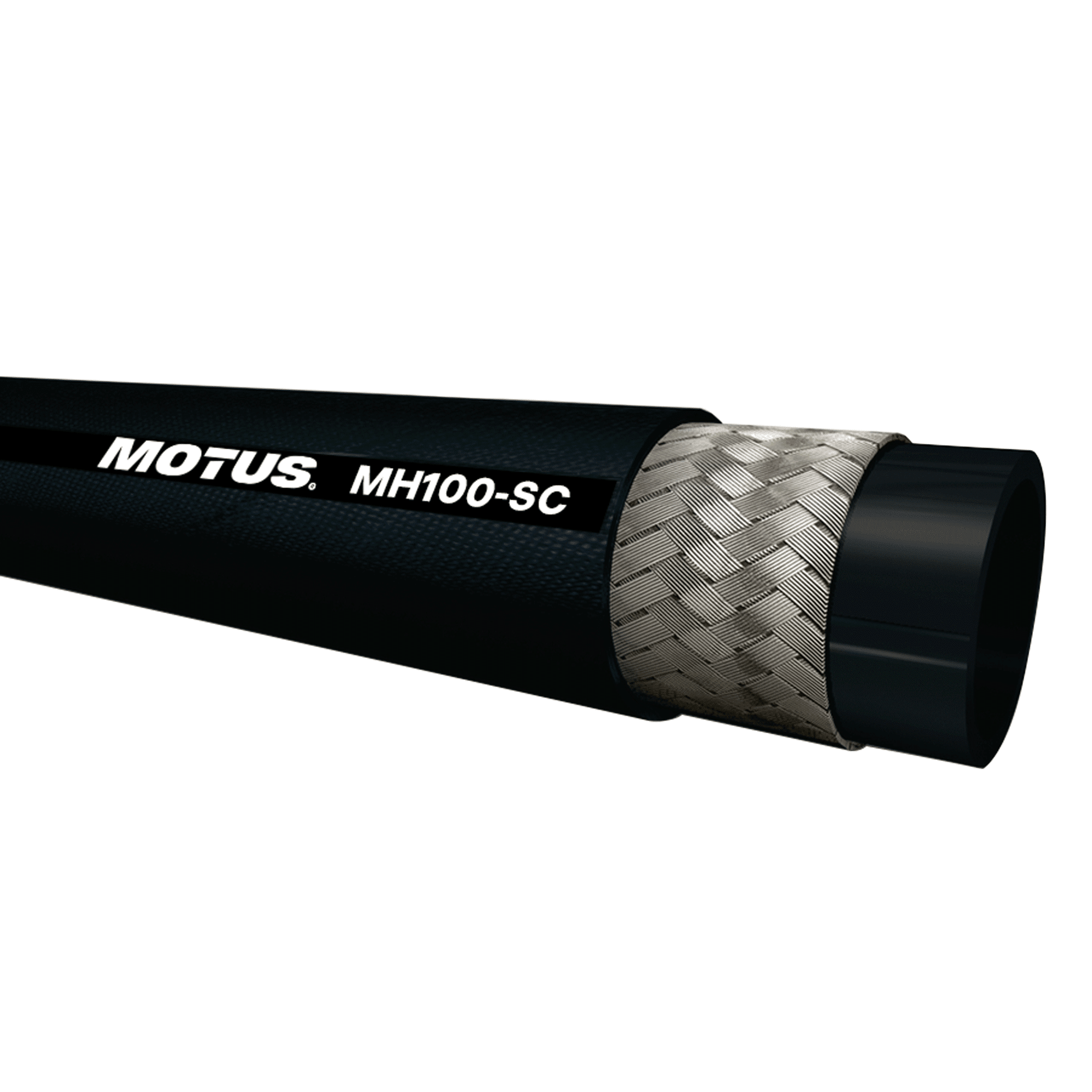

MH100-SC Hydraulic Hose is a single-wire braided EN 857 1SC hose with a smooth cover and small bend radius. It is suited to medium pressure circuits, pre-control hoses and return hose applications.
| Inner tube | Oil resistant, synthetic rubber |
| Reinforcement | One high-tensile steel wire braid |
| Cover | Oil resistant and weatherproof synthetic rubber smooth cover |
| Application | Medium pressure circuits with restricted spaces
Pre-control hoses Return hoses |
| Colour | Black |
| Elongation | +2% to -4% |
| Media | Mineral oil, poly-glycol based oil, water (0 °C to +70 °C), water-oil-emulsions |
| Special features | Small bend radius |
| Standard | EN 857 1SC |
| Temp. max. | 100 °C |
| Temp. min. | -40 °C |
| Identification | DN | Inch | Size | Inside Ø min. (mm) | Inside Ø max. (mm) | Working pressure (bar) | Ø reinforcement min. (mm) | Ø reinforcement max. (mm) | Outside Ø max. (mm) | Test pressure (bar) | Burst pressure (bar) | Bend radius min. (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MH104-SC | 6 | 1/4″ | 4 | 6.4 | 6.9 | 225 | 9.6 | 10.8 | 13.5 | 450 | 900 | 75 |
| MH105-SC | 8 | 5/16″ | 5 | 7.9 | 8.5 | 215 | 10.9 | 12.1 | 14.5 | 430 | 860 | 85 |
| MH106-SC | 10 | 3/8″ | 6 | 9.5 | 10.1 | 180 | 12.7 | 14.5 | 16.9 | 360 | 720 | 90 |
| MH108-SC | 12 | 1/2″ | 8 | 12.7 | 13.5 | 160 | 15.9 | 18.1 | 20.4 | 320 | 640 | 130 |
| MH110-SC | 16 | 5/8″ | 10 | 15.8 | 16.7 | 130 | 19.8 | 21 | 23 | 260 | 520 | 150 |
| MH112-SC | 19 | 3/4″ | 12 | 18.8 | 19.8 | 105 | 23.2 | 24.4 | 26.7 | 210 | 420 | 180 |
| MH116-SC | 25 | 1″ | 16 | 25.4 | 26.4 | 88 | 30.7 | 31.9 | 34.9 | 176 | 352 | 230 |
Note: The change in length of the hose is determined at maximum working pressure during testing according to EN ISO 1402.
DN = nominal diameter, nominal width.
Catalogue page: 23
