$200.00 (NZD) excl. GST

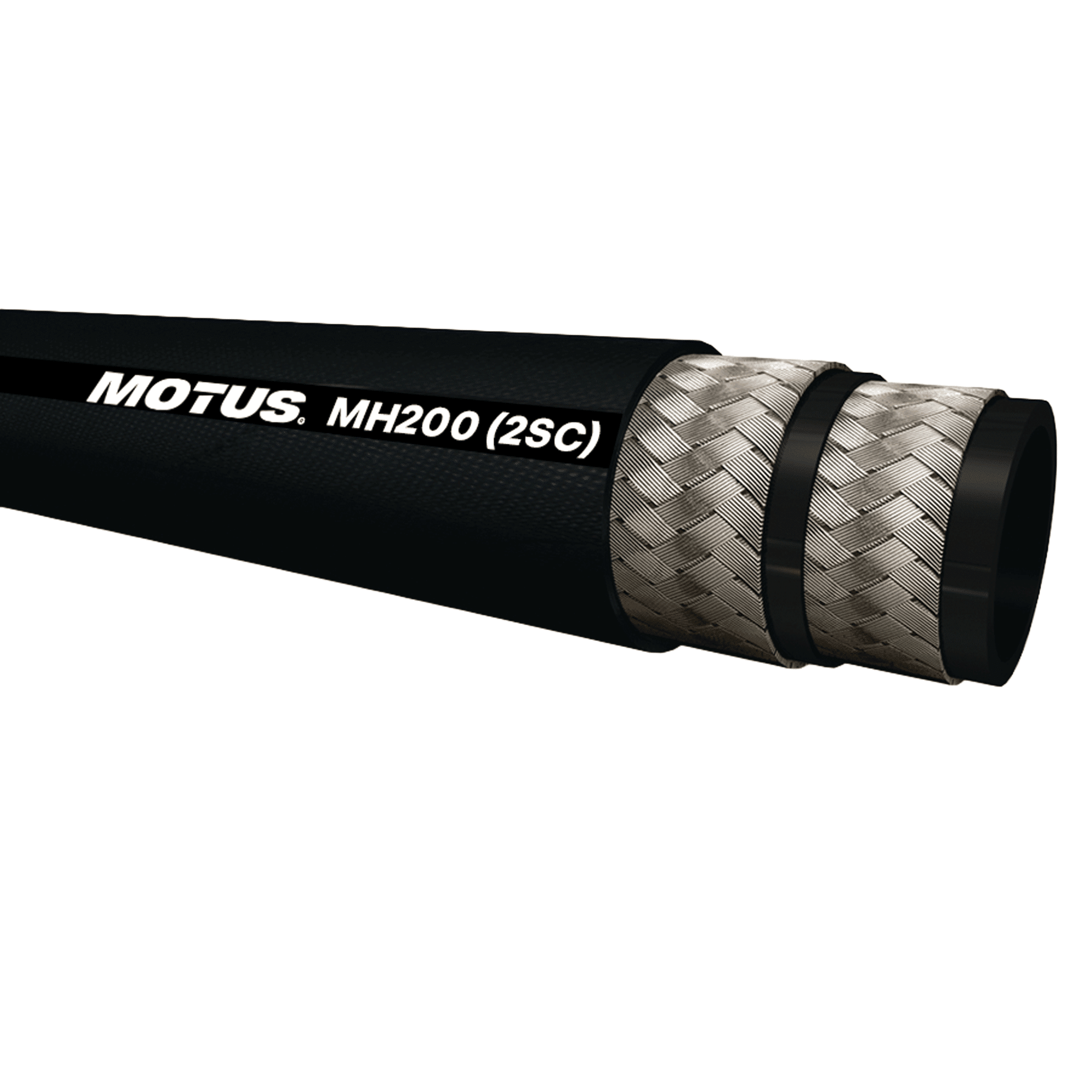

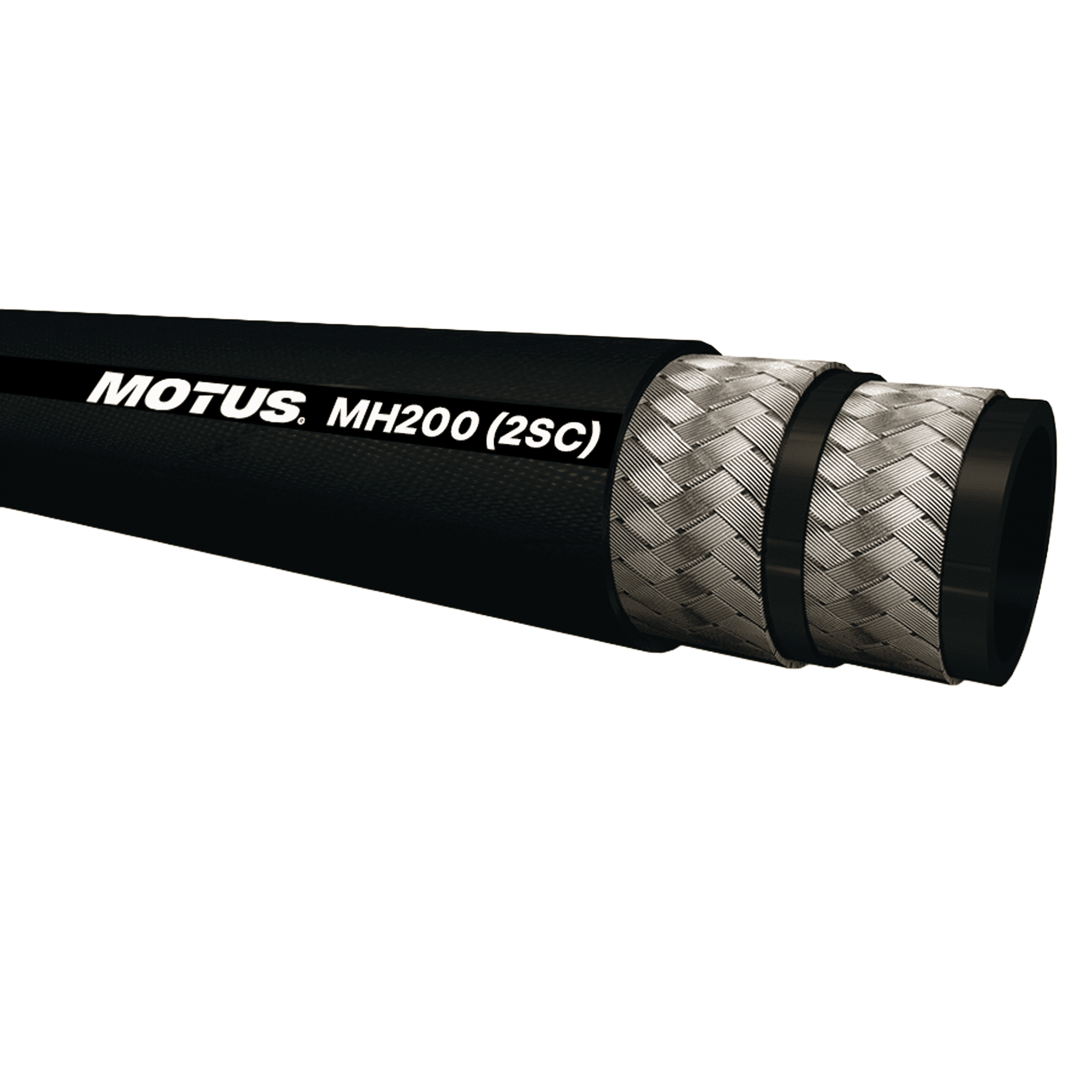

MH200 (2SC) Hydraulic Hose is a compact two-wire braided hose for medium pressure circuits where space is limited. It combines pressure performance, durability and a narrow bending radius for demanding hydraulic systems.
| Application | Medium pressure circuits with restricted installation spaces |
| Special features | Narrow bending radius |
| Standard | EN 857 2 SC |
| Inner layer | Oil resistant synthetic rubber |
| Insert | Two high tensile steel wire braided inserts |
| Outer layer | Oil resistant and weatherproof synthetic rubber |
| Colour | Black |
| Temp. min. | -40 °C |
| Temp. max. | 100 °C |
| Elongation | +2% to -4% |
| Media | Mineral oil, polyglycol based oil, water (0 °C to +70 °C), water-oil emulsions |
| Identification | DN | Size | Inches | Internal Ø min. (mm) | Internal Ø max. (mm) | Ø insert min. (mm) | Ø insert max. (mm) | External Ø max. (mm) | Working pressure (bar) | Test pressure (bar) | Burst pressure (bar) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MH204 | 6 | 4 | 1/4″ | 6.1 | 6.9 | 10.6 | 11.7 | 14.2 | 400 | 800 | 1600 | 75 |
| MH205 | 8 | 5 | 5/16″ | 7.7 | 8.5 | 12.1 | 13.3 | 16.0 | 350 | 700 | 1400 | 85 |
| MH206 | 10 | 6 | 3/8″ | 9.3 | 10.1 | 14.4 | 15.6 | 18.3 | 330 | 660 | 1320 | 90 |
| MH208 | 12 | 8 | 1/2″ | 12.3 | 13.5 | 17.5 | 19.1 | 21.5 | 275 | 550 | 1100 | 130 |
| MH210 | 16 | 10 | 5/8″ | 15.5 | 16.7 | 20.5 | 22.3 | 24.7 | 250 | 500 | 1000 | 170 |
| MH212 | 19 | 12 | 3/4″ | 18.6 | 19.8 | 24.6 | 26.4 | 28.6 | 215 | 430 | 860 | 200 |
| MH216 | 25 | 16 | 1″ | 25.0 | 26.4 | 32.5 | 34.3 | 36.6 | 165 | 330 | 660 | 250 |
Note: The change in length of the hose is determined at maximum working pressure during testing to EN ISO 1402.
DN = nominal diameter, nominal width.
