Compact pilot hydraulic hose for medium pressure circuits with restricted installation space, pre-control hoses and return hose applications.
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION

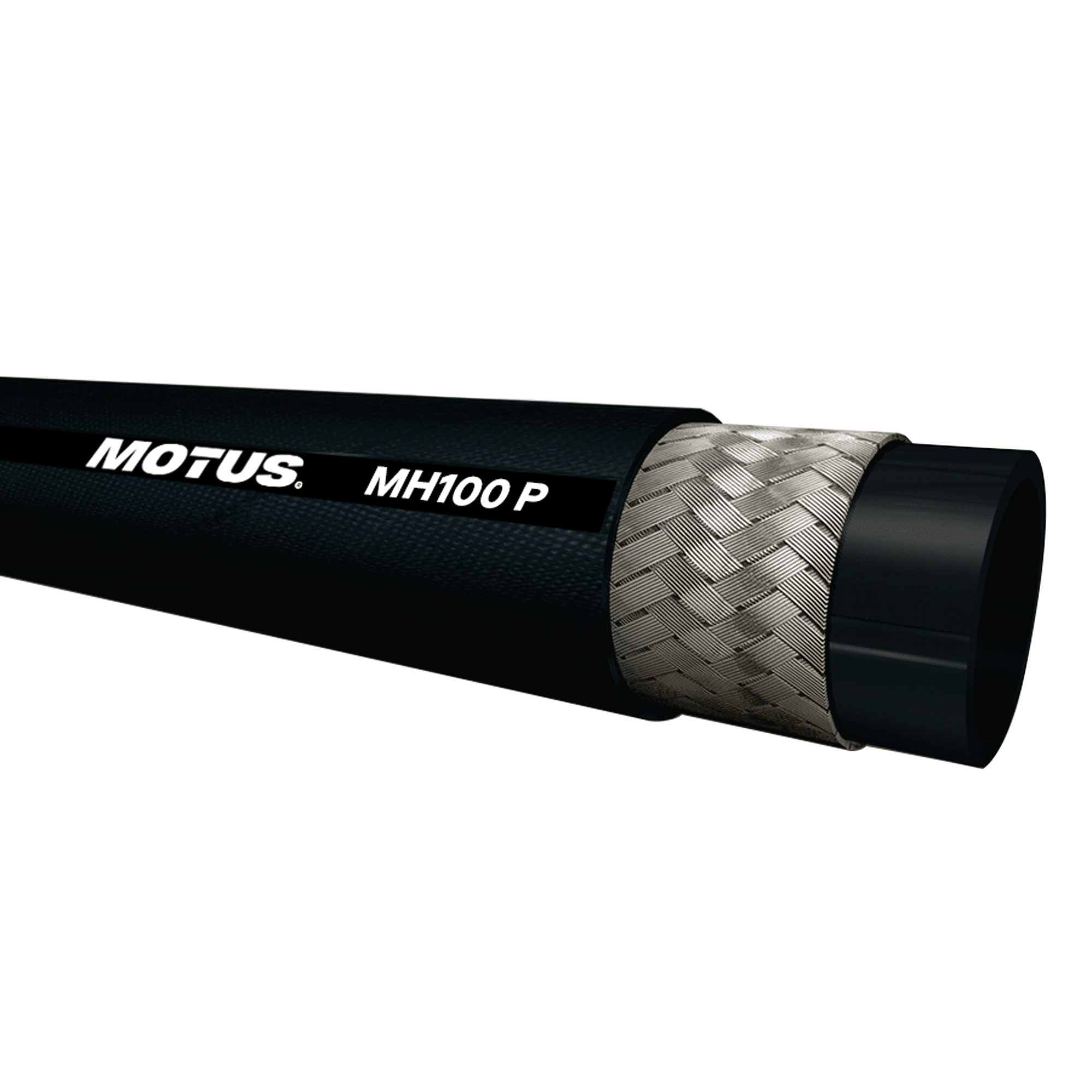

MH100 P Hydraulic Hose is a compact pilot hose designed for medium pressure circuits where installation space is limited. Suitable for pre-control hoses and return hose applications, it delivers reliable flexibility and durability for demanding hydraulic systems.
| Application | Medium pressure circuits with restricted installation spaces, pre-control hoses, return hoses |
| Special features | Narrow bending radius, kink resistant |
| Inner layer | Oil resistant synthetic rubber |
| Insert | One high tensile steel wire braided insert |
| Outer layer | Environmentally safe synthetic rubber |
| Colour | Black |
| Temp. min. | -40 °C |
| Temp. max. | 100 °C |
| Media | Mineral oil, polyglycol based oil, water (0 °C to +70 °C), water-oil emulsions |
| Identification | DN | Size | Inches | Internal Ø (mm) | External Ø (mm) | Working pressure (bar) | Burst pressure (bar) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|---|
| MH104P | 6 | 4 | 1/4″ | 6.4 | 11.5 | 120 | 480 | 25 |
| MH105P | 8 | 5 | 5/16″ | 7.9 | 13.1 | 120 | 480 | 30 |
| MH106P | 10 | 6 | 3/8″ | 9.5 | 14.8 | 100 | 400 | 40 |
| MH108P | 12 | 8 | 1/2″ | 12.7 | 18.0 | 100 | 400 | 50 |
DN = nominal diameter, nominal width.
Catalogue page: 11
Compact pilot hydraulic hose for medium pressure circuits with restricted installation space, pre-control hoses and return hose applications.
Check the hose size, working pressure, temperature range, media compatibility and minimum bend radius against your application.
