Compact high-pressure hydraulic hose designed for medium pressure circuits with restricted installation space, pre-control hoses and return hose applications.
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION

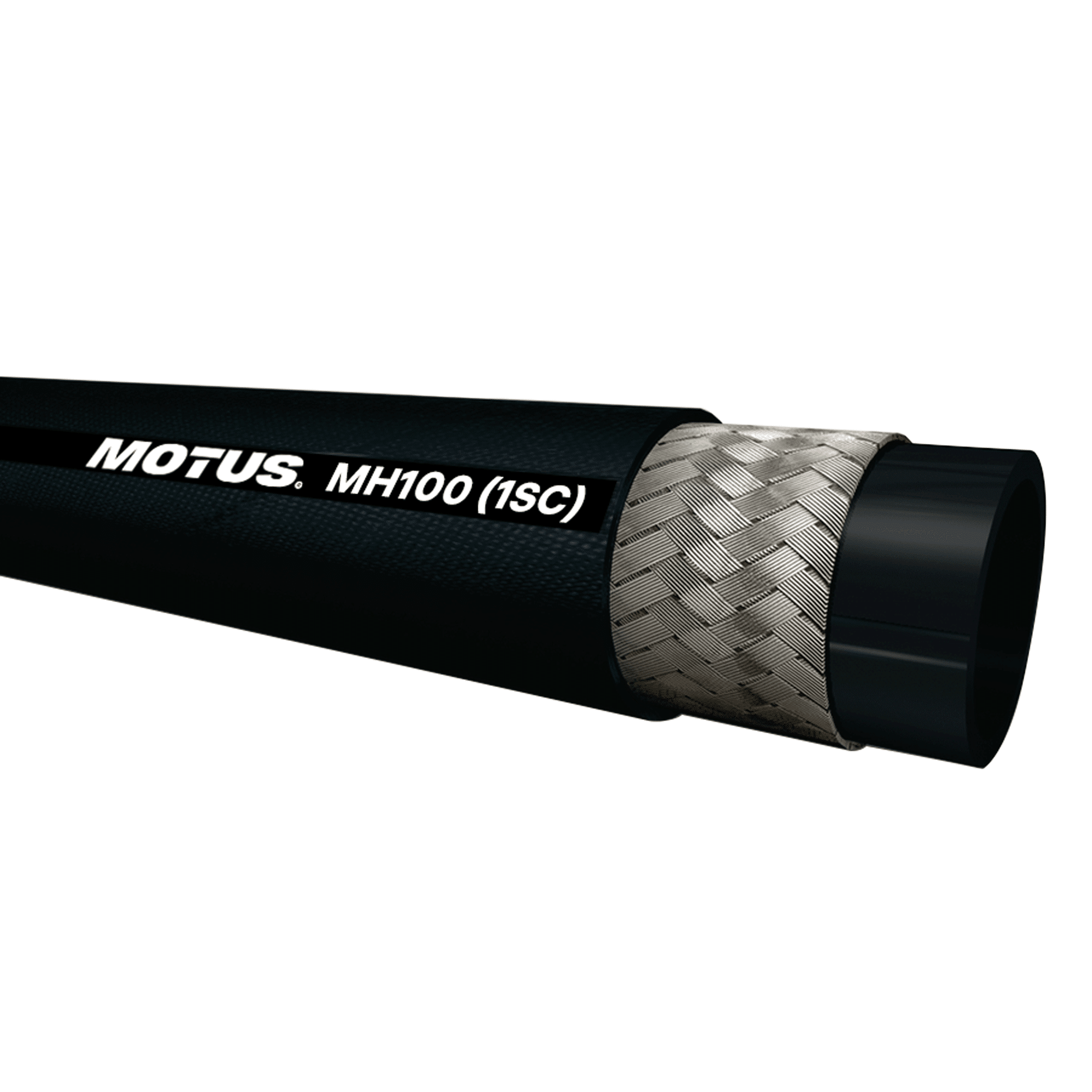

MH100 (1SC) is a compact hydraulic hose designed for medium pressure circuits where installation space is limited. Suitable for pre-control hoses and return hose applications, it offers reliable flexibility, pressure performance and durability for demanding hydraulic systems.
| Application | Medium pressure circuits with restricted installation spaces, pre-control hoses, return hoses |
| Special features | Narrow bending radius |
| Standard | EN 857 1SC |
| Inner layer | Oil resistant synthetic rubber |
| Insert | One high tensile steel wire braided insert |
| Outer layer | Oil resistant and weatherproof synthetic rubber |
| Colour | Black |
| Temperature range | -40°C to 100°C |
| Elongation | +2% to -4% |
| Media | Mineral oil, polyglycol based oil, water (0°C to +70°C), water-oil emulsions |
| Identification | DN | Size | Inches | Internal Ø min. (mm) | Internal Ø max. (mm) | Ø insert min. (mm) | Ø insert max. (mm) | External Ø max. (mm) | Working pressure (bar) | Test pressure (bar) | Burst pressure (bar) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MH104 | 6 | 4 | 1/4″ | 6.1 | 6.9 | 9.6 | 10.8 | 13.5 | 225 | 450 | 900 | 75 |
| MH105 | 8 | 5 | 5/16″ | 7.7 | 8.5 | 10.9 | 12.1 | 14.5 | 215 | 430 | 860 | 85 |
| MH106 | 10 | 6 | 3/8″ | 9.3 | 10.1 | 12.7 | 14.5 | 16.9 | 180 | 360 | 720 | 90 |
| MH108 | 12 | 8 | 1/2″ | 12.3 | 13.5 | 15.9 | 18.1 | 20.4 | 160 | 320 | 640 | 130 |
| MH110 | 16 | 10 | 5/8″ | 15.5 | 16.7 | 19.8 | 21.0 | 23.0 | 130 | 260 | 520 | 150 |
| MH112 | 19 | 12 | 3/4″ | 18.6 | 19.8 | 23.2 | 24.4 | 26.7 | 105 | 210 | 420 | 180 |
| MH116 | 25 | 16 | 1″ | 25.0 | 26.4 | 30.7 | 31.9 | 34.9 | 88 | 176 | 352 | 230 |
Note: The change in length of the hose is determined at maximum working pressure during testing to EN ISO 1402.
DN = nominal diameter, nominal width.
Catalogue page: 10
Compact high-pressure hydraulic hose designed for medium pressure circuits with restricted installation space, pre-control hoses and return hose applications.
Check the hose size, working pressure, temperature range, media compatibility and minimum bend radius against your application.
