Compression Fittings

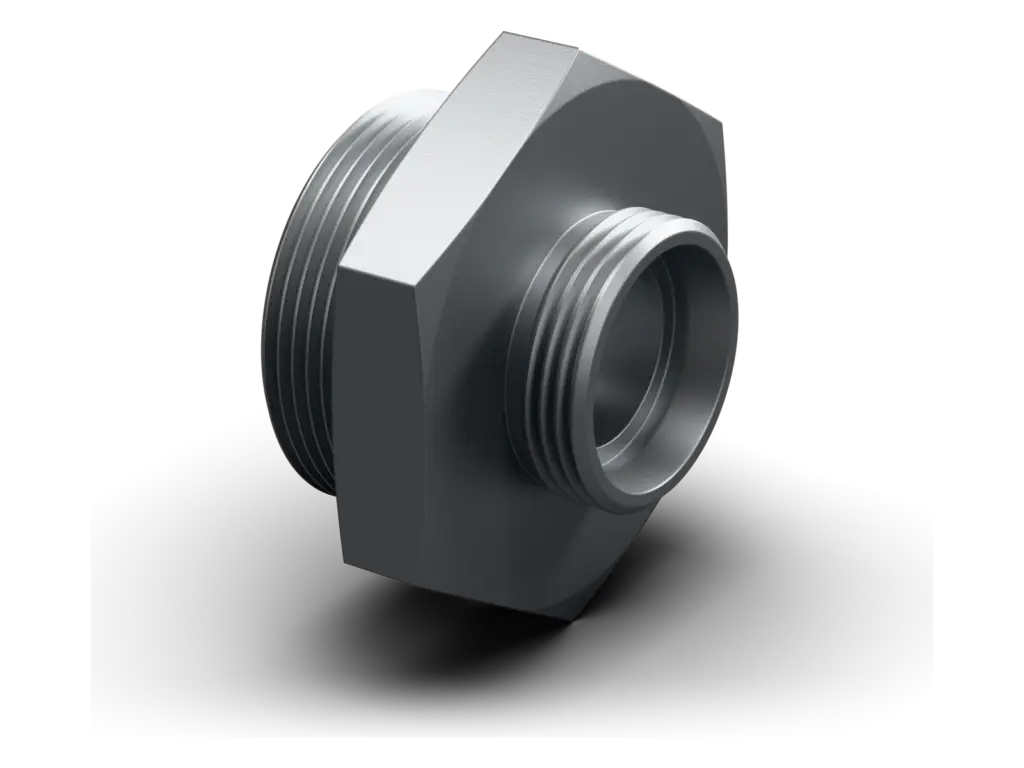

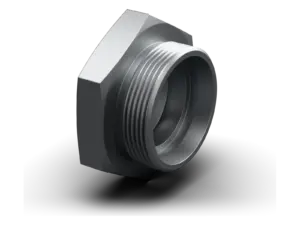

Metric Male Union (G)

Metric Male Union (G)

Fitting. Straight. Metric cylindrical outer thread at both ends. 24° inner cone. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 90 sizes, each with its own part number.

90sizes
MLLM-MLLM-0808-MC to MHM-MLM-3630-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardISO 8434-1
SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationSeriesWorking pressure barØ d1 mmØ d2 mmL1 mmL2 mmSW mm
LLPN 100442012.09
LLPN 100642010.511
LLPN 10066209.011
LLPN 100842212.512
LLPN 100862211.012
LLPN 100882312.012
LLPN 10010102312.014
LLPN 10012122311.017
LPN 315662410.012
LPN 315862511.014
LPN 315882511.014
LPN 3151062612.017
LPN 3151082612.017
LPN 31510102713.017
LPN 3151262713.019
LPN 3151282713.019
LPN 31512102814.019
LPN 31512122814.019
LPN 3151562814.024
LPN 3151582814.024
LPN 31515102915.024
LPN 31515122915.024
LPN 31515153016.024
LPN 3151862914.527
LPN 3151882914.527
LPN 31518103015.527
LPN 31518123015.527
IdentificationSeriesWorking pressure barØ d1 mmØ d2 mmL1 mmL2 mmSW mm
LPN 31518153116.527
LPN 31518183116.027
LPN 1602283116.532
LPN 16022103217.532
LPN 16022123217.532
LPN 16022153318.532
LPN 16022183318.032
LPN 16022223520.032
LPN 1602883318.541
LPN 16028103419.541
LPN 16028123419.541
LPN 16028153520.541
LPN 16028183520.041
LPN 16028223722.041
LPN 16028283621.041
LPN 16035223921.046
LPN 16035283921.046
LPN 16035354120.046
LPN 16042284122.555
LPN 16042354321.555
LPN 16042426621.055
L / SPN 31518163317.027
SPN 630663016.014
SPN 630863218.017
SPN 630883218.017
SPN 6301063217.519
SPN 6301083217.519
SPN 63010103217.019
SPN 6301263419.522
SPN 6301283419.522
SPN 63012103419.022
SPN 63012123419.022
SPN 6301463621.024
SPN 6301483621.024
SPN 63014103620.524
SPN 63014123620.524
SPN 63014143822.024
SPN 4001663620.527
SPN 4001683620.527
SPN 40016103620.027
SPN 40016123620.027
SPN 40016143821.527
SPN 40016163821.027
IdentificationSeriesWorking pressure barØ d1 mmØ d2 mmL1 mmL2 mmSW mm
SPN 40020104022.032
SPN 40020124022.032
SPN 40020144223.532
SPN 40020164223.032
SPN 40020204423.032
SPN 40025164625.541
SPN 40025204825.541
SPN 40025255026.041
SPN 40030164826.046
SPN 40030205026.046
SPN 40030255226.546
SPN 40030305427.046
SPN 31538165328.555
SPN 31538255729.055
SPN 31538305929.555
SPN 31538386129.055
S / LPN 40016153620.527
S / LPN 40020154022.532
S / LPN 40020184022.032
S / LPN 40025224626.541

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter

Product Version: Stainless Steel (SS)

The details

Connection 1
Metric cylindrical outer thread
Sealing form 1
24° inner cone
Connection 2
Metric cylindrical outer thread
Sealing form 2
24° inner cone
Design
Fitting
Construction
Straight
Standard
ISO 8434-1
Included in scope of supply
Socket (without union nut and cutting ring)
Material
Steel
Surface
MotusCoat™

Downloads

Metric Male Union (G) data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
