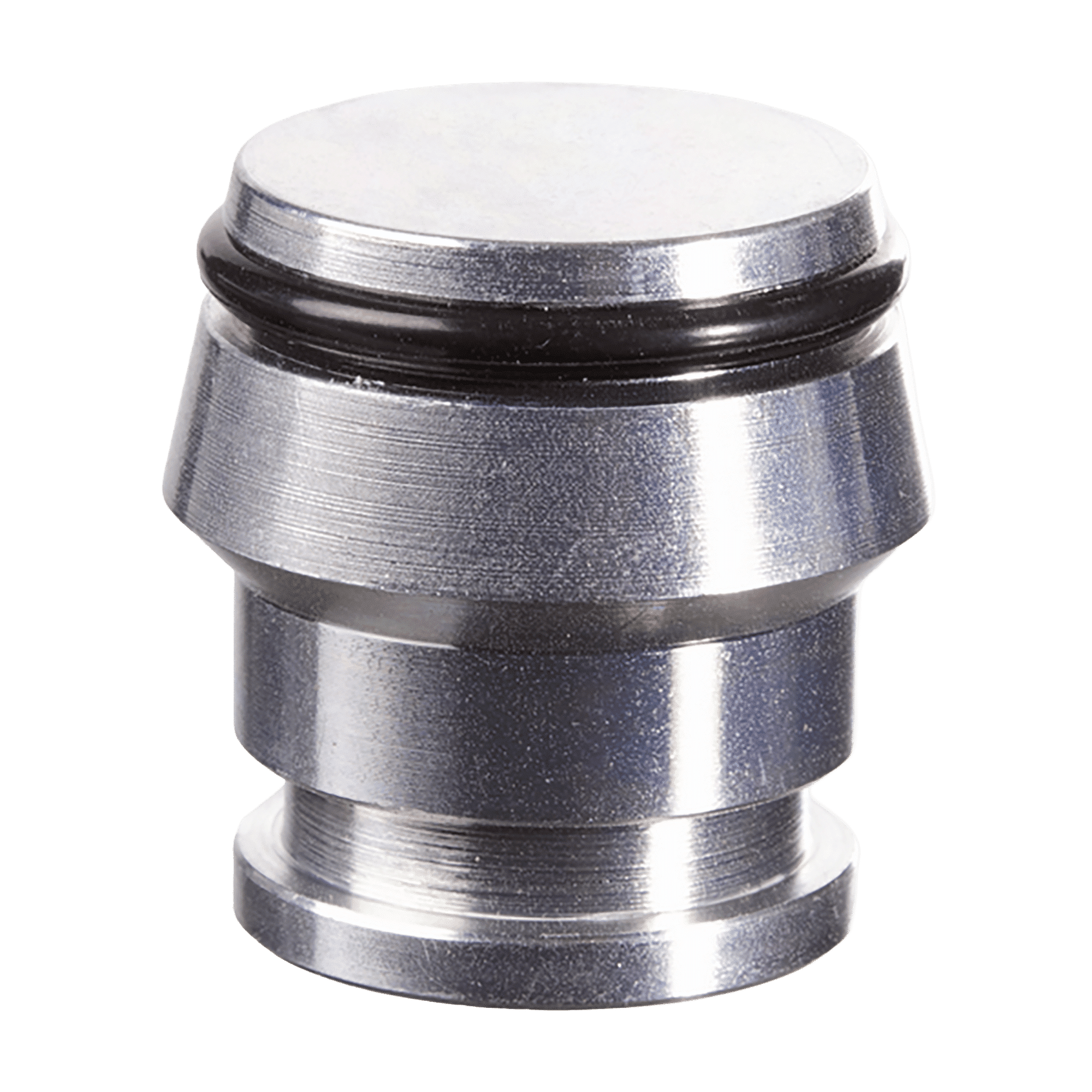

Lock without union nut. Straight. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 16 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d1 mm | Ø d2 mm | L1 mm | OR |
|---|---|---|---|---|---|---|
| L | PN 315 | 6.6 | 6 | 18.5 | 4.0 x 1.5 | |
| L | PN 315 | 8.5 | 8 | 18.0 | 6.0 x 1.5 | |
| L | PN 315 | 10.6 | 10 | 19.5 | 7.5 x 1.5 | |
| L | PN 315 | 12.6 | 12 | 19.0 | 9.0 x 1.5 | |
| L | PN 315 | 15.5 | 15 | 19.0 | 12.0 x 2.0 | |
| L | PN 315 | 18.6 | 18 | 22.0 | 15.0 x 2.0 | |
| L | PN 160 | 22.6 | 22 | 22.0 | 20.0 x 2.0 | |
| L | PN 160 | 28.5 | 28 | 23.5 | 26.0 x 2.0 | |
| L | PN 160 | 36.0 | 35 | 27.0 | 32.0 x 2.5 | |
| L | PN 160 | 43.0 | 42 | 27.5 | 38.0 x 2.5 | |
| S | PN 630 | 14.5 | 14 | 21.0 | 10.0 x 2.0 | |
| S | PN 400 | 16.5 | 16 | 22.0 | 12.0 x 2.0 | |
| S | PN 400 | 20.9 | 20 | 26.5 | 16.3 x 2.4 | |
| S | PN 400 | 25.9 | 25 | 27.5 | 20.3 x 2.4 | |
| S | PN 400 | 31.0 | 30 | 28.5 | 25.3 x 2.4 | |
| S | PN 315 | 39.0 | 38 | 32.5 | 33.3 x 2.4 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø = External pipe diameter Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
